Impulse Current Generator S16C4000

Model：S16C4000

The impulse current simulator S16C4000 is designed as per IEC 61643-11 and GB/T 18802.11, which is capable of generating 8/20 μs short-circuit current waveform with maximum current 40 kA.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

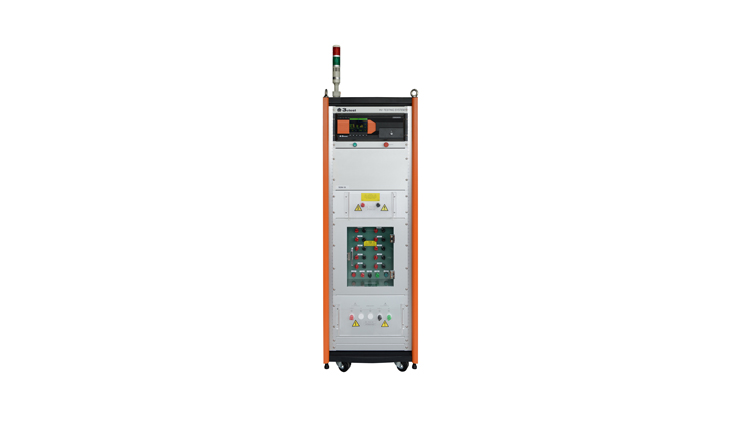

The impulse current simulator S16C4000 is designed as per IEC 61643-11 and GB/T 18802.11, which is capable of generating 8/20 μs short-circuit current waveform with maximum current 40 kA. Equipped with coupling/decoupling network and ten-way distribution networks SPN 10, up to ten EUTs can be tested under active or passive mode. Together with MAS 3000, the waveform data can be measured and analyzed professionally. With features of easy-to- operate and of highly reliability, S16C4000 is your best choice for impulse current simulator.

Features:

  • 5.7” Color touch screen;
  • Max. test current 40 kA;
  • Equipped with MAS 3000, waveform measurement and analysis can be realized;
  • Ten-way distribution networks are available for customization;

Standard

  • IEC 61643-11
  • GB/T 18802.11

Specifications

Technical Parameters
Test Current 0.5 kA ~ 40 kA
Current Waveform Rise time: 8 μs, ±10%

Duration: 20 μs, ±10%
Polarity Positive/ negative/ alternative
Source Output Impedance 0.4 Ω
Repetition Rate (single pulse time) 11 s ~ 99 s (The minimum time is subjected to test voltage)
Counter 1~999
Phase Sync. 0° ~ 360°（45 Hz ~ 65 Hz）
Trigger Mode Manual, Auto, External Trigger
General parameters
Display Screen 5.7 inch TFT touch screen
Working Power AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China)
Fuse 10 A
Maximum Power Consumption 300 W
Communication Methods Ethernet LAN, RJ45
External Control Mode 25-pin parallel port cable
External Trigger Input BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed.
Running Control Input BNC, 5 V TTL
Failure Detection The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.
Working Status Indication LED indication and LCD display on front panel
Earthing Mode Flat earth line
EUT Power Injection Line φ4 mm or φ6 mm banana plug
Dimension 35U
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86kPa – 106kPa
