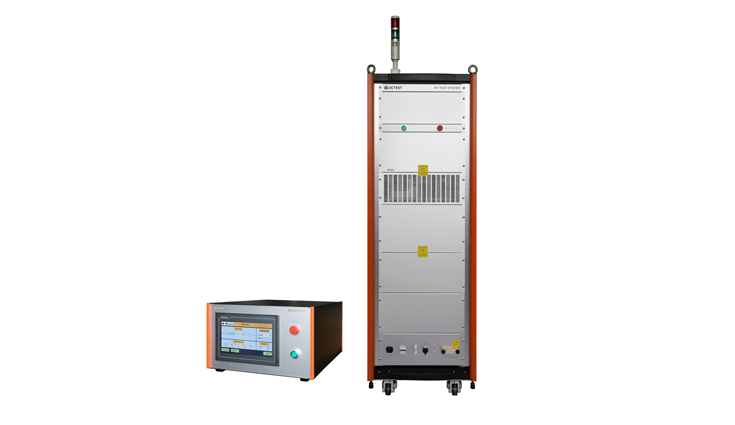

The impulse current testing system consists of a control box MCS2000-6U and a simulator S12A500. It can output a 10/350 μ s pulse current waveform with a maximum output current of 5000A.
| Technical Parameters | |
|---|---|
| Test Current Range | 100 A – 5000 A (± 10%) |
| Current Waveform |
Wavefront time: 10 μs± 20%
Half peak time: 350 μs ± 20% The wavefront time is defined as 0% -90% Half peak time is defined as 0% -50% |
| Polarity | Positive |
| Source Output Impedance | 2.5 Ω |
| General parameters | |
| Display Screen | 10 inches color screen |
| Working Power supply range | AC 220V， ± 10%, 50/60 Hz ± 5%
(Domestic default AC 220 V 50 Hz) |
| Fuse | 6A (MCS2000-6U)/10A (S12A500) |
| Maximum Power Consumption | 1500 W |
| Pulse Triggering Method | Automatic |
| Grounded Port | Using a flat grounding wire |
| Chassis size | 6U L * W * H: 550 * 280 * 450 (MCS2000-6U)
35U L * W * H: 800 * 600 * 1850 mm (S12A500) |
| Instrument weight | Approximately 15 kg (MCS2000-6U)
Approximately 300 kg (S12A500) |
| Environmental scope | 15-35℃ |
| Relative Humidity | 45% – 75% |
| Atmospheric Pressure | 86kPa – 106kPa |
