Introduction:

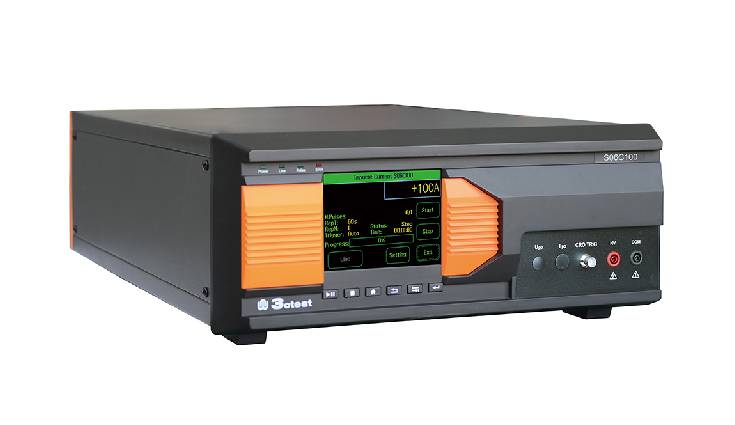

S06C100 is a new type of impulse current simulator developed according to the requirements of IEC 61643-11 and GB/T 18802.11 standards. It can output 8/20 μs pulse current waveform with a maximum output current of 1 kA.
| General Parameters | |
|---|---|
| Display | 5.7-inch TFT touch screen |
| Scope of Working Power Supply | AC 220 V, ±10%, 50 Hz ±5% |
| Fuse | 6A |
| Maximum Power Consumption | 300 W |
| Communication Method | Ethernet LAN |
| External Trigger Input | BNC, 5V TTL |
| CRO Triggers Output | BNC, 5V TTL |
| Operation Control Input | BNC, 5V TTL |
| Instrument Grounding Connection Method | Use a flat grounding wire |
| Chassis Size | 4U (L x W x H): 620 x 450 x 190 mm |
| Instrument Weight | About 19 kg |
| Environmental Scope | 15 ℃ ~ 35 ℃ |
| Pressure Range | 86 kPa ~ 106 kPa |
| Humidity Range | 45% ~ 75% |
| Technical Parameters | |
| Test Current Range | 0.5 A ~ 1000 A (±10% ±0.5 A) |
| Current Wavefront Time | 8 μs ± 10%, wavefront time definition: 1.25 * (10% ~ 90%) |
| Half Peak Time of Current | 20 μs ± 10%, definition of half peak time: 1.18 * (50% ~ 50%) |
| Output Polarity | Positive, negative, first positive and then negative |
| Charging Voltage | < 600 V |
| Test Interval | 5 s ~ 180 s (the shortest time depends on the test voltage) |
| Test Frequency | 1 ~ 10000 |
| Pulse Triggering Method | Manual, automatic, externally triggered |
