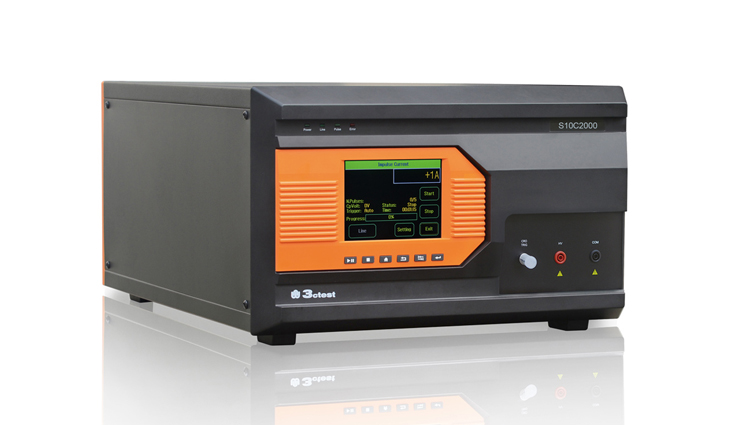

Impulse Current Simulator S10C series

Model：S10C series

The impulse current simulator S10C series is designed as per IEC 61643-11 and GB/T 18802.11.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The impulse current simulator S10C series is designed as per IEC 61643-11 and GB/T 18802.11, which is capable of generating 8/20 μs short-circuit current waveform with maximum voltage 10 kV and current 80 kA and features with easy-to-operate and highly reliability. Equipped with coupling/decoupling network and ten-way distribution networks SPN 10, up to ten EUTs can be tested under active or passive mode. Together with MAS 3000, the waveform data can be measured and analyzed professionally.

Features:

  • 5.7” Color touch screen.
  • Max. test current 80 kA.
  • Equipped with MAS 3000, waveform measurement and analysis can be realized.
  • Ten-way distribution networks are available for customization.
  • Support customization for specific requirement.

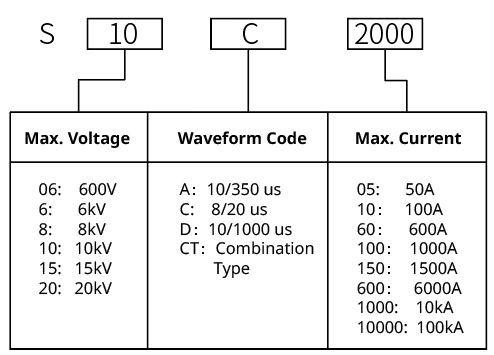

Naming Rule

*Offer customized product according to customer’s requirement.

Standard

  • IEC 61643-1
  • GB/T 18802.11

Specifications

Technical Parameters-S10C2000
Test Current 1 kA ~ 20 kA, ±10%
Charging Voltage 0.5 kV ~ 10
Current Waveform Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%
Polarity Positive/ negative/ alternative
Source Output Impedance 0.5 Ω
Repetition Rate (single pulse time) 5 s ~ 1000 s (The minimum time is subjected to test voltage)
Counter 1~10000
Phase Sync. 0° ~ 360°（45 Hz ~ 65 Hz）
Pulse Current Monitor BNC output, 500 A: 1 V
Trigger Mode Manual, Auto, External Trigger
Dimension 19” / 6U
Weight Approx. 50 kg
Technical Parameters-S10C4000
Test Current 2 kA ~ 40 kA, ±10%
Charging voltage 0.5 kV ~ 10
Current Waveform Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%
Polarity Positive/ negative/ alternative
Source Output Impedance 0.25 Ω
Repetition Rate (single pulse time) 5 s ~ 1000 s (The minimum time is subjected to test voltage)
Counter 1~10000
Phase Sync. 0° ~ 360°（45 Hz ~ 65 Hz）
Pulse Current Monitor BNC output, 500 A: 1 V
Trigger Mode Manual, Auto, External Trigger
Dimension 19” / 6U*2
Weight Approx. 100 kg
Technical Parameters-S10C6000
Test Current 3 kA ~ 60 kA, ±10%
Charging voltage 0.5 kV ~ 10
Current Waveform Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%
Polarity Positive/ negative/ alternative
Source Output Impedance 0.166 Ω
Repetition Rate (single pulse time) 5 s ~ 1000 s (The minimum time is subjected to test voltage)
Counter 1~10000
Phase Sync. 0° ~ 360°（45 Hz ~ 65 Hz）
Pulse Current Monitor External, optional
Trigger Mode Manual, Auto, External Trigger
Dimension 19” / 35U
Weight Approx. 150 kg
Technical Parameters-S10C8000
Test Current 4 kA ~ 80 kA, ±10%
Charging voltage 0.5 kV ~ 10
Current Waveform Rise time (1.25* Tr): 8 μs, ±10%

Duration (1.18*Tw): 20 μs, ±10%
Polarity Positive/ negative/ alternative
Source Output Impedance 0.166 Ω
Repetition Rate (single pulse time) 5 s ~ 1000 s (The minimum time is subjected to test voltage)
Counter 1~10000
Phase Sync. 0° ~ 360°（45 Hz ~ 65 Hz）
Pulse Current Monitor External, optional
Trigger Mode Manual, Auto, External Trigger
Dimension 19” / 35U
Weight Approx. 200 kg
General parameters
Display Screen 5.7 inch TFT touch screen
Working Power AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China)
Fuse 6 A
Maximum Power Consumption 500 W
Communication Methods Ethernet LAN, RJ45
External Control Mode 25-pin parallel port cable
External Trigger Input BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed.
Running Control Input BNC, 5 V TTL
Failure Detection The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.
Working Status Indication LED indication and LCD display on front panel
Earthing Mode Flat earth line
Monitor Output Mode Standard 1 m coaxial cable
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86kPa – 106kPa
