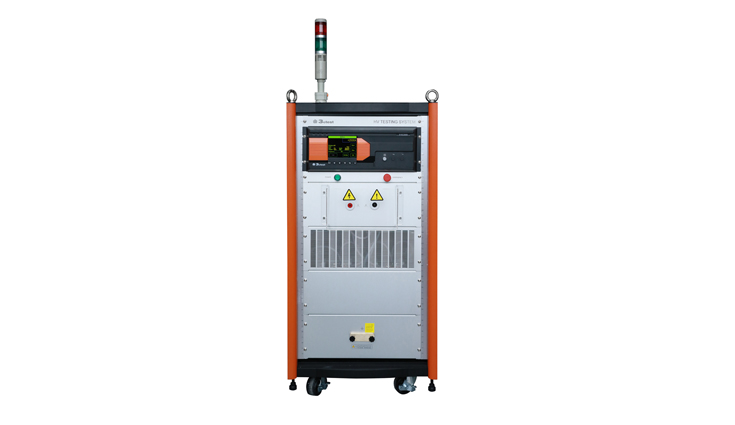

The S15C series is a new type of impulse current simulator developed based on standards. It can output 8/20 μs pulse current waveform, with a maximum output current of 40 kA.
Naming rules：
*Customizable according to customer needs
| Technical Parameters | |
|---|---|
| Test Current Range | 0.5 kA – 40 kA (± 10%) |
| Charging Voltage | ≤15 kV |
| Current Waveform | Wavefront time: 8 μs ± 10%
Half peak time: 20 μs ± 10% The wavefront time is defined as 1.25 * (10% -90%) The half peak time is defined as 1.18 * (50% -50%) |
| Polarity | Positive, negative, first positive and then negative |
| Source Output Impedance | ≤0.75 Ω(20 kA)
≤0.5 Ω(30 kA) ≤0.4 Ω(40 kA) |
| Repetition Rate (single pulse time) | 11 s – 99 s (the shortest time depends on the test current value) |
| Number of Rials | 1 – 999 |
| Trigger Method | Manual, automatic, external triggering |
| General parameters | |
| Display Screen | 5.7 inch TFT touch screen |
| Working Power supply range | AC 220V， ± 10%, 50/60 Hz ± 5%
(Domestic default AC 220 V 50 Hz) |
| Fuse | 10 A |
| Maximum Power Consumption | 1500 W |
| Communication Methods | Ethernet LAN |
| External Control Methods | 25 pin parallel thread |
| External Trigger Input | BNC, 5 V TTL |
| Operation Control Input | BNC, 5 V TTL |
| Instrument Grounding Connection Method | Using a flat grounding wire |
| Chassis Size | 22U cabinet (600mm * 800mm * 1250mm) |
| Instrument Weight | Approximately 162 kg |
| Environmental scope | 15-35℃ |
| Relative Humidity | 45% – 75% |
| Atmospheric Pressure | 86kPa – 106kPa |
Model：S30C series
The impulse current simulator S30C series is designed as per IEC 61643-11 and GB/T 18802.11, which is capable of generating 8/20 μs short-circuit current waveform.
Model：S30C series
The impulse current simulator S30C series is designed as per
...
Model：S20D series
The impulse current simulator S20D series is designed as per IEC 61643-11, GB/T 18802.11 and IEC 61312-1, which is capable of generating 10/1000 μs short-circuit current waveform.
Model：S20D series
The impulse current simulator S20D series is designed as per
...
Model：S16C4000
The impulse current simulator S16C4000 is designed as per IEC 61643-11 and GB/T 18802.11, which is capable of generating 8/20 μs short-circuit current waveform with maximum current 40 kA.
Model：S16C4000
The impulse current simulator S16C4000 is designed as per IEC 6
...
Model：S5D60
S5D60 is a new type of impulse current simulator developed according to the requirements of IEC 61643-11 and GB/T 18802.11 standards. It can output 10/1000 μs pulse current waveform with a maximum output current of 600 A.
Model：S5D60
S5D60 is a new type of impulse current simulator developed accordi
...
