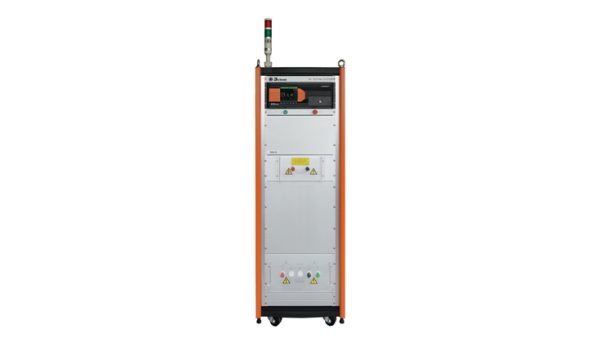

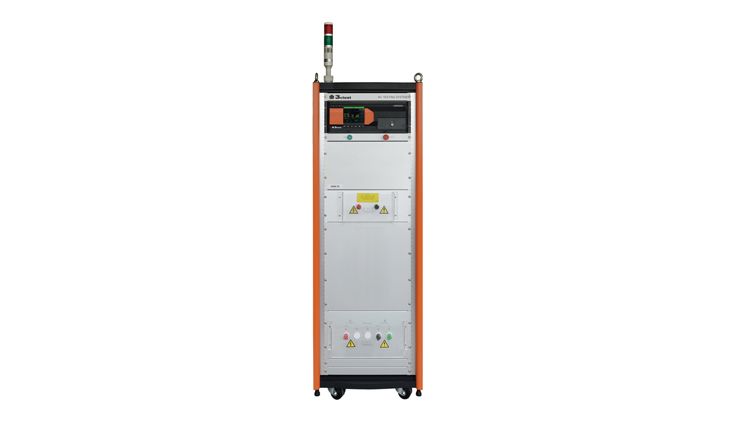

Impulse Current Simulator S20D series

Model：S20D series

The impulse current simulator S20D series is designed as per IEC 61643-11, GB/T 18802.11 and IEC 61312-1, which is capable of generating 10/1000 μs short-circuit current waveform.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The impulse current simulator S20D series is designed as per IEC 61643-11, GB/T 18802.11 and IEC 61312-1, which is capable of generating 10/1000 μs short-circuit current waveform with maximum voltage 20 kV and current 2 kA and features with easy-to-operate and highly reliability. Equipped with coupling/decoupling network and ten-way distribution networks SPN 10, up to ten EUTs can be tested under active or passive mode. Together with MAS 3000, the waveform data can be measured and analyzed professionally.

Features:

  • 5.7” Color touch screen;
  • Max. test current 2 kA;
  • Equipped with MAS 3000, waveform measurement and analysis can be realized;
  • Ten-way distribution networks are available for customization;
  • Support customization for specific requirement;

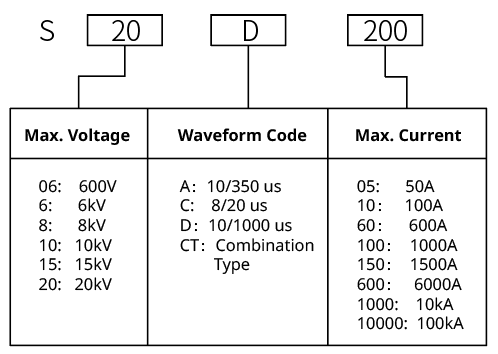

Naming Rule

*Offer customized product according to customer’s requirement.

Standard

  • GB/T 18802.11
  • IEC 61643-11
  • IEC 61312-1

Specifications

Technical Parameters-S20D200
Test Current 100 A ~ 2000 A, ±10%
Charging Voltage 1 kV ~ 20 kV
Current Waveform Rise time (10% ~ 90%): 10 μs ±20%

Duration (50% ~ 50%): 1000 μs ±20%
Polarity Positive/ negative/ alternative
Source Output Impedance 10 Ω
Repetition Rate (single pulse time) 5 s ~ 1000 s (The minimum time is subjected to test voltage)
Counter 1~10000
Trigger Method Manual, automatic, external triggering
Phase Sync. 0° ~ 360°（45 Hz ~ 65 Hz）
Pulse Current Monitor External, optional
Trigger Mode Manual, Auto, External Trigger
Dimension 19” / 35U
Weight Approx. 200 kg
General parameters
Display Screen 5.7 inch TFT touch screen
Working Power supply range AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China)
Fuse 6 A
Maximum Power Consumption 500 W
Communication Methods Ethernet LAN, RJ45
External Control Mode 25-pin parallel port cable
External Trigger Input BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed.
Running Control Input BNC, 5 V TTL
Failure Detection The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.
Working Status Indication LED indication and LCD display on front panel
Earthing Mode Flat earth line
Monitor Output Mode Standard 1 m coaxial cable
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86kPa – 106kPa

Downloads

Adobe PDF

Impulse Current Simulator S20D series Datasheet

Language: English
