Introduction:

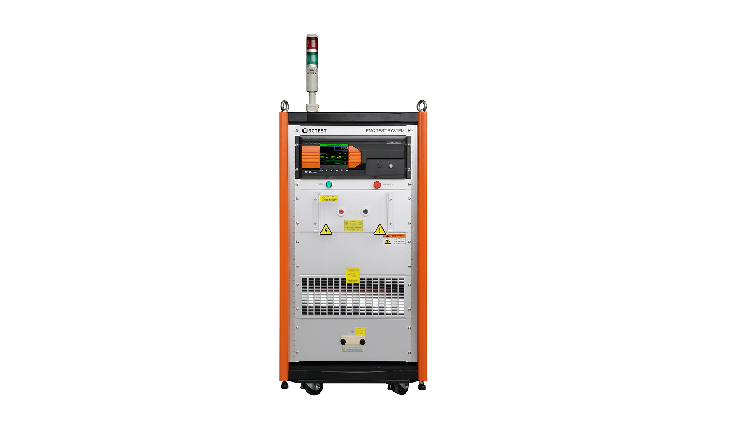

The S5A250 is a new type of surge current simulator developed based on the standard IEC 61643-11. It can output a 10/350 μ s pulse current waveform with a maximum output current of 2600A.
| Technical Parameters | |
|---|---|
| Test Current Range | 100 A–2600 A, ±10% |
| Current Waveform | Wavefront time: 10 μs ± 10% Half peak time: 350 μs ± 10% The wavefront time is defined as 1.25 * rise time (10% -90%) Half peak time is defined as: 50% -50% |
| Output Polarity | Positive, Negative, Positive first and then negative |
| Pulse Period | 5 s-180 s |
| Times of Test | 1–10000 times |
| Trigger Mode | Manual, Auto, External Trigger |
| External Trigger Input | BNC, 5V TTL |
| CRO Triggers Output | BNC, 5V TTL |
| Operation Control | BNC, 5V TTL |
| Input | AC 220 V, ±10%, 50 Hz (±5%) |
| Working Power | Ethernet, RJ45 |
| Communication Mode | D-sub 25p |
| Auxiliary Interface | Stop working when the safety loop is not closed |
| General Parameters | |
| Display Screen | 5.7-inch color touch screen |
| Working Power | AC 220 V, ±10%, 50 Hz (±5%) |
| Fuse | 6A |
| Max Power | 200 W |
| Dimension | 600*800*1250mm (22U Cabinets) |
| Weight | Approx 175 kg |
| Ambient Temperature | 15° ~35° |
| Relative Humidity | 45%~75% |
| Atmospheric Pressure | 86 kPa~106 kPa |
Model：LSG 4606
When an aircraft is flying in severe convection environment, it will be frequently affected by lightning stroke, which will generate transient induced current on circuits.
Model：LSG 4606
When an aircraft is flying in severe convection environment, it
...
Model：S12A500 / MCS2000-6U
The impulse current testing system consists of a control box MCS2000-6U and a simulator S12A500. It can output a 10/350 μ s pulse current waveform with a maximum output current of 5000A.
Model：S12A500 / MCS2000-6U
The impulse current testing system consists of a co
...
Model：CPN 10050T30
CPN 10050T30 high voltage and high-power impulse current coupling/decoupling network, paired with host S15C3000 for 8/20 μ s current waveform testing.
Model：CPN 10050T30
CPN 10050T30 high voltage and high-power impulse current co
...
Model：S20C series
The impulse current simulator S20C series is designed as per IEC 61643-11 and GB/T 18802.11, which is capable of generating 8/20 μs short-circuit current waveform.
Model：S20C series
The impulse current simulator S20C series is designed as per
...
