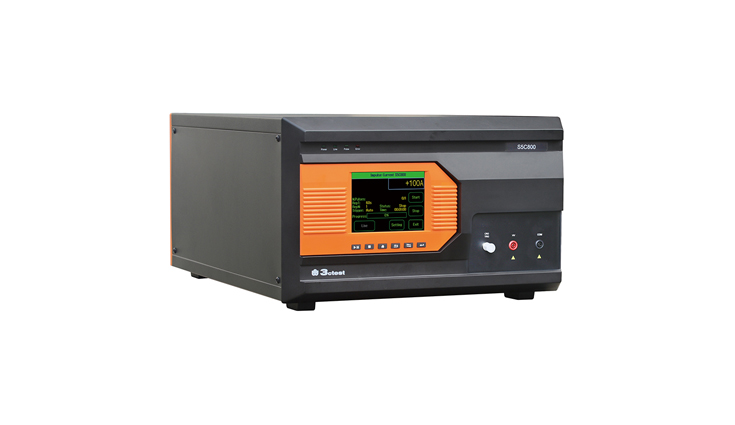

S5C800 is a new type of impulse current simulator developed according to the requirements of IEC 61643-11 and GB/T 18802.11 standards. It can output 8/20 μs pulse current waveform with a maximum output current of 8 kA.
| Technical Parameters | |
|---|---|
| Test Current Range | 20 A ~ 8000 A（±10% ±1 A） |
| Current Wavefront Time | 8 μs ± 10%, wavefront time definition: 1.25 * (10%~90%) |
| Half Peak Time of Current | 20 μs ± 10%, definition of half peak time: 1.18 * (50%~50%) |
| Equivalent Output Impedance | 14.5 Ω（20 A≤I＜200 A）
0.5 Ω（200 A≤I≤8000 A） |
| Output Polarity | Positive, negative, first positive and then negative |
| Charging Voltage | Up to 5 kV |
| Test Interval | 5 s~180 s (the shortest time depends on the test voltage) |
| Test Frequency | 1 ~ 10000 |
| Pulse Triggering Method | Manual, automatic, externally triggered |
| General Parameters | |
| Display | 5.7-inch TFT touch screen |
| Scope of Working Power Supply | AC 220 V， ± 10%, 50 Hz ± 5% |
| Fuse | 6 A |
| Maximum Power Consumption | 300 W |
| Communication Method | Ethernet LAN |
| External Trigger Input | BNC, 5V TTL |
| CRO Triggers Output | BNC, 5V TTL |
| Operation Control Input | BNC, 5V TTL |
| Instrument Grounding
Connection Method |
Use a flat grounding wire |
| Chassis Size | 6U L * W * H: 620 * 450 * 280 mm |
| Instrument Weight | About 30kg |
| Environmental Scope | 15 ℃ ~ 35℃ |
| Pressure Range | 86 kPa ~ 106 kPa |
| Humidity Range | 45% ~ 75% |
Model：CSG 2050
CSG2050 surge (impulse) current simulator is based on 3ctest third-generation intelligent multiple function comprehensive test simulator.
Model：CSG 2050
CSG2050 surge (impulse) current simulator is based on 3ctest th
...
Model：S5D60
S5D60 is a new type of impulse current simulator developed according to the requirements of IEC 61643-11 and GB/T 18802.11 standards. It can output 10/1000 μs pulse current waveform with a maximum output current of 600 A.
Model：S5D60
S5D60 is a new type of impulse current simulator developed accordi
...
The S15C series is a new type of impulse current simulator developed based on standards. It can output 8/20 μs pulse current waveform, with a maximum output current of 40 kA.
The S15C series is a new type of impulse current simulator developed based on standards. It can outp
...
Model：S12A500 / MCS2000-6U
The impulse current testing system consists of a control box MCS2000-6U and a simulator S12A500. It can output a 10/350 μ s pulse current waveform with a maximum output current of 5000A.
Model：S12A500 / MCS2000-6U
The impulse current testing system consists of a co
...
