Description
S5D60 is a new type of impulse current simulator developed according to the requirements of IEC 61643-11 and GB/T 18802.11 standards. It can output 10/1000 μs pulse current waveform with a maximum output current of 600 A.

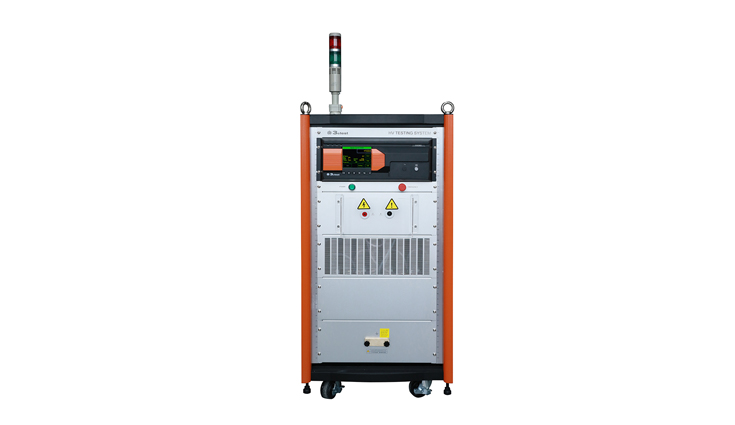

Impulse Current Simulator S5D60
Standard
- IEC 61643-11
- GB/T 18802.11
Specifications
| Technical Parameters | |
|---|---|
| Test Current Range | 0.5 A ~ 600 A（±10% ±0.5 A） |
| Current Wavefront Time | 10 μs ± 20%, wavefront time definition: 1.25 * (10%~90%) |
| Half Peak Time of Current | 1000 μs ± 20%, definition of half peak time: 50%~50% |
| Equivalent Output Impedance | ＜170 Ω（0.5 A≤I≤30 A）
＜0.5 Ω（30 A＜I≤600 A） |
| Output Polarity | Positive, negative, first positive and then negative |
| Charging Voltage | Up to 5.5 kV |
| Test Interval | 5 s~180 s (the shortest time depends on the test voltage) |
| Test Frequency | 1 ~ 10000 |
| Pulse Triggering Method | Manual, automatic, externally triggered |
| General Parameters | |
| Display | 5.7-inch TFT touch screen |
| Scope of Working Power Supply | AC 220 V， ± 10%, 50 Hz ± 5% |
| Fuse | 6 A |
| Maximum Power Consumption | 300 W |
| Communication Method | Ethernet LAN |
| External Trigger Input | BNC, 5V TTL |
| CRO Triggers Output | BNC, 5V TTL |
| Operation Control Input | BNC, 5V TTL |
| Instrument Grounding
Connection Method |
Use a flat grounding wire |
| Chassis Size | 22U L * W * H: 1250 * 800 * 600 mm |
| Instrument Weight | About 160kg |
| Environmental Scope | 15 ℃ ~ 35℃ |
| Pressure Range | 86 kPa ~ 106 kPa |
| Humidity Range | 45% ~ 75% |
