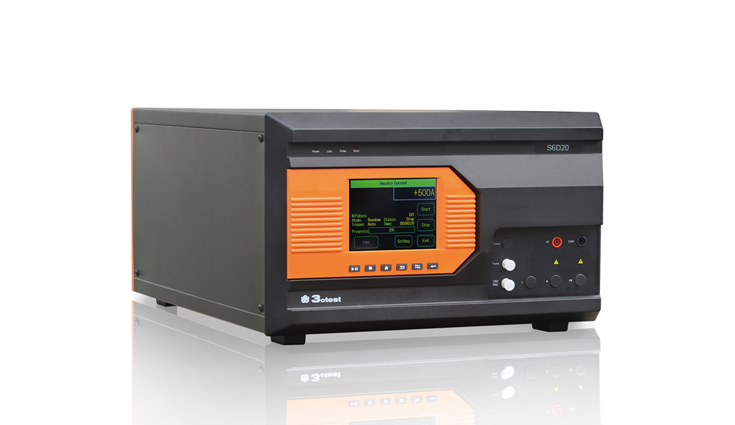

Impulse Current Simulator S6D series

Model：S6D series

The S6D series is a new type of impulse current simulator developed according to IEC 61643-11, GB/T 18802.11 and IEC 61312-1 standards. Can output 10/1000μs current wave, pulse voltage 6 kV.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The S6D series is a new type of impulse current simulator developed according to IEC 61643-11, GB/T 18802.11 and IEC 61312-1 standards. Can output 10/1000μs current wave, pulse voltage 6 kV, pulse current up to 1 kA. The device can be paired with a coupled decoupling network and a ten-channel cyclic distribution network SPN-10, so that up to 10 tested devices can simultaneously perform active or passive impulse current test requirements. The product is equipped with the company’s measurement and analysis software for professional analysis of waveform data. The operation of the equipment is simple and fast, and the reliability is strong.

Features：

  • 5.7 Inch color touch screen.
  • Can cooperate with the company’s measurement and analysis software to analyze the test waveform.
  • It can be equipped with a 10-way circulation distribution network.
  • Can be customized according to customer needs.

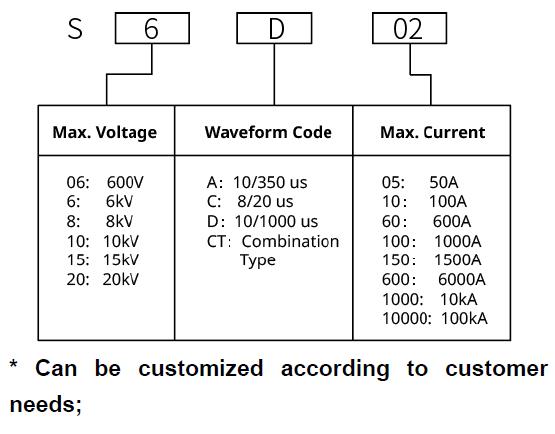

Naming rule：

Standard

  • GB/T 18802.11
  • IEC 61643-11
  • IEC 61312-1

Specifications

Technical Parameters
Model S6D05 S6D60 S6D100
Test Current 1 A ~ 50 A, ±10% 10A ~ 600 A, ±10% 50A ~ 1000 A, ±10%
Charging Voltage Up to 3.5kV Up to 6kV Up to 6kV
Current Waveform Rise time（10% ~ 90%）: 10 μs ± 20%
Duration（50% ~ 50%）: 1000 μs ± 20%
Polarity Positive/ Negative/ Alternative
Source Impedance 50 Ω 10 Ω 6 Ω
Repetition (time for single pulse) 5 s ~ 99 s

(The minimum time is subjected to test voltage)

 5 s ~ 1000s

(The minimum time is subjected to test voltage)

 5 s ~ 1000s

(The minimum time is subjected to test voltage)
Counter 1~ 10000
Pulse Current Monitor External, optional
Trigger Mode Manual, Auto, External Trigger
Dimension 19 Inch /6U 19 Inch /6U 19 Inch /6U
Weight Approx. 50 kg Approx. 150 kg Approx. 180 kg
General parameters
Display Screen 5.7 inch TFT touch screen
Working Power AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China)
Fuse 6 A
Maximum Power Consumption 1000 W
Communication Methods Ethernet LAN, RJ45
External Control Mode 25-pin parallel port cable
External Trigger Input BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed.
Running Control Input BNC, 5 V TTL
Failure Detection The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.
Working Status Indication LED indication and LCD display on front panel
Earthing Mode Flat earth line
Monitor Output Mode Standard 1 m coaxial cable
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86kPa – 106kPa
