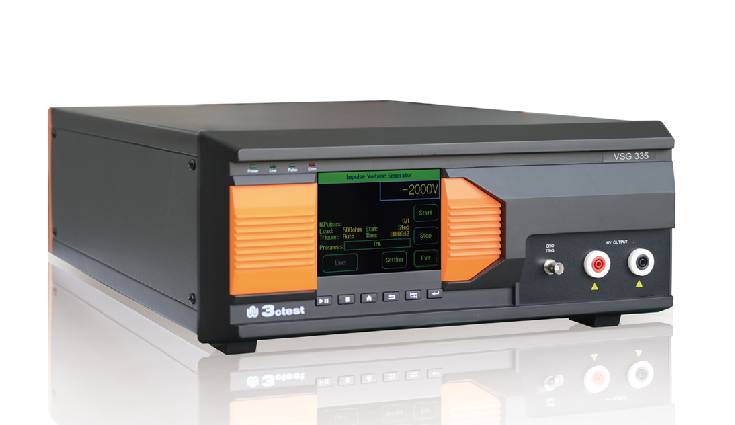

Impulse Voltage Simulator VSG 335 Series

Model：VSG 335

The Impulse Voltage Simulator VSG 335 series are designed on the basis of 3rd-generation control platform and capable of generating 1.2/50 μs impulse according to specific customer requirement.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The VSG 335 series are designed on the basis of 3rd-generation control platform and capable of generating 1.2/50 μs impulse according to specific customer requirement. The devices are applicable to the impulse withstand voltage tests, and used mainly in the dielectric tests and withstand voltage tests conducted on components and units in accordance with standard IEC 61180-1, IEC 61180-2, IEC 60335-1 and GB 4706.1.

Features:

  • 5.7” color touch screen front panel operation.
  • Test voltage reaches up to 30 kV and supports customization.
  • Source output impedance is available for selection.
  • Alarm function for spark-over current.

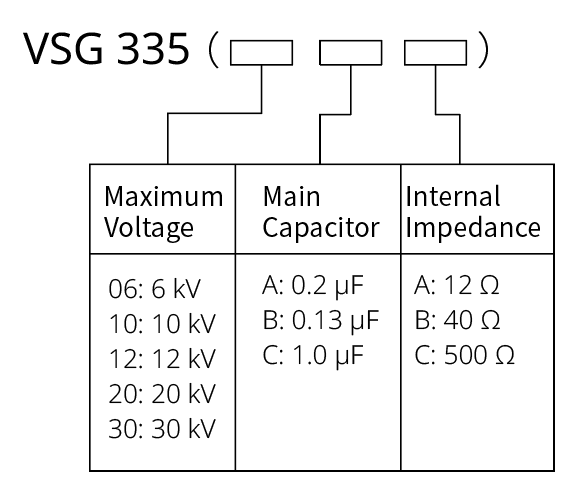

Guide for Model No. Selection

Standard

  • IEC 61180-1
  • IEC 61180-2
  • IEC 60335-1
  • GB 4706.1

Specifications

Technical Parameters
Test Voltage Range
  • 0.5 kV ~ 12 kV, ±10%
  • 1 kV ~ 20 kV, ±10%
  • 3 kV ~ 30 kV, ±10%
Front Time 1.2 μs ±30% (30% ~ 90%) *1.67
Time to half-value 50 μs ±20% (origin ~ 50%)
Internal resistor 12 ohm, 40 ohm, 500 ohm (internal resistor is customizable)
Spark-over Current 100 mA ~ 1200 mA
Output Polarity Positive, negative, first positive and then negative
Impulse Period 5 s ~ 99 s
Number of Tests 1 ~ 10000
Trigger Mode AUTO/Manual/External trigger
General Parameters
Touch Screen 5.7” touch screen
Working Power AC 110 V/220 V ±10%, 50 Hz/60 Hz, ±5% (Default AC 220 V 50 Hz in mainland China)
Fuse 6 A
Max. Power Consumption 200 W
Dimension 19”/ 4U/ 6U
Weight Approx. 20 kg
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86 kPa ~ 106 kPa

Downloads

Adobe PDF

Impulse Voltage Simulator VSG 335 Series Datasheet

Language: English
