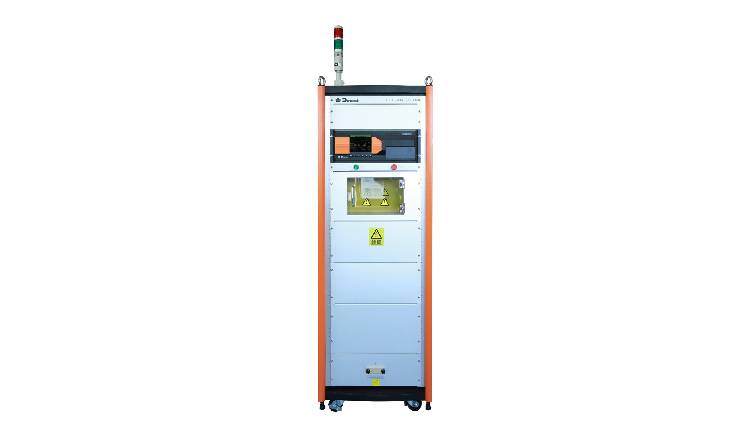

Impulse Voltage Simulator VSG 335(40BC)

Model：VSG 335(40BC)

The VSG 335 voltage surge simulator is based on the company’s third-generation control platform and is customized and developed as 1.2/50 μs according to customer testing needs voltage surge simulator.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The VSG 335 voltage surge simulator is based on the company’s third-generation control platform and is customized and developed as 1.2/50 μs according to customer testing needs voltage surge simulator. This product is suitable for the field of pulse withstand voltage testing, mainly used for surge testing of insulation, withstand voltage and other electrical properties of components and units. It can meet the requirements of IEC 61180-1, IEC 61180-2, IEC 60335-1, GB 4706.1 and other standards, and the output voltage can reach 40KV.

Features：

  • 5.7 color touch screen
  • The maximum test voltage can reach 40 kV (different equipment may vary and can be customized according to customer needs).
  • Multiple output impedance options are available (different devices may vary and can be customized according to customer needs).
  • Test object leakage current breakdown alarm function.
  • Real time display of charging voltage.
  • Inserting peak voltage collection and display function.

Standard

  • IEC 61180-1
  • IEC 61180-2
  • IEC 60335-1
  • GB 4706.1

Specifications

Technical Parameters
Test voltage range 4 kV ~ 40 kV, ±10%
Front time 1.2 μs ±30%
Half peak time 50 μs ±20%
Source output impedance 500 ohm (other impedances can be customized)
Polarity Positive, negative, first positive and then negative
Pulse period 3 s ~ 99 s
Number of tests 1 ~ 10000 times
Trigger Mode Automatic, manual, external triggering
Voltage display Real time display of charging voltage and peak voltage
General Parameters
Display screen 5.7 inch TFT touch screen
Working power supply range AC 110 V/220 V ± 10%, 50 Hz/60 Hz ± 5% (default AC 220 V 50 Hz in mainland China)
Fuse 6 A
Maximum power consumption 600 W
Failure detection When it fails, the front panel LCD displays and interrupts the instrument’s operation
Instrument working status indication Front panel LED indication, LCD display
Instrument grounding connection method Using a flat grounding wire
Chassis size 35U
Instrument weight Approximately 168 kg
Ambient temperature 15 ℃ ~ 35 ℃
Relative humidity 45% ~ 75%
Atmospheric pressure 86 kPa ~ 106 kPa

Downloads

Adobe PDF

Impulse Voltage Simulator VSG 335(40BC) series Datasheet
