Impulse Voltage Simulator VSG 335(XXX)

Model：VSG 335(XXX)

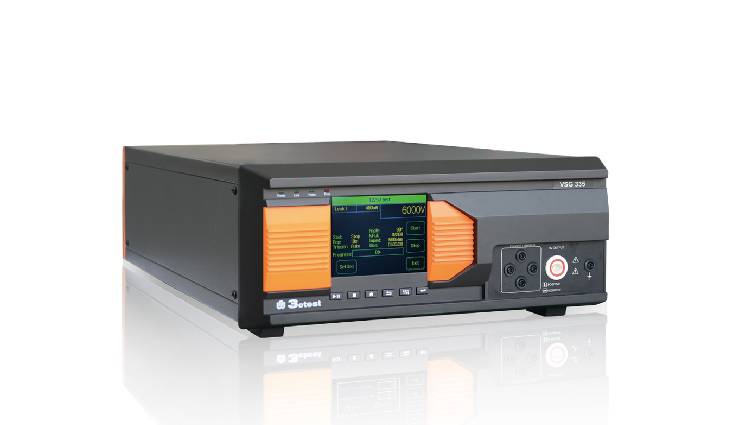

The VSG 335 (XXX) voltage surge simulator is based on the company’s third-generation control platform and is customized and developed as 1.2/50 μs according to customer testing needs voltage surge simulator.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The VSG 335 (XXX) voltage surge simulator is based on the company’s third-generation control platform and is customized and developed as 1.2/50 μs according to customer testing needs voltage surge simulator. This product is suitable for the field of pulse withstand voltage testing, mainly used for surge testing of insulation, withstand voltage and other electrical properties of components and units. It can meet the requirements of IEC 61180-1, IEC 61180-2, IEC 60335-1, GB 4706.1 and other standards.

Features：

  • 5.7 color touch screen
  • The maximum test voltage can reach 30 kV (different equipment may vary and can be customized according to customer needs).
  • Multiple output impedance options are available (different devices may vary and can be customized according to customer needs).
  • Test object leakage current breakdown alarm function.

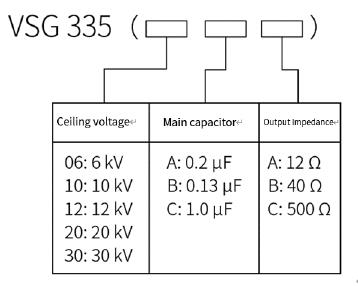

Selection Guide

Standard

  • IEC 61180-1
  • IEC 61180-2
  • IEC 60335-1
  • GB 4706.1

Specifications

VSG 335(20CAC) Technical Parameters
Test voltage range 1 kV ~ 20 kV, ±3%
Front time 1.2 μs ±30%
Half peak time 50 μs ±20%
Source output impedance 12Ω, 500Ω
Test object breakdown leakage current 300 mA ~ 1200 mA
Polarity Positive, negative
Pulse period 5 s ~ 99 s
Number of tests 1 ~ 10000 times
Trigger Mode Automatic, manual, external triggering
VSG 335(30BC) Technical Parameters
Test voltage range 3 kV ~ 30 kV, ±3%
Front time 1.2 μs ±30%
Half peak time 50 μs ±20%
Source output impedance 500Ω
Polarity Positive, negative
Pulse period 5 s ~ 99 s
Number of tests 1 ~ 10000 times
Trigger Mode Automatic, manual, external triggering
General Parameters
Display screen 5.7 inch TFT touch screen
Operating power supply range AC 110 V/220 V ± 10%, 50 Hz/60 Hz ± 5% (default AC 220 V 50 Hz in mainland China)
Fuse 6 A
Maximum power consumption 200 W
Chassis size 19 inch 4U
Instrument weight Approximately 20 kg
Ambient temperature 15 ℃ ~ 35 ℃
Relative humidity 45% ~ 75%
Atmospheric pressure 86 kPa ~ 106 kPa

Downloads

Adobe PDF

Impulse Voltage Simulator VSG 335(XXX) series Datasheet
