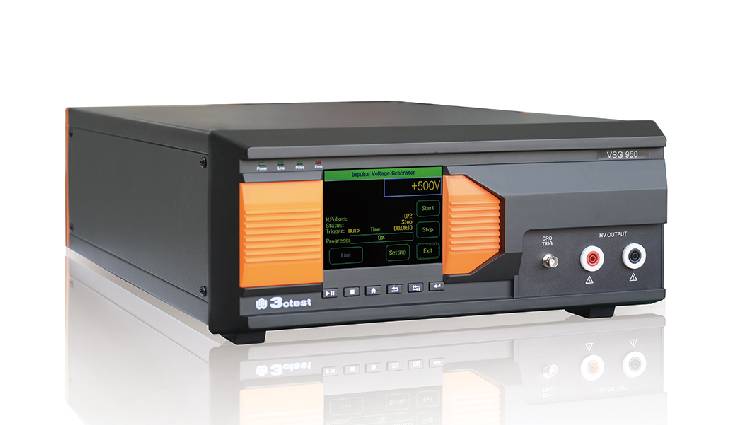

Impulse Voltage (Voltage Surge) Generator VSG 950 Series

Model：VSG 950

The voltage surge simulator series products meet the testing needs of the following products and industries.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The voltage surge simulator series products meet the testing needs of the following products and industries:
1. Test the voltage resistance of components, sockets, plugs, cables, and many other devices;
2. Test the safety of audio, video, and similar electronic devices;
3. Test the instantaneous overvoltage capability of the protective relay;
4. Others.

Features

  • 5.7 inch color touch screen front panel.
  • Test voltage reaches up to 30 kV and supports customization.
  • Built-in warning and control system.
  • EUT breakdown alarming function.
  • Superior quality, ideal substitute for imported similar products.

Standard

  • IEC 60065
  • IEC 60950-1
  • GB 8898

Specifications

Technical Parameters
Test Voltage
  • 0.5 kV ~ 12 kV, ±10%
  • 1 kV ~ 20 kV, ±10%
  • 3 kV ~ 30 kV, ±10%
  • Other voltage range is customized.
Waveform
  • Front time: 1.2 μs ±30% (30% ~ 90%) *1.67
  • Time to half-value: 50 μs ±20% (origin ~ 50%)

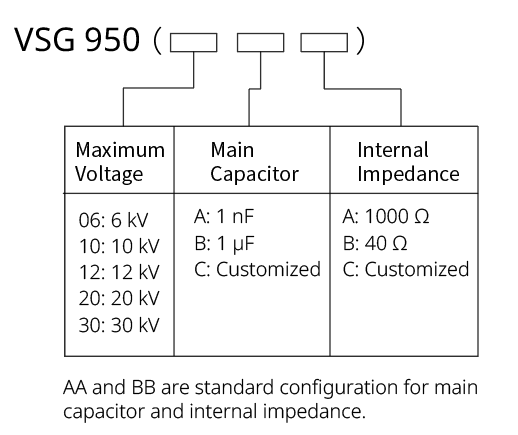

Waveform Shaping Capacitor 1 μF or 1 nF (see selection guide)
Internal Resistance 40 Ω ±10% or 1000 Ω ±10%
EUT Breakdown Alarming Current 300 mA ~ 1,200 mA
Output Polarity Positive, negative, first positive and then negative
Pulse Period 5 s ~ 99 s
Triggering Mode External / automatic / manual
No. Of Pulses 1 ~ 10,000
Note: According to the requirements of IEC 60950, 1 nF/1000 Ω pulse withstand voltage has no wavefront time and half peak time requirements.
General Parameters
Display 5.7 inch TFT touch screen
Power supply AC 110 V / 220 V, 50 / 60 Hz
Fuse 6 A
Max Power 200 W
Operating Temp. 15℃ ~ 35℃
Operating Humidity 45% ~ 75%
Operating Air Pressure 86 kPa ~ 106 kPa
Dimension 19”, 4U/6U
Weight Approx. 30 kg

Downloads

Adobe PDF

Impulse Voltage (Voltage Surge) Generator VSG 950 Series Datasheet

Language: English
