Indirect Lightning Induced Transient

Modelļ¼šLSS 160SM6 & ETS 160MB

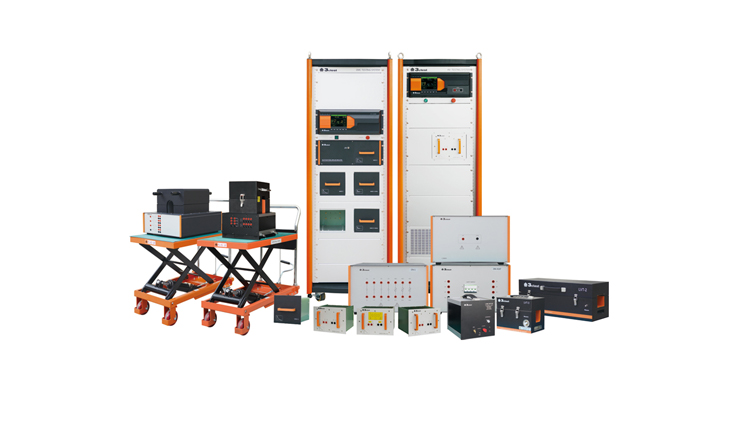

Indirect Lightning Induced Transient Susceptibility Test System LSS 160SM6 & ETS 160MB are designed according to RTCA/DO-160 Section 22, The LSS 160SM6 is capable of generating waveforms 1,4 and 5A/5B, and ETS 160MB is of waveforms 2, 3 and 6.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

When an aircraft is flying in severe convection environment, it will be frequently affected by lightning stroke, which will generate transient induced voltage or current on circuits and cables of airborne equipment, such phenomenon is called indirect lightning effect. It may make the aircraft get out of control, even bring about fuselage fire and other serious accidents. For safety reasons, the airborne equipment must be designed properly and tested completely to ensure the system and equipment with critical safety function to perform normally and its flight security when the aircraft is influenced by lightning stroke.
The LSS 160SM6 and ETS 160MB test systems are designed according to RTCA/DO-160 Section 22, The LSS 160SM6 is capable of generating waveforms 1,4 and 5A/5B, and ETS 160MB is of waveforms 2, 3 and 6. Both test level are from 1 to 5 for pins injection test and cable bundle test; Additionally, the test system is not only meet the test requirement of lightning induced transients conducted susceptibility in MIL-STD-461G CS117, but also the A/B/C/D EUT pulse injection level requirement in GJB 8848: 2016 is satisfied.
The ETS 160MB test system includes various test auxiliary equipment to make it convenient to conduct tests, such as coupling transformer, power blocking device, transient blocking device, pin injection probe, external DC capacitor etc. Whatā€™s more, the Corelab software is also available for test remote control, which makes your test easy and convenient.

Featuresļ¼š

  • Modular design, the waveform module is detachable;
  • Capable of generating 6 kinds of waveforms and performing pins injection test and cable bundle test;
  • 5.7ā€ color touch screen with easy and distinct operation control;
  • Phase synchronization function in signal pins & power pins-direct injection method;
  • Corelab software are available for remote control;

Standard

  • GJB 8848-2016
  • MIL-STD-461G
  • AECTP 250
  • AECTP 500
  • RTCA/DO-160G S22
  • HB 6167.24

Specifications

Technical Parameters for LSS 160SM6
Technical Parametersā€”Current Waveform 1

Cable Bundle Cable Induction
For tests as per DO-160G S22, MIL-STD-461G CS117(WF2/1) etc.
Coupling Mode Cable Induction (CI)
Output Module W1 CI/GI
Current Waveform 1 6.4 Ī¼s Ā± 20 % / 69 Ī¼s Ā± 20 %
Single Stroke Output 50 A ~ 3500 A (-0%~+20%);

Output Impedanceā‰¤0.5 Ī©
Multiple Stroke Output 50 A ~2000 A (-0%~+20%) (first stroke); Output Impedanceā‰¤1 Ī©
25 A ~ 1000 A (-0%~+50%) (subsequent stroke);

Output Impedanceā‰¤1 Ī©
Number of Subsequent Pulses 1 ~ 14 (or 1 ~ 30)
Interval Time of Subsequent Pulses 10 ms ~ 200 ms,

random mode is available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
Coupler LCT- L5
Technical Parametersā€”Current Waveform 1

Cable Bundle Ground Injection
For tests as per DO-160G S22 etc.
Coupling Mode Ground Injection (GI)
Output Module W1 CI/GI
Current Waveform 1 6.4 Ī¼s Ā± 20 % / 69 Ī¼s Ā± 20 %
Single Stroke Output 50 A ~ 3500 A (-0%~+20%);

Output Impedanceā‰¤0.5 Ī©
Multiple Stroke Output 50 A ~ 2000 A (-0%~+20%) (first stroke); Output Impedanceā‰¤1 Ī©
25 A ~ 1000 A (-0%~+50%) (subsequent stroke);

Output Impedanceā‰¤1 Ī©
The Number of Subsequent pulses 1 ~ 14 (or 1 ~ 30)
Interval Time of Subsequent Pulses 10 ms ~ 200 ms,

random mode is available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
Maximum EUT Power Supply AC 230 V / 32 A 50/60 Hz;

DC 230 V/32 A
Coupler LCT- L5
Technical Parametersā€”Voltage Waveform 4

Signal Pins & Power Pins Direct Injection
For tests as per DO-160G S22 etc.
Coupling Mode Pins Direct Injection (PDI)
Output Module W4 PI
Output Impedance 5 Ī© Ā± 10 %
Voltage/Current Waveform 4 6.4 Ī¼s Ā± 20 % / 69 Ī¼s Ā± 20 %
Output Voltage 50 V ~ 3400 V (-0%~+10%), (open circuit)
Output Current 10 A ~ 680 A (-0%~+10%),

(short circuit)
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s (shortest time depends on output amplitude)
EUT Power Supply Max. 230 V
EUT Frequency Max. 800 Hz
Power Blocking Device Greater than peak value of signal or power voltage (optional)
Technical Parametersā€”Voltage Waveform 4

Cable Bundle Ground Injection
For tests as per DO-160G S22
Coupling Mode Ground Injection (GI)
Output Module W4 CI/GI
Voltage Waveform 4 6.4 Ī¼s Ā± 20 % / 69 Ī¼s Ā± 20 %
Single Stroke Output 50 V ~ 3400 V (-0%~+20%);

Output Impedanceā‰„0.5 Ī©
Multiple Stroke Output 25 V ~ 1000 V (-0%~+20%) (first stroke);

Output Impedanceā‰„0.5 Ī©
10 V ~ 500 V (-0%~+50%) (subsequent stroke);

Output Impedanceā‰„0.5 Ī©
Number of Subsequent pulses 1 ~ 14 (or 1 ~ 30)
Interval Time of Subsequent Pulses 10 ms ~ 200 ms,

random mode is also available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
EUT Power Supply Max. AC 230 V / 32 A 50/60 Hz;

DC 230 V/32 A
Coupler LVT-1
Technical Parametersā€”Voltage Waveform 4

Cable Bundle Cable Injection
For tests as per DO-160G S22, etc.
Coupling Mode Cable Induction (CI)
Output Module W4 CI/GI
Voltage Waveform 4 6.4 Ī¼s Ā± 20 % / 69 Ī¼s Ā± 20 %
Single Stroke Output 50 V ~ 3400 V (-0%~+20%);

Output Impedanceā‰„0.5 Ī©
Multiple Stroke Output 25 V ~ 1000 V (-0%~+20%) (first stroke);

Output Impedanceā‰„0.5 Ī©
10 V ~ 500 V (-0%~+50%) (subsequent stroke);

Output Impedanceā‰„0.5 Ī©
Number of Subsequent pulses 1 ~ 14(or 1 ~ 30)
Interval Time of Subsequent Pulses 10 ms ~ 200 ms,

random mode is also available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
Coupler LVT-1
Technical Parametersā€”Voltage Waveform 5A

Signal Pins & Power Pins Direct Injection
For tests as per DO-160G S22
Coupling Mode Pins Direct Injectionļ¼ˆPDI)
Output Module W5A PI
Output Impedance 1 Ī© Ā± 10 %
Voltage/

Current Waveform 5A

 40 Ī¼s Ā± 20 % / 120 Ī¼s Ā± 20 %
Output Voltage 50 V ~ 3200 V (-0%~+10%) ļ¼ˆopen circuitļ¼‰
Output Current 50 A ~ 3200 A (-0%~+10%) ļ¼ˆshort circuitļ¼‰
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s (shortest time depends on output amplitude)
EUT Power Supply Max. 230 V
EUT Power Frequency Max. 800 Hz
Power Blocking Device Greater than peak value of signal or power voltage (optional)
Technical Parametersā€”Current Waveform 5A

Cable Bundle Cable Induction
For tests as per DO-160G S22, MIL-STD-461G CS117(WF4/5A) etc.
Coupling Mode Cable Induction (CI)
Output Module W5A CI/GI
Current Waveform 5A 40 Ī¼s Ā± 20 % / 120 Ī¼s Ā± 20 %
Single Stroke Output 50 A ~ 10000 A (-0%~+20%);

Output Impedanceā‰¤0.3 Ī©
Multiple Stroke Output 50 A ~ 2000 A (-0%~+20%) (first stroke);

Output Impedanceā‰¤0.3 Ī©
25 A ~ 1000 A (-0%~+50%) (subsequent stroke);

Output Impedanceā‰¤0.3 Ī©
Number of Subsequent pulses 1 ~ 14 (or 1 ~ 30)
Interval Time of Subsequent Pulses 10 ms ~ 200 ms,random mode is also available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
Coupler LCT- L5
Technical Parametersā€”Current Waveform 5A

Cable Bundle Ground Injection
For tests as per DO-160G S22, MIL-STD-461, CS117 (WF4/5A) etc.
Coupling Mode Ground Injection (GI)
Output Module W5A CI/GI
Current Waveform 5A 40 Ī¼s Ā± 20 % / 120 Ī¼s Ā± 20 %
Single Stroke Output 50 A ~ 10000 A (-0%~+20%)

Output Impedanceā‰¤0.3 Ī©
Multiple Stroke Output 50 A ~ 2000 A (-0%~+20%) (first stroke);

Output Impedanceā‰¤0.3 Ī©
25 A ~ 1000 A (-0%~+50%) (subsequent stroke);

Output Impedanceā‰¤0.3 Ī©
Number of Subsequent pulses 1 ~ 14 (or 1 ~ 30)
Interval Time of Subsequent Pulses 10 ms ~ 200 ms,

random mode is also available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
EUT Power Supply Max. AC 230 V / 32 A 50/60 Hz; DC 230 V/32 A
Coupler LVT- 5
Technical Parametersā€”Voltage Waveform 5B

Signal Pins & Power Pins Direct Injection
For tests as per DO-160G S22 etc.
Coupling Mode Pins Direct Injectionļ¼ˆPDIļ¼‰
Output Module W5B PI
Output Impedance 1 Ī© Ā± 10 %
Voltage/

Current Waveform 5B

 50 A ~ 10000 A (-0%~+20%)

Output Impedanceā‰¤0.3 Ī©
Single Stroke Output 50 V ~ 1600 V (-0%~+10%) ļ¼ˆopen circuitļ¼‰
50 A ~ 1600 A (-0%~+10%) ļ¼ˆshort circuitļ¼‰
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s (shortest time depends on output amplitude)
EUT Power Supply Max. AC/DC 230 V
EUT Power Frequency Max. 800 Hz
Power Blocking Device Greater than peak value of signal or power voltage (optional)
Technical Parametersā€”Current Waveform 5B

Cable Bundle Cable Injection
For tests as per DO-160G S22
Coupling Mode Cable Injection (GI)
Output Module W5B CI/GI
Current Waveform 5B 50 Ī¼s Ā± 20 % / 500 Ī¼s Ā± 20 %
Single Stroke Output 50 A ~ 5000 A (-0%~+20%)

Output Impedanceā‰¤0.3 Ī©
Multiple Stroke Output 50 A ~ 2000 A (-0%~+20%) (first stroke);

Output Impedanceā‰¤0.3 Ī©
25 A ~ 1000 A (-0%~+50%) (subsequent stroke);

Output Impedanceā‰¤0.3 Ī©
Number of Subsequent pulses 1 ~ 14 (or 1 ~ 30)
Interval Time of Subsequent Pulses 30 ms ~ 200 ms,

random mode is also available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
Coupler LCT- 5
Technical Parametersā€”Current Waveform 5B

Cable Bundle Ground Injection
For tests as per DO-160G S22
Coupling Mode Ground Injection (GI)
Output Module W5B CI/GI
Current Waveform 5B 50 Ī¼s Ā± 20 % / 500 Ī¼s Ā± 20 %
Single Stroke Output 50 A ~ 5000 A (-0%~+20%)

Output Impedanceā‰¤0.3 Ī©
Multiple Stroke Output 50 A ~ 2000 A (-0%~+20%) (first stroke);

Output Impedanceā‰¤0.3 Ī©
25 A ~ 1000 A (-0%~+50%) (subsequent stroke);

Output Impedanceā‰¤0.3 Ī©
Number of Subsequent pulses 1 ~ 14 (or 1 ~ 30)
Interval Time of Subsequent Pulses 10 ms ~ 200 ms,

random mode is also available
Polarity positive or negative
Number of Test Times 1 ~ 99
Test Repetition 30 s ~ 60 s
EUT Power Supply Max. AC 50/60 Hz 230 V / 32 A; DC 230 V/32 A
Coupler LCT- 5
List of waveform module and test type
Waveform Module Test type
W1 CI/GI Current waveform 1 ā€“ cable bundle cable induction test

Current waveform 1 ā€“ cable bundle ground injection test
W4 PI Voltage waveform 4 ā€“ signal pins & power pins direct injection method
W4 CI/GI Voltage waveform 4 – cable bundle cable induction test

Voltage waveform 4 – cable bundle ground injection test
W5A PI Voltage waveform 5A ā€“ signal pins & power pins direct injection method
W5A CI/GI Current waveform 5A ā€“ cable bundle cable induction test

Current waveform 5A ā€“ cable bundle ground injection test
W5B PI Voltage waveform 5B ā€“ signal pins & power pins direct injection method
W5B CI/GI Current waveform 5B ā€“ cable bundle cable induction test

Current waveform 5B ā€“ cable bundle ground injection test
Technical Parameters for ETS 160MB
Technical Parametersā€”Voltage Waveform 2

Cable Bundle Cable Induction Tests
Coupling Mode Cable Induction
Rise Time < 100 ns
Duration 6.4 Āµs Ā± 20%
Test Level for Single Stroke Tests 50 V ~ 2000 V +20%, -0%
Test Level for Multiple Stroke Tests 50 V ~ 2000 V +20%, -0% (first stroke)
25 V ~ 1000 V +50%, -0% (subsequent stroke)
Polarity Positive or negative
Coupling Transformer LVT-2
Technical Parametersā€”Voltage Waveform 3 (1MHz) Signal Pins & Power Pins Injection Tests
Coupling Mode Pin injection
Output Impedance 25 Ī©
Frequency 1 MHzĀ± 20 %
Decay Rate of 5th Waveshape 25% ~ 75%
Test Level for Single Stroke Tests 100 V ~ 4500 V +10%, -0%
4 A ~ 180 A +10%, -0% ļ¼ˆshort-circuit currentļ¼‰
Polarity Positive or negative
Phase Sync 0Ā° ~ 359Ā°, resolution 1Ā°
EUT Power Supply Max. AC 230 V, DC Ā±50 V
EUT Power Frequency 800 Hz
Technical Parametersā€”Voltage Waveform 3 (1 MHz-H) Cable Bundle Cable Induction Multiple Burst
Coupling Mode Cable Induction
Frequency 1 MHzĀ± 20 %
Decay Rate of 5th Waveshape 25% ~ 75%
Output Impedance ā‰„60 ohm
Coupling Transformer LVT-2
Technical Parametersā€”Voltage Waveform 3 (1 MHz) Cable Bundle Cable Induction Tests
Coupling Mode Cable Induction
Frequency 1 MHzĀ± 20 %
Decay Rate of 5th Waveshape 25% ~ 75%
Test Level for Single Stroke Tests 50 V ~ 4500 V +20%, -0%
Test Level for Multiple Stroke Tests 50 V ~ 4500 V +20%, -0% (first stroke)
50 V ~ 2250 V +50%, -0% (subsequent stroke)
Polarity Positive or negative
Coupling Transformer LVT-2
Technical Parametersā€”Voltage Waveform 3 (10 MHz) Cable Bundle Cable Induction Tests
Coupling Mode Cable Induction
Frequency 10 MHzĀ± 20 %
Decay Rate of 5th Waveshape 25% ~ 75%
Test Level for Single Stroke Tests 50 V ~ 4000 V +20%, -0%
Test Level for Multiple Stroke Tests 50 V ~ 4000 V +20%, -0% (first stroke)
50 V ~ 2000 V +50%, -0% (subsequent stroke)
Polarity Positive or negative
Coupling Transformer LVT-2
Technical Parametersā€”Current Waveform 6 Cable Bundle Cable Induction Tests
Coupling Mode Cable Induction
Current Waveform 5 A ~ 160 A
Rise Time 0.25 Ī¼s Ā±20%
Duration 4 Ī¼s Ā±20%
Coupling Transformer LVT-3
General parameters
Display 5.7ā€ TFT touch screen
Working Power 220 Vļ¼ŒĀ±10%ļ¼Œ50/60Hz
Fuse 10 A
Userā€™s Memory Space Infinite (PC)
Communication Mode Ethernet LAN, RJ45
Working Status Indication LED indication and LCD display on front panel
Grounded Connection Flat earth line
Flat earth line Banana plug line
Dimension LSS 160SM6:

600 mm(L) x 800 mm(W) x1800 mm(H) (35U rack)

ETS 160MB:

445 mm(L) x 690 mm(W) x600 mm(H) (4UƗ2)
Weight LSS 160SM6: Approx. 150 kg

ETS 160MB: 37 kg
Ambient Temperature 15 ā„ƒ ~ 35 ā„ƒ
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86 kPa ~ 106 kPa

Downloads

Adobe PDF

Indirect Lightning Induced Transient Susceptibility Test System LSS 160SM6 & ETS 160MB Datasheet

Language: English

Reviews

There are no reviews yet.

Be the first to review “Indirect Lightning Induced Transient”

Your email address will not be published. Required fields are marked *

Related products
