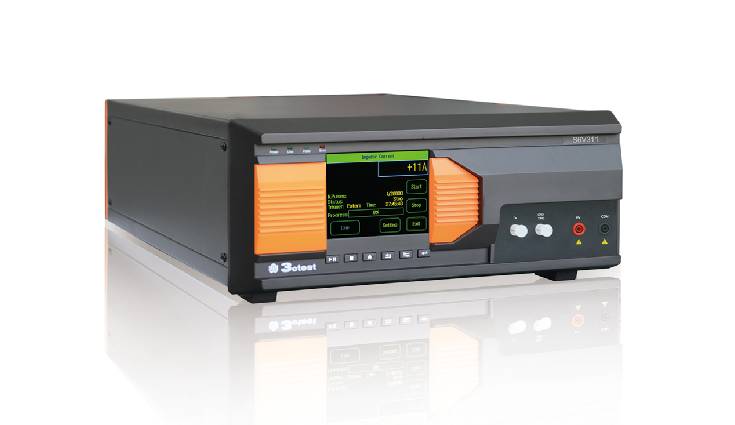

Intelligent Impulse Voltage Testing Equipment S6V311

Model：S6V311

S6V311 is an intelligent impulse voltage simulator as per international standards and product series standards to test gas discharging tube and air gap discharger.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

S6V311 is an intelligent impulse voltage simulator as per international standards and product series standards to test gas discharging tube and air gap discharger. The two main technical parameters of SPD is 1kV/μs impulse breakdown voltage and 1.2/50 breakdown voltage.
S6 is the best option for compact impulse voltage test as per single phase DUT immunity requirements of CE and CCC certification.
  • 5.7-inch color touch screen front panel operation
  • programmable test function
  • Ethernet, RJ45 port for remote control, print and documentation
  • imported electronic switch for main switch

Standard

  • IEC 61643-1
  • IEC 60065
  • IEC 61643-311
  • EN 61643-311

Specifications

General Parameters
Display 5.7-inch TFT touch screen
Scope of Working Power Supply AC 110 V/220 V, ± 10%, 50 Hz/60 Hz (default AC 220 V in Chinese Mainland)
Fuse 6:00 AM
Maximum Power Consumption 100 W
Communication Method Ethernet LAN
User Storage Space Infinite (PC)
Communication Method Ethernet, RJ 45
Auxiliary Interface D-sub 25 p
External Trigger Input BNC, 5V TTL
CRO Triggers Output BNC, 5V TTL
Operation Control Input BNC, 5V TTL
Warning Light Output 0 – 220 V AC 10 A/0 – 48 V DC 3A; The power supply depends on the type of external signal light
Safety Circuit Stop working when the safety circuit is not closed
Failure Detection When it fails, the front panel LCD displays and interrupts the instrument’s operation
Instrument Working Status Indication Front panel LED indication, LCD display
Instrument Grounding Connection Method Use a flat grounding wire
Chassis Size 4U chassis (450 mm * 190 mm * 620 mm)
Instrument Weight About 15 kg
Ambient Temperature 15℃~35℃
Relative Humidity 45%~75%
Atmospheric Pressure 86 kPa~106 kPa
Technical Parameters
Compliant With IEC 61643-311 and GB/T 18802.311 Impulse Voltage Testing
Test Voltage Range 500 V – 5000 V ± 10%
Voltage Waveform Wavefront time: 1000 V/μs ± 20%
Half peak time: none
Source Output Impedance 1000 Ω
Output Polarity Positive and negative
Pulse Cycle 10 s – 99 s
Test Frequency 1-999 times
Trigger Method Automatic, manual, external triggering
Compliant With IEC 61643-311 and GB/T 18802.311 Impulse Voltage Testing
Test Voltage Range 500 V – 5000 V ± 10%
Voltage Waveform Wavefront time: 1.2 μs ± 30%
Half peak time: 50 μs ± 20%
Source Output Impedance 500 Ω
Output Polarity Positive and negative
Pulse Cycle 10 s – 99 s
Test Frequency 1-999 times
Trigger Method Automatic, manual, external triggering

Downloads

Adobe PDF

Intelligent Impulse Voltage Testing Equipment S6V311 series Datasheet

Language: English
