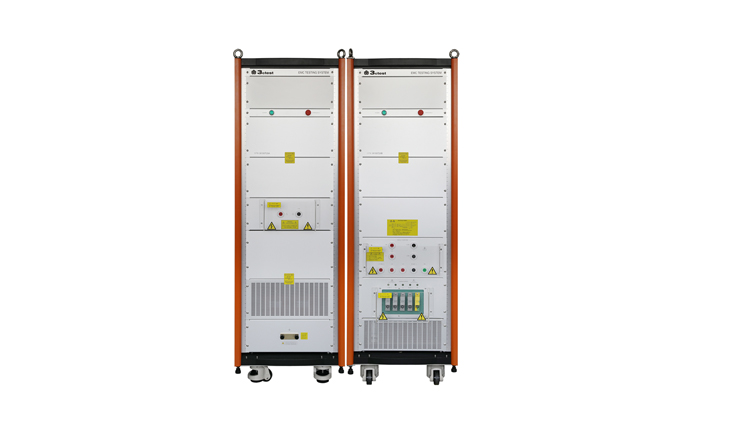

Lightning Surge Coupling/Decoupling

Model：SPN 38100T20A&20B

SPN 38100T20A&20B High voltage and high-power lightning surge coupling/decoupling network, meet the full range test requirements.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

SPN 38100T20A&20B High voltage and high power lightning surge coupling/decoupling network, meet the full range test requirements, can be combined with S10C2000, CWS 2000MS for different waveform
testing. The maximum surge combined wave test voltage is 20kV, 10kA, and the maximum 8/20μs current wave is 20kA. Meet AC/DC power supply, EUT maximum load capacity AC 380V 100A three-phase five-wire, DC 380V 100A.

Features：

  • EUT maximum voltage AC 380V DC 380V 100A.
  • Scheduling Settings, to achieve automatic network switching function.
  • Scheduling Settings, to achieve automatic network switching function.
  • 8/20μs current wave up to 20KA.
  • Arbitrary line phase Angle superposition.

Standard

  • IEC 61000-4-5
  • GB/T 17626.5
  • EN 61000-4-5
  • IEC 61643-11
  • GB/T 18802.11
  • EN 61643-11

Specifications

Comply with IEC 61000-4-5 lightning surge immunity test technical parameters
Three-phase Fully automatic coupling/decoupling network Conform to the EN/IEC 61000-4-5, GB/T 17626.5 lightning surge wave test

Voltage up to 20kV (1.2/50μs)

Current up to 10kA (8/20μs)

Note:

The actual output pulse voltage value of the coupling/decoupling network depends on the set value of the pulse generator
Phase Losking Any line – line,line – ground phase Angle superimposed
Coupling Path L1、L2、L3、N、Arbitrary combination

L1（DC+）、N（DC-）DC paths
Coupled Switching Mode Automatic Switching
Coupling Capacitor 9uF (line-to-ground)

18uF (line-to-line)
Coupling Resistance 10 ohm (wire-to-ground)

0 ohm (wire-to-line)
EUT Load Capacity Max AC 380V、100A；Max DC 380V、100A；
EUT Injection Residual Pulse Voltage Not more than 15% of the applied test pulse voltage or twice the peak rated voltage of the coupling/decoupling network
Comply with IEC 61643-11 pulse current immunity test technical parameters
Manual coupling/decoupling network Conform to the EN/IEC 61643-11、GB

/T 18802.11

Coupled pulse current wave test

Current up to 20kA (8/20μs)

Note: The actual output pulse voltage value of the coupling/decoupling network depends on the set value of the pulse generator
Output Current Up to 20kA(8/20us)
Phase Losking Any line – line,line – ground phase Angle superimposed
Coupling Path L1、L2、L3、N、Arbitrary combination

L1（DC+）、N（DC-）DC paths
Coupled Switching Mode Automatic Switching
Coupled Apparatus Gas Discharge Tube
EUT Load Capacity Max AC 380V、100A；Max DC 380V、100A；
EUT Injection Residual Pulse Voltage Not more than 15% of the applied test pulse voltage or twice the peak rated voltage of the coupling/decoupling network
General Parameters
Working Power Supply AC 110V/220V±10%，50/60Hz±5%
Fuse 6A
Maximum Power Consumption 200W
Auxiliary Interface D-sub 25p
Grounding Connection Mode Use flat grounding line
Dimension 35U
Weight Approx 200Kg
Ambient Temperature 15-35℃
Relative Humidity 45%-75%
Atmospheric Pressure 86 kPa-106 kPa

Downloads

Adobe PDF

Lightning Surge Coupling/Decoupling SPN 38100T20A&20B Series Datasheet

Language: English
