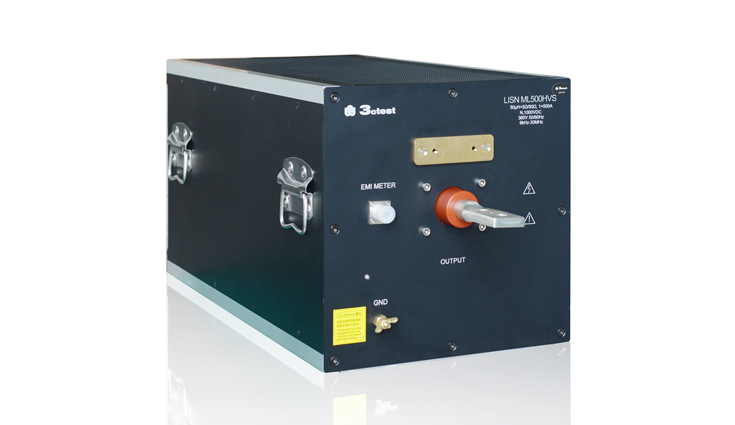

The LISN ML500HVS is designed as per GJB151B and MIL-STD-461 and used for isolating power interference and provide specified power impedance for EUT, its impedance fully meets the standard requirements. When using, an EUT is connected to the output terminal, while power is connected to the Input terminal. EMI measurement terminal is standard type N interfaces.

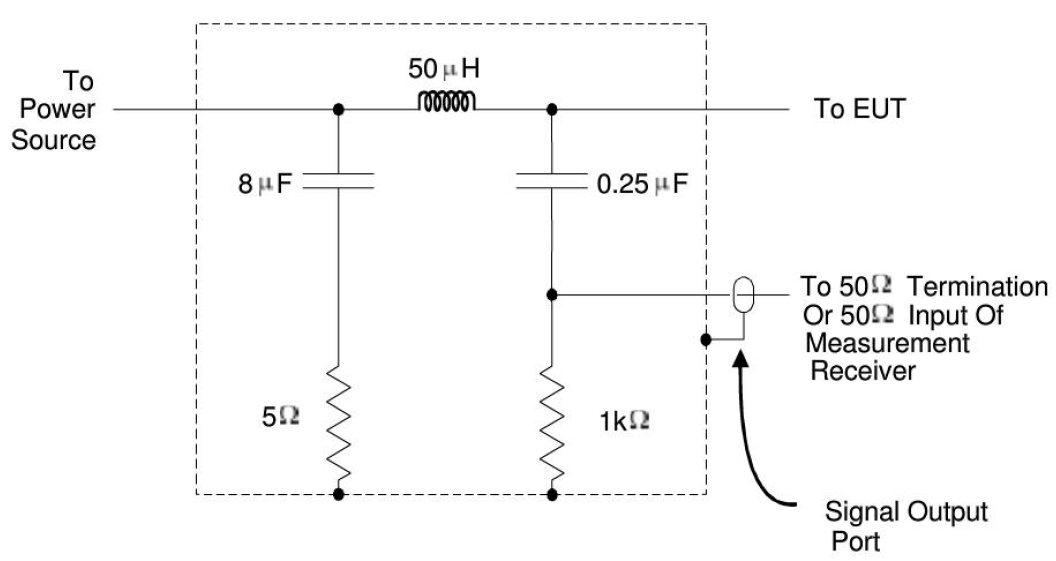

Schematic Diagram：
| Technical Parameters | |
|---|---|
| Test Voltage (Vmax) | 1000 VDC, 380 V 50 Hz/60 Hz |
| Test Current (Imax) | 500 A |
| Test Terminal | Type N |
| Inductance | 50 μH |
| Impedance | 50 μH+5 Ω‖50 Ω |
| Coupling Capacitor | 0.25 μH |
| Impedance Frequency Range | 9 kHz-30 MHz |
| General Parameters | |
| Power supply | AC 110/220 V, ±10%, 50 Hz/60 Hz (±5%) (Default AC 220 V 50 Hz in mainland China) |
| Dimension | 310 mm*310 mm*870 mm (L*W*H) |
| Ambient Temperature | 15 ℃ ~ 35℃ |
| Relative Humidity | 45%–75% |
| Weight | Approx. 55 kg |
Model：LISN F 16A
The LISN F 16A is designed according to GB/T 17625.2 and applicable to voltage fluctuation and flicker test impressed on three-phase power. Similar terminals are designed respectively on front and rear panel to make test connection easy.
Model：LISN F 16A
The LISN F 16A is designed according to GB/T 17625.2 and appl
...
Model：LISN J200
The line impedance stabilization network LISN J200 is designed as per GJB151B (2013) and MIL-STD-461E(1999) and used to separate parts from mains and measure the disturbances feature of vehicles.
Model：LISN J200
The line impedance stabilization network LISN J200 is designed
...
Model：LISN AR 50
The line impedance stabilization network LISN AR 50 is designed as per section 20 and 22 in RTCA / DO 160 and used to standardize the impedance of the power source that provides input power for the EUT(s).
Model：LISN AR 50
The line impedance stabilization network LISN AR 50 is design
...
Model：VHF-LISN NBM3-16
CISPR16-1-4 Ed.3.2 defines clearly to the design and performance of high frequency line impedance stabilization networks.
Model：VHF-LISN NBM3-16
CISPR16-1-4 Ed.3.2 defines clearly to the design and pe
...
