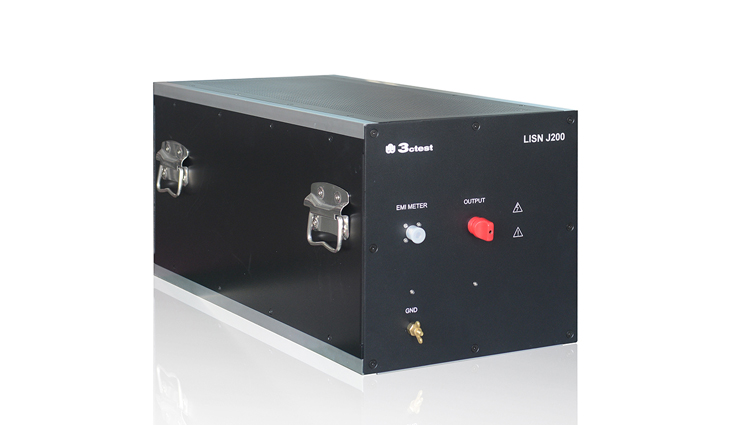

The LISN J200 is designed as per GJB151B (2013) and MIL-STD-461E(1999) and used to separate parts from mains and measure the disturbances feature of vehicles, ships and internal combustion engines, its impedance completely meets standards requirements. When using, an EUT is connected to the output terminal, while power is connected to the Input terminal. EMI measurement terminal is standard type N interfaces.

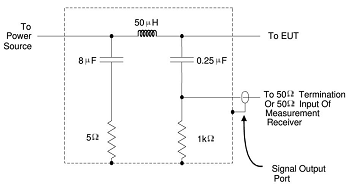

Design Schematic Diagram
| Technical Parameters | |
|---|---|
| Standard | GJB151B-2013
MIL-STD-461E-1999 |
| Test Voltage (Vmax) | 500VDC, 270V
50 Hz /60Hz,135V 400Hz |
| Test Current (Imax) | 200 A |
| Transient. Current | Max.300A |
| Inductance Temperature Rise（ΔT） | Approx. 80℃（200A 2h） |
| Test Terminal | TypeN |
| Inductance | 50 μH |
| Coupling Capacitor | 0.25 μF |
| Impedance Frequency Scope | 9KHz-30MHz |
| General Parameters | |
| Cabinet Dimension | 310 mm (L)*310 mm (W)*600 mm(H) |
| Weight | Approx. 30 kg |
| Ambient Temperature | 15 ℃–35 ℃ |
| Relative Humidity | 45%–75% |
| Atmosphere Pressure Range | 86 kPa–106 kPa |
Model：LISN J3000
High voltage & bulk power artificial power supply networks LISN J3000 is designed as per GJB151B-2013 and MIL-STD-461E-1999 and used to separate parts from mains and measure the disturbances feature of vehicles.
Model：LISN J3000
High voltage & bulk power artificial power supply network
...
Model：LISN J50
Line Impedance Stabilization Network LISN J50 is predominately used to separate the parts from mains and measure the disturbances feature of vehicles.
Model：LISN J50
Line Impedance Stabilization Network LISN J50 is predominately
...
Model：LISN ML500HVS
The line impedance stabilization network LISN ML500HVS is designed as per GJB151B and MIL-STD-461 and used for isolating power interference and provide specified power impedance for EUT.
Model：LISN ML500HVS
The line impedance stabilization network LISN ML500HVS is
...
Model：LISN AR 50
The line impedance stabilization network LISN AR 50 is designed as per section 20 and 22 in RTCA / DO 160 and used to standardize the impedance of the power source that provides input power for the EUT(s).
Model：LISN AR 50
The line impedance stabilization network LISN AR 50 is design
...
