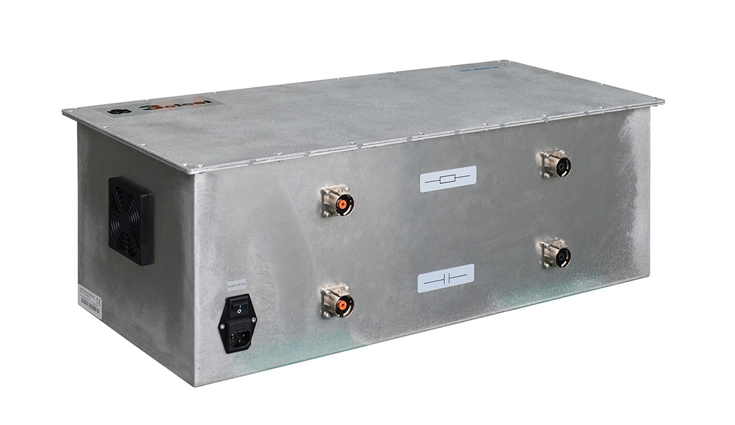

The 7637-4R500/120 is designed to meet the requirement of matched impedance and circuit capacitor of Waveform A, waveform B and waveform C specified in ISO 7637-4. The resistor or capacitor can be used independently or combined in parallel.
Internal Schematic Diagram：
| Technical Parameters | |
|---|---|
| Port of Front Panel | DC port, LISN port |
| Port of Rear Panel | Resistor, capacitor short circuit output |
| Shielded Effect | ＞80 dB |
| Ambient Temperature | 15 ℃~35 ℃ |
| Relative Humidity | 45% ~ 75% |
| Atmospheric Pressure | 86 kPa ~ 106 kPa |
| Dimension | 736 mm（L）×345 mm（W）×255 mm（H) |
| Weight | Approx. 17.6 kg |
| Material | Aluminum |
