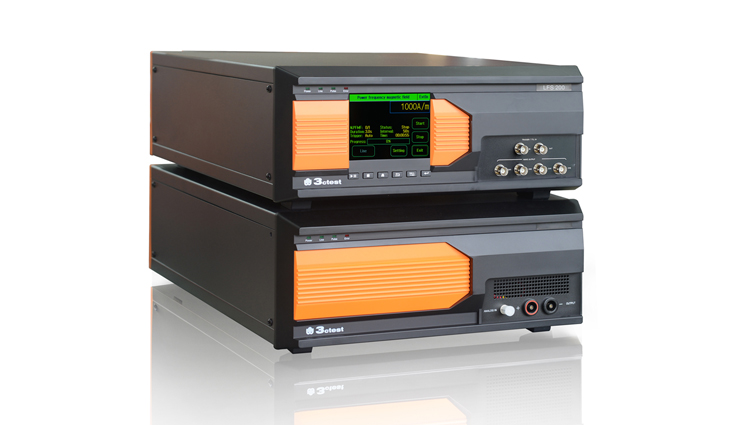

Low-Frequency DC Signal Source (0 Hz-250-kHz-LFS-200)

Model：LFS 200

Low-frequency DC signal source LFS 200 can generate sine wave, to simulate ripple noise, in compliance with many relevant standards of automobile manufacturers.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Low-frequency DC signal source LFS 200 can generate sine wave, to simulate ripple noise, in compliance with many relevant standards of automobile manufacturers. With the control software AutoLab, it can also generate non-sine wave, customized signal, and magnetic field (if used together with radiation coils or Helmholtz coils).

Features

  • High capacity: sine wave max frequency 250 kHz; output voltage max 140 V p-p, 50 V SRM;
  • output current max 5 A SRM;
  • Built-in low-frequency amplifier of 250 W;
  • Adjustable DC bias voltage;
  • Control software: AutoLab;
  • Optional integrated voltage meter (10 Hz – 250 kHz)

Standard

  • Chrysler CS-11809
  • Chrysler CS-11979
  • DaimlerChrusler DC-10615
  • DaimlerChrusler DC-11224
  • DaimlerChrusler DC-11224 Rev.A
  • Forder EMC-CS-2009.1
  • MAN 3285
  • Tata TST/TS/WI/257
  • GMW 3172
  • SAE J1113-2
  • EMC-CS-2010JLR V1.1

Specifications

Technical Parameters
Power Amplifier Signal Source
Frequency Range DC 250 kHz DC 10 Hz – 250 kHz (sine wave)
Output Power 250 W (nominal) N/A
Output Voltage 50 V RMS, max 120 V (0 – 100 kHz);

30 V RMS, max 120 V (100 kHz – 250 kHz);

 ±10 V
Output Current 5 A RMS (0 – 200 kHz);

4 A RMS (200 kHz – 250 kHz);

 N/A
Output Impedance 30 mΩ at 1 kHz N/A
Protection System Short-circuit protection,

superheating protection;

 N/A
DC Bias Voltage N/A 0 – 10 V adjustable, in control of external DC amplifier
General Parameters
Power Supply AC 110 V / 220 V, 50 / 60 Hz

(The default configuration is 220 V, 50 Hz for Mainland China)
Input Power Max 500 W
Connector Type Ethernet RJ45 for PC control or connection with PAWG 100
Operating Temp. 15℃ – 35℃
Operating Humidity 45% – 75%
Dimension 19”, 8 U
Weight Approx. 18 kg

Downloads

Adobe PDF

Low-Frequency DC Signal Source (0 Hz – 250 kHz) LFS 200 Datasheet

Language: English
