Description

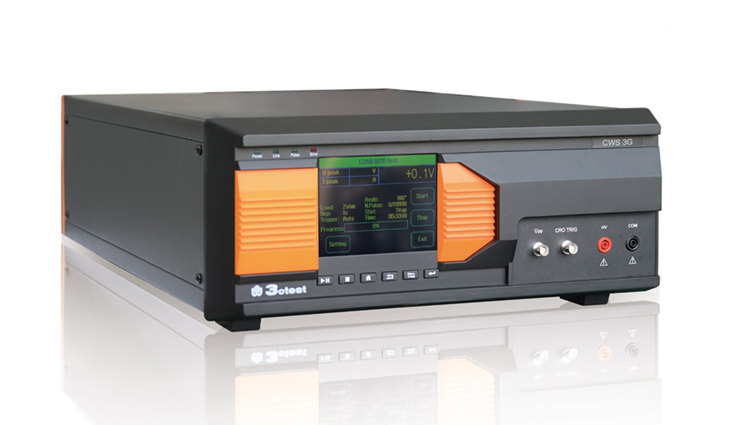

The CWS 3G is specially designed for simulating low voltage surge pulse disturbances phenomenon, which can be used in surge protection device (TVS tube, TSPDs, SIDAC, surge suppressor and wafer or package level) immunity test. Its output voltage can be adjustable from 1 V to 30 V, which totally meet the test requirement of IEC/EN 61000-4-5 and GB/T 17626.5.
The product is based on 3-rd generation control platform, which features highly system integration, intelligence control, easy operation and saving test time.
Features：
- 5.7- inch colorful touch screen.
- Output voltage from 1 V to 30 V, 0.1 V step.
- Source impedance 2 ohm.
- Built-in peak value measurement function, oscilloscope can be connected for observing waveform.
- The peak voltage and peak current of output surge are displayed on screen in real-time.
- With test sequence function.
- Ethernet, RJ45 port for PC remote control, print and documentation.
