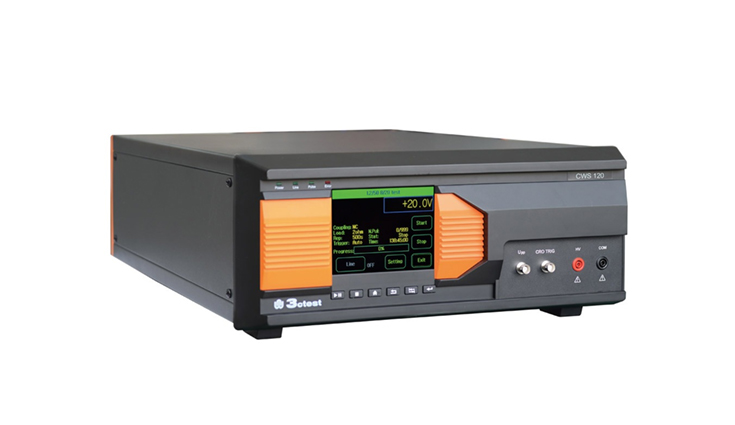

Low Voltage Combination Wave Lightning

Model：CWS 120

The CWS 120 is designed specially for simulating low voltage surge pulse disturbances phenomenon, which can be used in surge protection device.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The CWS 120 is designed specially for simulating low voltage surge pulse disturbances phenomenon, which can be used in surge protection device (TVS tube, TSPDs, SIDAC, surge suppressor and wafer or package level) immunity test. Its output voltage can be adjustable from 1 V to 1200 V, which totally meet the test requirement of IEC/EN 61000-4-5 and GB/T 17626.5.
The product is based on 3-rd generation control platform, which features highly system integration, intelligence control, easy operation and saving test time.

Features：

  • 5.7-inch colorful touch screen.
  • As per IEC/EN 61000-4-5 and GB/T 17626.5.
  • Output voltage from 1 V to 1200 V.
  • Source impedance 2 ohm, 12 ohm, 42 ohm.
  • Built-in 4 coupling/decoupling network.
  • EUT load capacity for 40 VDC 10 A.
  • The peak voltage and peak current of output surge are displayed on screen in real-time.
  • With test sequence function.
  • LAN Ethernet Interface for PC remote control.
  • PC control software corelab.

Standard

  • IEC 61000-4-5
  • GB/T 17626.5
  • EN 61000-4-5

Specifications

General Parameters
Display Screen 5.7-inch TFT touch screen
Working Power AC 110 V/220 V（±10%），50 Hz /60 Hz（Default in mainland China：220 V）
Fuse 6 A
Max. Power 200 W
Communication Mode Ethernet LAN、RJ45
Failure Detection The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.
Working

Status Indication

 LED indication and LCD display on front panel
Dimension(W*H*D) 19-inch/ 4U

(450*192*610 mm)
Weight Approx. 20 kg
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86 kPa ~ 106 kPa
Technical Parameters
Combination Wave
Test Voltage 1 V ~ 1200 V (±10%)
Voltage Waveform Rise time : 1.2 μs±30%，

Pulse width: 50 μs±20%
Test Current 0.5 A-600 A ±10% (2 ohm)
Current Waveform Rise time : 8 μs±20%，

Pulse width: 20 μs±20%
Source Impedance 2 ohm, 12 ohm, 42 ohm
Polarity Positive, negative, alternative
Pulse Repetition 1 s ~ 9999 s
Counter 1 ~ 9999
Trigger Mode Manual, Auto, External
Test mode Parameter scheduling setting
Coupling/decoupling mode C/L , D/L, C/D, D/D

C : capacitor;

L : inductance;

D : diode
EUT load

capacitor

 40 VDC 10 A
Display Peak voltage and Peak

Current diaplay

Downloads

Adobe PDF

Low Voltage Combination Wave Lightning Surge Simulator CWS 120 Series Datasheet

Language: English
