Magnetic Field Coil TCXS 3360

Model：TCXS 3360

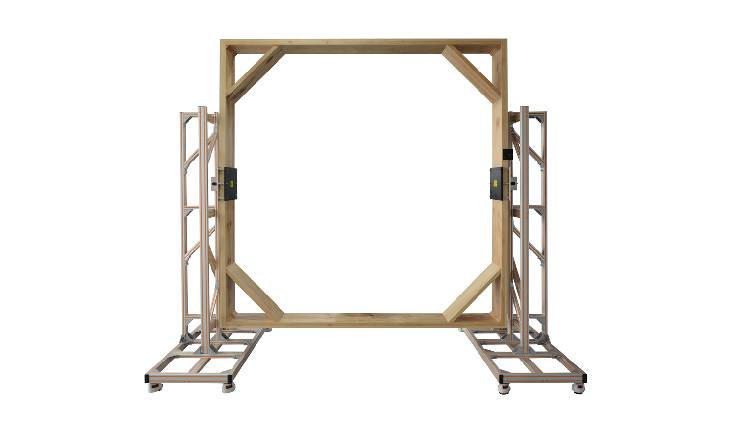

The magnetic field coil TCXS 3360 is specially designed according to the characteristics and requirement of magnetic field immunity tests conducted on electrical and electronic products.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The magnetic field coil TCXS 3360 is specially designed according to the characteristics and requirement of magnetic field immunity tests conducted on electrical and electronic products. It totally meets the requirement of BS EN 12895:2015 and IEC/EN 61000-4-8 or GB/T 17626.8, which is mainly used in the immunity test to external electromagnetic field of industrial truck.

Features:

  • Magnetic field direction can be rotated 360° during test.
  • Stable magnetic field strength output.
  • Aluminum profile bracket structure design.

Standard

  • IEC 61000-4-8
  • EN 61000-4-8
  • BS EN 12895:2015

Specifications

Technical Parameters
Magnetic Field Strength 1 A/m ~ 1000 A/m
Magnetic Field Direction 90° / 180°
Test Time 1 A/m ~ 100 A/m: continuous from 1 s to 28800 s
≥ 100 A/m: continuous for 10 s
Coil Dimension 3000 mm (L) × 3000 mm (W)
Coil Turns 60-turn
Coil Shape Rectangle
Ambient Temperature 15 ℃ ~ 35 ℃
Weight Approx. 75 kg
