Magnetic Field Coils TCXS, TYX Series

Model:TCXS, TYX Series

Magnetic Field Coils – TCXS, TYX Series are designed according to IEC 61000-4-8 and GB/T 17626.8 to constitute the power frequency magnetic field immunity testing system together corresponding wave generators.

In Stock
Enquire Now

Description

Magnetic Field Coils – TCXS, TYX Series are designed according to IEC 61000-4-8 and GB/T 17626.8 to constitute the power frequency magnetic field immunity testing system together corresponding wave generators.

Features:

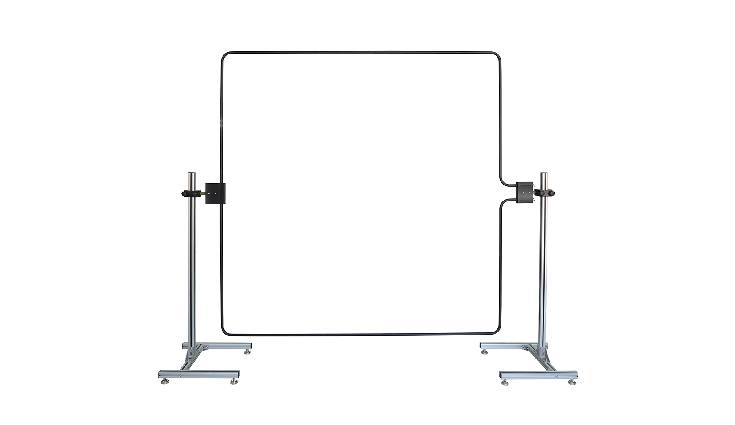

  • 360° rotatable during the tests
  • Adjustable coil height
  • Stable output magnetic field strength
  • Solid aluminum-alloy structure

Standard

Specifications

Name Magnetic Strength Field Frequency Magnetic Direction Test Duration Coil Size
TCXSD 05370 159 – 40000 A/m
200 μT – 50400 μT
50 Hz 90° / 180° ≤ 8000 A/m, continuous for 8 hours
> 8000 A/m, ≤ 10 S
φ500 mm
TCXS 1125 1 A/m – 1200 A/m
1.26 μT – 1512 μT
50 Hz 90° / 180° ≤ 400 A/m, continuous for 8 hours
> 400 A/m, ≤ 10 S
1320 x 180 x 1040 mm (L x W x H)
TCXS 2250 1 A/m – 1000 A/m
1.26 μT – 1260 μT
50 Hz 90° / 180° ≤ 400 A/m, continuous for 8 hours
> 400 A/m, ≤ 10 S
2340 x 2060 x 300 mm (L x W x H)
TCXS 25151 1 A/m – 50 A/m
1.26 μT – 63 μT
50 Hz 90° / 180° ≤ 50 A/m, continuous for 8 hours 2500 x 1500 mm (L x W)
TCXS 111 1 A/m – 400 A/m
1.26 μT – 504 μT
50 Hz 90° / 180° ≤ 100 A/m, continuous for 5 hours
> 100 A/m, ≤ 10 S
1000 x 1000 mm (L x W)
TCXS 113 1 A/m – 1200 A/m
1.26 μT – 1512 μT
50 Hz 90° / 180° ≤ 400 A/m, continuous for 5 hours
> 400 A/m, ≤ 10 S
1000 x 1000 mm (L x W)
TCXS 221 1 A/m – 200 A/m
1.26 μT – 252 μT
50 Hz 90° / 180° ≤ 100 A/m, continuous for 5 hours
> 100 A/m, ≤ 10 S
2800 x 2000 mm (L x W)
