Magnetic Field Inductive Coil TCXS331

Model：TCXS331

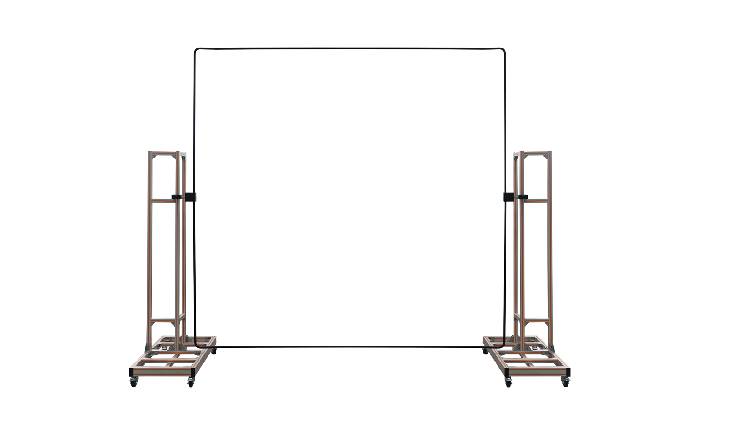

The Power Frequency magnetic field coil TCXS331 is specially designed for the magnetic field immunity test of electrical.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The Power Frequency magnetic field coil TCXS331 is specially designed for the magnetic field immunity test of electrical or electronic products according to IEC 61000-4-8 and GB/T 17626.8. It can be used together with MFS 400 (Power Frequency Magnetic Field Generator) to simulate the magnetic environment of residential and commercial locations, industrial installations and power plants, medium voltage and high voltage sub-stations.

Features:

  • 360° rotation adjustable
  • Stable magnetic field
  • Aluminum profile bracket design

Standard

  • IEC 61000-4-8
  • GB/T 17626.8

Specifications

Technical Parameters
Magnetic Field Strength 1 A/m ~ 30 A/m; 1.26 μT ~ 37.8 μT
Magnetic Field Direction 90° / 180°
Test Time Continuous operation for 28800 s (8 h)
Dimension (Coil) 3600 mm × 3050 mm
Overall Dimension 4100 × 1200 × 3400 mm (L × W × H) (Coil is placed vertically with height adjustable)
Package Dimension 3600 × 2000 × 600 mm (L × W × H) (Coil is disassembled for transportation)
Ambient Temperature 15 ℃ ~ 35 ℃
Weight Approx. 50 kg
