Description

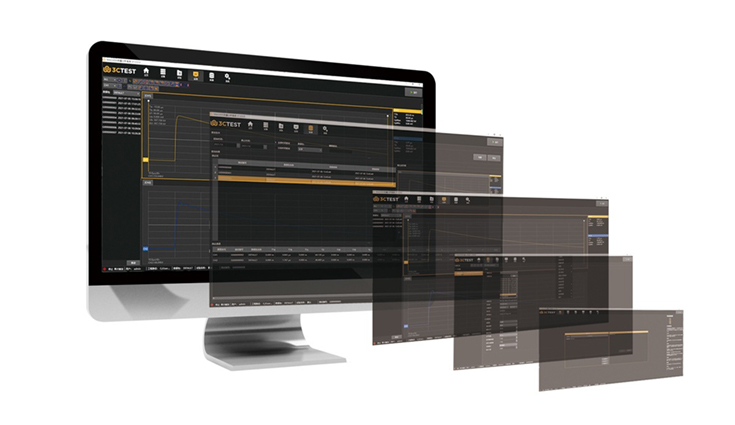

MAS3000 measurement and analysis software is specially designed for impulse voltage and impulse current test, which is capable of realizing on-line measurement display and professional analysis for lightning wave, operation wave and rectangular wave etc. on the basis of oscilloscope function. The MAS3000 can control multiple oscilloscopes and display all waveforms and data acquired from oscilloscopes, based on which, users could perform function operation and waveform combination. Meanwhile, with functions of saving test configuration and measurement results, waveform processing, intelligent retrieval, offline analysis and printing functions, MAS3000 makes the measurement safe, efficient and fast.
Features:
- Compatible with Windows XP/7/8/10 OS.
- Unique UI design and intuitive operation.
- Supporting Ethernet RJ45 and serial port communication port.
- Oscilloscope of Tektronix series is used for waveform acquisition.
- Automatic saving test configuration, with uploading function.
- Record measurement result, with uploading function.
- Powerful waveform processing function and diverse filtering algorithms, with function of 1M, 0.5M, 0.2M low-pass filtering, digital average filtering, local filtering and lightning strike standard fitting algorithm processing.
- Save waveform into png./ bmp. format and make comparison with saved reference waveform.
| Detailed Introduction of Highlights | |

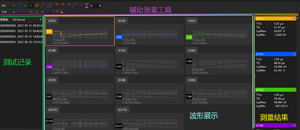

| n Multiple oscilloscopes can be connected for waveform data acquisition simultaneously and real-time display;
|
n Up to 20 channels (including logical channel) can be configured;
|

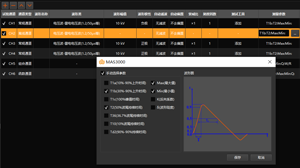

| n Plenty of waveform computing function, including computing time waveform head and tail, peak value, waveform energy and duration etc.;
|

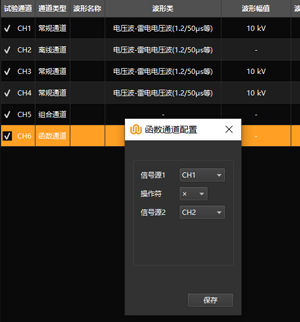

n Function channel: energy computing of random combined waveform;
|

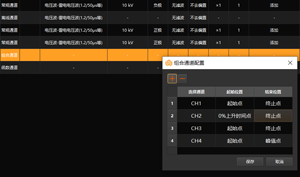

| n Combination channel: any channel waveform can be combined and jointed;
|

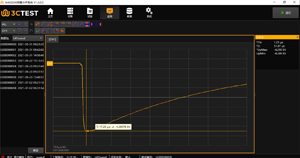

n Feature point can be manually modified for peak value calculation to revise output result;
|
