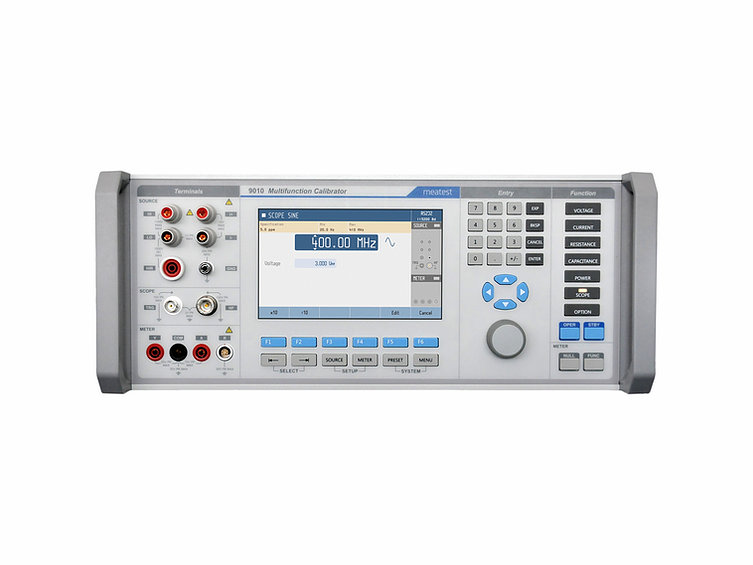

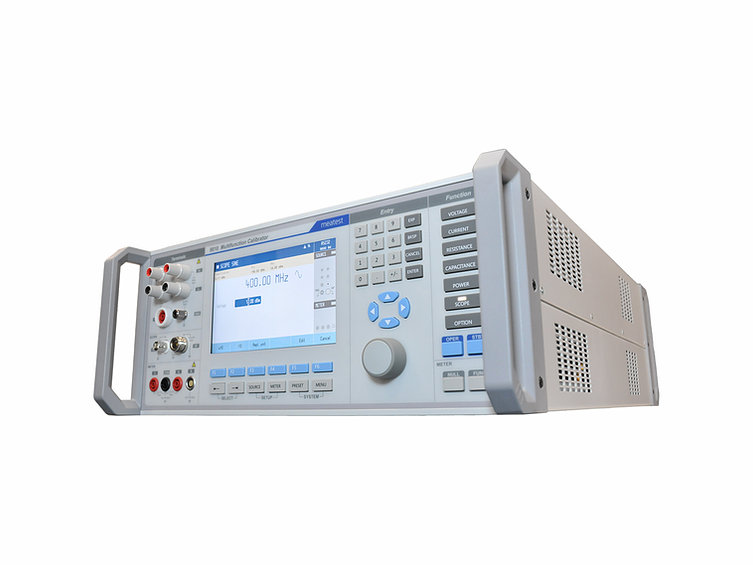

Meatest 9010 Multifunction Calibrator 1050V 20A AC/DC 35ppm

Code: 9010

35 ppm AC/DC multifunction calibrator for multimeters, power meters and generally all kinds of electric meters. Implementing modular design, 9010 can be further customized to calibrate oscilloscopes, insulation testers, sources and transducers.

  • 35 ppm accuracy
  • 400 MHz scope option
  • Power quality functions, voltage from current

₹2,074,602.00 ₹1,649,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The new Meatest 9010 Muti-Function Electrical Calibrator has a basic 35ppm accuracy with output up to 1050V/20A AC/DC and is intended for customers looking to replace their Fluke or Wavetek 9100 calibrator. The 9010 also has a built in process DMM for high accuracy measurements of DCV and DCI process signals.

The Meatest 9010 has an insulation testing option up to 1500V, and is able to calibrate high burden Analogue meters plus an Oscilloscope calibration option up to 400MHz and outputs AC/DC Power, Energy as well as Capacitance, RTD, Thermocouple.

Coils for clamp meter calibration are available for purchase to boost the current output.

This item comes standard with factory calibration certificate, user manual, standard power cable, red/black test leads, and USB cable.

Available Options:

SCO Scope extension 400 MHz
HVR High voltage resistance extension 1.5 kV
MER Multimeter extension
9010-60 Cable adapter for R4W/RTD input
91 Pt100 cold junction compensator
CALIBER Calibration Software

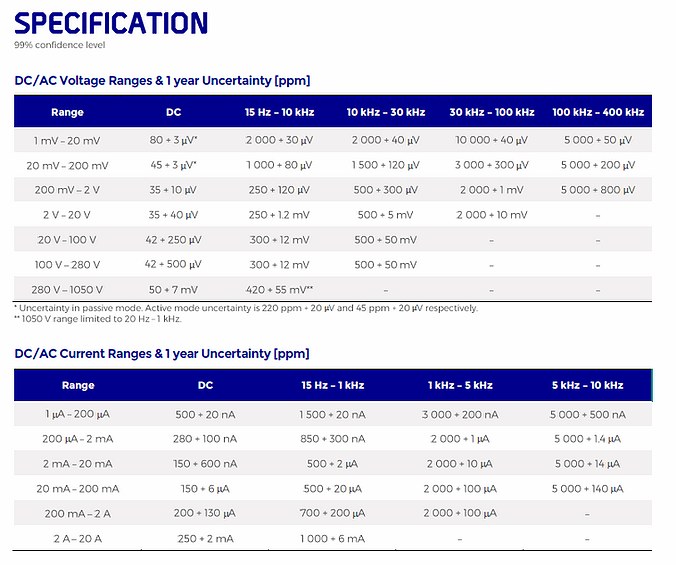

Specifications

DC voltage 0 – 1050 V
± 35 ppm / year
AC voltage 1 mV – 1050 V, 15 Hz – 300 kHz

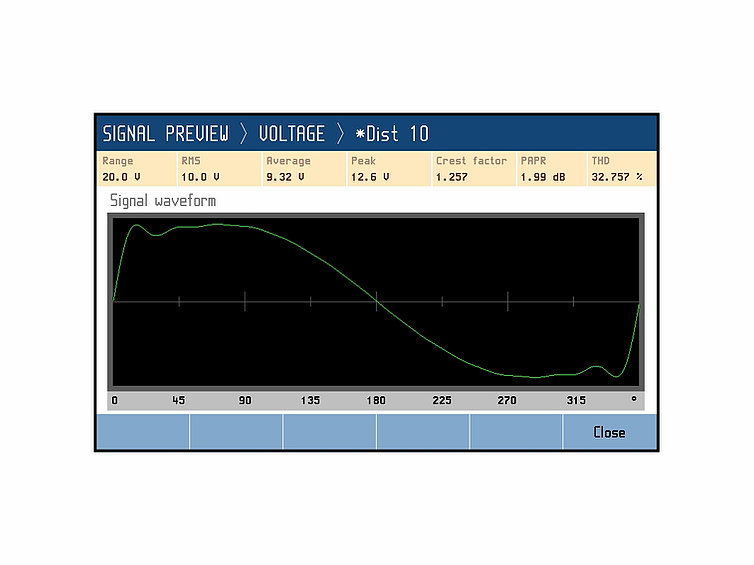

sinusoidal & non-sinusoidal waveforms, harmonics
± 250 ppm / year
DC current 0 – 20 A (1000 A with 140-50 Current Coil)
± 150 ppm / year
AC current 10 uA – 20 A, 15 Hz – 10 kHz (1000 A with 140-50 Current Coil)
sinusoidal & non-sinusoidal waveforms, harmonics
± 500 ppm / year

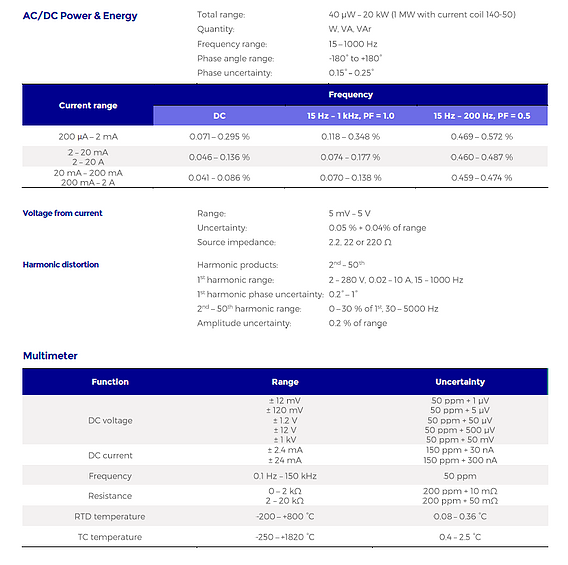

DC Power & Energy 40 uW – 5.6 kW (280 kW with 140-50 Current Coil)
± 210 ppm / year
AC Power & Energy 40 uW – 5.6 kW, 15 – 1000 Hz (280 kW with 140-50 Current Coil)

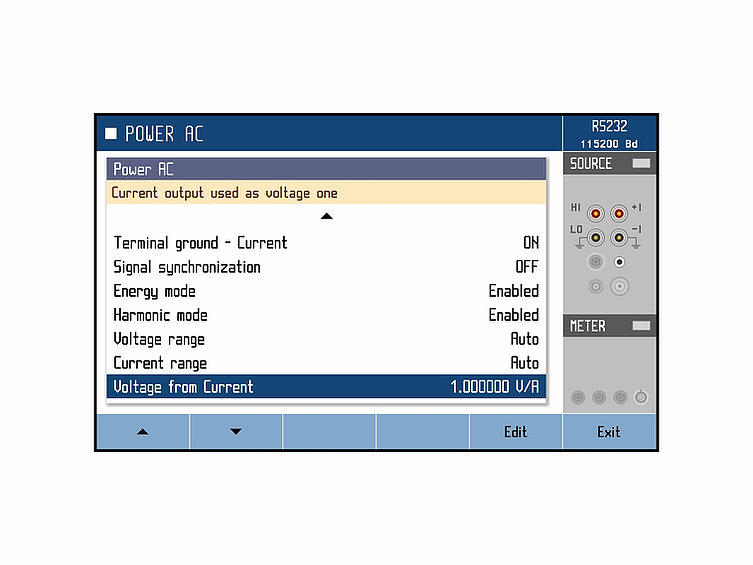

50 harmonic products, voltage from current
± 730 ppm / year

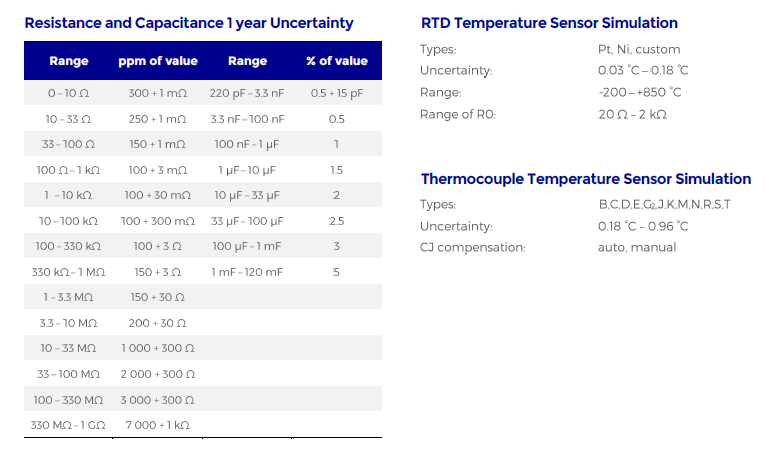

Resistance 0 Ω – 1 GΩ, resolution 6½ digits
± 15 ppm / year
Insulation Resistance 100 kΩ – 100 GΩ
rated up to 1.5 kV
Capacitance 800 pF – 120 mF, resolution 6½ digits
± 0.5 % / year
Temperature TC BCDEG2JKMNRST with cold junction compensation
RTD ± 0.03°C / year
Frequency 0.1 Hz – 400 MHz
± 25 ppm / year

Features

  • AC/DC voltage/current up to 1050V/20A
  • Basic uncertaintity of 35ppm
  • AC/DC power, energy, phase shift
  • Resistance, Capacitance
  • Thermocouple, RTD
  • Oscilloscope option up to 400 MHz
  • High Voltage resistance option for 1.5kv insulation testers
  • Built-in process multimeter
  • Interfaces – RS-232, LAN, USB, GP-IB
