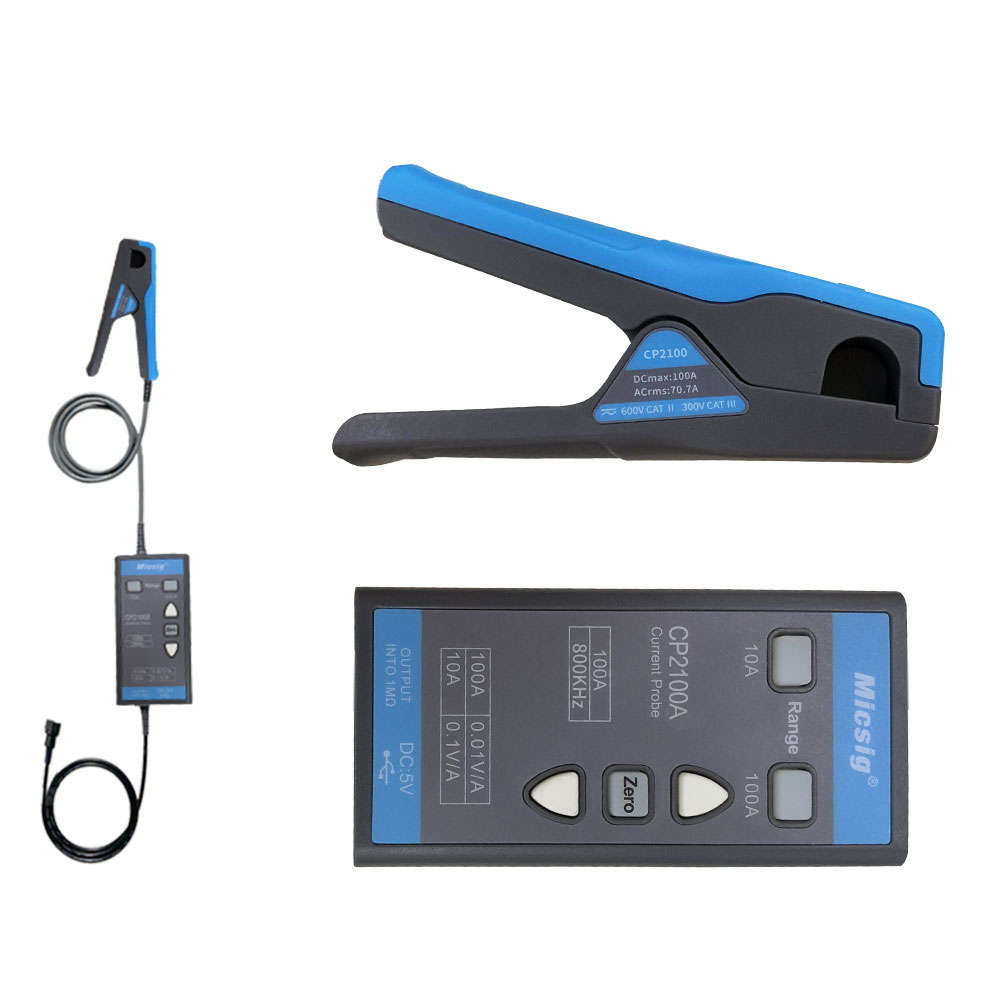

Micsig Current Probe CP2100A

Code: CP2100A

Current probe up to 100 A Peak and 800 kHz bandwidth.

Bandwidth Range Accuracy Rise time
800 kHz 10A | 100A 0.1V/A | 0.01V/A ≤583ns

1 year warranty

48,990.00 37,990.00

1 in stock (can be backordered)

1 in stock (can be backordered)

Description

Model CP2100A CP2100B
Bandwidth DC-800KHz DC-2.5MHz
Rise time <=583ns <=175ns
Ranges 10A/100A 10A/100A
Output sensitivity 0.1V/A (10A) 0.01V/A (100A) 0.1V/A (10A) 0.01V/A (100A)
DC accuracy 3%+-50mA (10A) 4%+-50mA (100A, 500mA-40Apk) 15% (100A, 40Apk-100Apk) 3%+-50mA (10A) 4%+-50mA (100A, 500mA-40Apk) 15% (100A, 40Apk-100Apk)
Signal delay <150ns (10A) <200ns (100A) <150ns (10A) <200ns (100A)
Current measurement range 50mA – 10Apk (10A) 1A – 100Apk (100A) 50mA – 10Apk (10A) 1A – 100Apk (100A)
Max. Voltage CAT III 300V CAT II 600V CAT III 300V CAT II 600V
Power supply DC 5V DC 5V



Download

Datasheet


Adobe PDF

Micsig CP2000 Datasheet

File Size: 525.24 KiB
Release Date: 04.07.2017

Manual


Adobe PDF

CP2100 Manual

Language: English
File Size: 432.71 KiB
Release Date: 01.11.2019
