Description

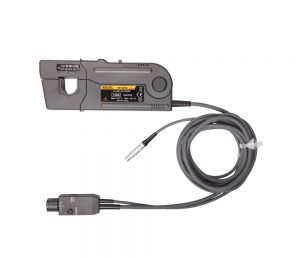

Micsig CP503B High Frequency AC/DC Current Probe 50MHz bandwidth, ≤ 7ns rise time
Features:
– Bandwidth: DC~50MHz
– Current Range: 6A / 30A
– DC Accuracy (Typical): ±1%±10mA (6A); ±1%±50mA (30A)
– Degaussing and Auto Zero sync completed
– Support Manual and Automatic Zero calibration
– Standard USB adapter power supply
– Overload flashing light indicator
| Model | CP503 | CP1003 | CP503B | CP1003B |
| Bandwidth | 50MHz | 100MHz | 50MHz | 100MHz |
| Rise time | ≤ 7ns | ≤ 3.5ns | ≤ 7ns | ≤ 3.5ns |
| Power interface | Micsig UPI* | Standard BNC | ||
| Range | 6A (@2X) / 30A (@10X) | |||
| Output sensitivity | 1V/2A (6A) 1V/10A (30A) |
|||
| DC accuracy (typical) | ±1% ±10mA (6A) ±1% ±50mA (30A) |
|||
| Delay | ＜6ns (6A) ＜6ns (30A) |
＜30ns (6A) ＜30ns (30A) |
||
| Input current range | 20mA~6Apk (6A) 50mA~30Apk (30A) |
|||
| Maximum current input | 30Apk, 60Apk-pk, 21.21Arms | |||
| Maximum working voltage | CAT II 300V | |||
| Maximum Floating Voltage | CAT II 300V | |||
| Maximum conductor diameter | 5mm | |||
| Overload indicator | Flashing light | |||
| Power Supply | DC 12V | DC 5V 3A | ||
