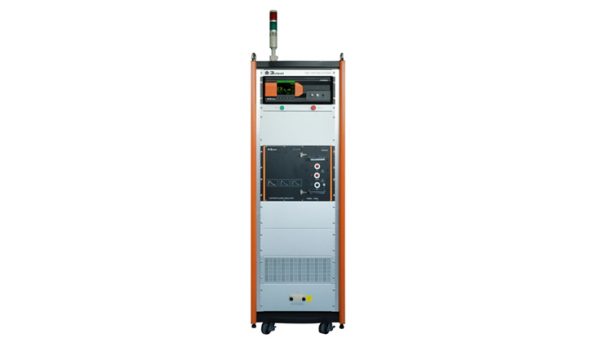

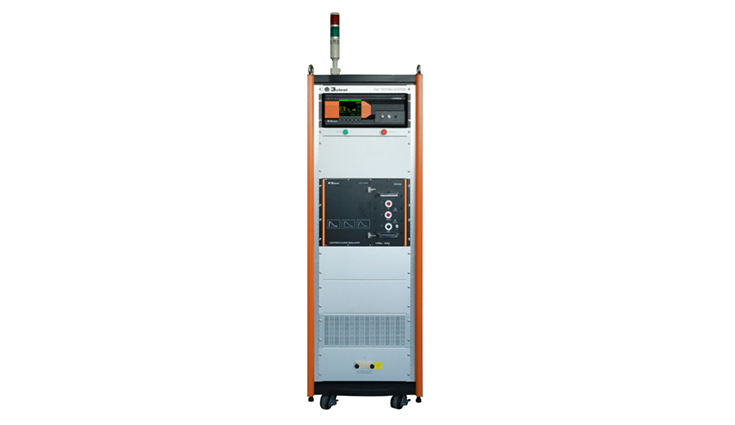

Multifunctional Lightning Surge Simulator

Description

The multi-functional lightning surge simulator CWS 1500MS/CWS 2000MS is developed and designed according to IEC 61000-4-5 and GB/T 17626.5 standards. It is equipped with plugged-in waveform module and can generate various surge pulse waveforms with the maximum pulse voltage up to 15 kV /20 kV. CWM series module can produce 1.2/50μs, 8/20μs high-voltage pulse waveform; TSM series module can produce 10/700μs, 5/320μs high-voltage pulse waveform; VWM series module can generate various voltage pulse waveform; ICM series modules can generate various current pulse waveforms.

Features：

5.7-inch color touch screen front panel operation
Pulse voltage up to 15kV/20kV.
Modular design, easy to replace and operate.
Can produce 1.2/50μs, 8/20μs combination wave; 10/700μs, 5/320μs combined wave; Various voltage waves; Various current waves.
Built-in surge voltage, current value monitoring operation screen display.
System built-in fault alarm function.
Test scheduling function, easy to operate.

Standard

IEC 61000-4-5
IEC 61643-1
GB/T 17626.5
GB/T 16927.1
ITU-T K.21
ITU T K.44

Specifications

Equipment Composition
CWS1500C/2000C	Combined wave lightning surge simulator-control module
CWM 1500/2000	1.2/50μs、8/20μs Combined wave module
TSM 1500/2000	10/700μs、5/320μs Combined wave module
VWM 1500/2000A	1.2/50μs Voltage wave module
VWM 1500/2000B	4/300μs Voltage wave module
VWM 1500/2000C	10/200μs Voltage wave module
ICM 55/75A	10/350μs Current wave module
ICM 1000B	4/10μs Current wave module
ICM 1000C	8/20μs Current wave module
ICM 18D/25D	10/1000μs Current wave module
CWM 1500/2000 Technical Parameters
Test Voltage Range	0.5 kV ～ 15（20）kV±10%
Voltage Rise Time	1.2μs± 30%
Voltage Duration	50μs±20%
Test Current Range	0.25 kA ～ 7.5（10）kA±10%
Current Rise Time	8μs±20%
Current Duration	20μs±20%
Output Impedance	2 ohm
Polarity	Plus, minus, plus and then minus
Time Between Experiments	8 s ～ 99 s
Voltage Peak Detection	Front panel BNC output :2000V: 1V; LCD displays the measured values
Current Peak Detection	Front panel BNC output :500A: 1V; LCD displays the measured values
Number of Test	1 ～ 999 times
Trigger Mode	Automatic, manual, external
Experiment Mode	Experimental parameters were scheduled
TSM1500/2000 Technical Parameters
Test Voltage Range	0.5 kV ～ 15（20）kV±10%
Voltage Rise Time	10μs± 30%
Voltage Duration	700μs±20%
Test Current Range	12.5 A ～ 375（500）A±10%
Current Rise Time	5μs±20%
Current Duration	320μs±20%
Output Impedance	15 ohm、40 ohm
Polarity	Plus, minus, plus and then minus
Time Between Experiments	11 s ～ 99 s
Number of Test	1 ～ 999 times
Trigger Mode	Automatic, manual, external
Experiment Mode	Experimental parameters were scheduled
VWM1500/2000A Technical Parameters
Test Voltage Range	0.5 kV ～ 15（20）kV±10%
Voltage Rise Time	1.2μs± 30%
Voltage Duration	50μs±20%
Output Impedance	500 ohm (Customizable)
VWM1500/2000B Technical Parameters
Test Voltage Range	0.5 kV ～ 15（20）kV±10%
Voltage Rise Time	4μs± 30%
Voltage Duration	300μs±20%
Output Impedance	20 ohm
VWM1500/2000C Technical Parameters
Test Voltage Range	0.5 kV ～ 15（20）kV±10%
Voltage Rise Time	10μs± 30%
Voltage Duration	200μs±20%
Output Impedance	6 ohm
ICM55/74A Technical Parameters
Charging Voltage Range	0.25 kV ～ 15（20）kV±10%
Test Current Range	9 A ～ 555（740）A±10%
Current Rise Time	10μs（-10% ～ +100%）
Current Duration	350μs±20%
Output Impedance	27 ohm
ICM1000B Technical Parameters
Charging Voltage Range	0.25 kV ～ 10 kV±10%
Test Current Range	0.25 kA ～ 10 kA±10%
Current Rise Time	4μs±10%
Current Duration	10μs±10%
Output Impedance	1 ohm
ICM1000C Technical Parameters
Charging Voltage Range	0.25 kV ～ 5 kV±10%
Test Current Range	0.5 kA ～ 10 kA±10%
Current Rise Time	8μs±10%
Current Duration	20μs±10%
Output Impedance	0.5 ohm
ICM18/25D Technical Parameters
Charging Voltage Range	0.25 kV ～ 15（20）kV±10%
Test Current Range	3 A ～ 180（250）A±10%
Current Rise Time	10μs（-10% ～ +100%）
Current Duration	1000μs±20%
Output Impedance	80 ohm
General Parameters
Display Screen	5.7-inch colorful touch screen
Operating Power Supply	AC 110 V / 220 V ±10%，50/60 Hz±5% (default AC 220 V 50 Hz in mainland China)
Fuse	6 A
Max Power	400 W
User storage space	PC storage
Communication Method	Ethernet
Failure Detection	In case of failure, the front panel LCD displays and interrupts the instrument work
Detection Output Mode	Standard 1 m BNC interface coaxial line
Dimension	35 U
Weight	About 200 kg
Hot Swappable	About 8 kg
Operating Temp.	15℃ ~ 35℃
Operating Humidity	45% ~ 75%
Operating Air Pressure	86kPa ~ 106kPa

10kV＜U≤20kV Example of the major lightning strike configuration scheme
instrument model	output waveform									output voltage	output current	output impedance
1.2/50 μs 8/20μs	10/700 μs 5/320 μs	1.2/50 μs	4/10 μs	4/300 μs	8/20 μs	10/200 μs	10/350 μs	10/1000 μs
CWM xxxx	√									0.25 – 20kV	0.5 – 10kA	2Ω
VWM xxxxA			√									500Ω
VWM xxxxB					√							20Ω
VWM xxxxC							√					6Ω
TSM xxxx		√								0.25 – 20kV		15/40Ω
ICM xxxxB				√						0.25 – 20kV	0.25 – 20kV	1Ω
ICM xxxxC						√				0.25 – 10kV	0.5 – 5kA	0.5Ω
ICM xxxxD									√	0.25 – 20kV	3 – 250A	80Ω
Note: “XXXX” in the table represents the optional voltage/current range. Example: CWM 1500 means the pulse voltage is up to 15kV.
