Multiple Waveforms Surge Generator SG

Model：SG 3483

SG 3483 surge generator adopted programmable controller and computer technologies on the basis of third-generation intelligent multi-functional comprehensive test generators.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

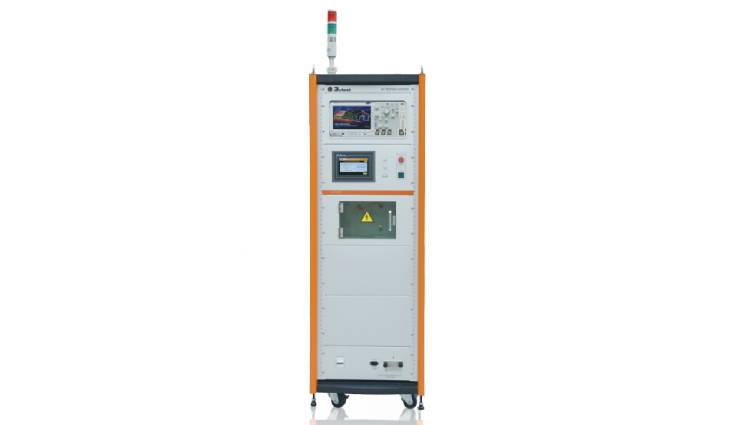

SG 3483 surge generator adopted programmable controller and computer technologies on the basis of third-generation intelligent multi-functional comprehensive test generators, which greatly simplifies the system composition and increase its reliability. The security of system can be improved in HV, heavy current tests to avoid the hazard coming from HV discharging transient process. On the unique colorful touch-screen design operation screen, the function of human-computer conversation can be realized. With easy operation, users can automatically conduct various tests through simple configuration on the page of parameter setup only. The product has the advantages of highly system integrity, intelligent control, easy operation and saving test time etc. Replacing different main loops can produce multiple waveforms.

Characteristics:

  • Colorful touch screen 7 inches LCD.
  • PLC control system, fully automatically control system.
  • Replacing different main loops can produce multiple waveforms.
  • One-touch test, equipped with programming function.
  • RS232 communication interface making remote control realizable.
  • Built-in grounded equipments and security lock double protection.

Standard

  • IEC 61000-4-5
  • GB/T 17626.5
  • GB/T 3482
  • GB/T 16896.1

Specifications

Technical Parameters
Model No. SG3483
Output Waveform Ⅰ 4±30%/300 μs±20% voltage waveform
Output Waveform Ⅱ 10±30%/200 μs±20% voltage waveform
Output Combination Waveform Ⅲ 10±30%/700 μs±20% voltage

waveform
5±30%/320 μs±20% current waveform
Output Peak Voltage 20 kV±10%
Voltage polarity Positive/Negative（automatic

switching）
Charging duration 20 s～999 s（Min. 10 s）
Uncertainty of Charging Voltage Less than 1%
Trigger Mode Auto/Manual, can be triggered for

single time
Trigger Accidental

Operation Rate

 Less than 1%
Trigger Range 100% rated charging voltage
Measurement Display Accuracy Better than 3%
Insulation Strength ≤500V RMS（Common-end

COMMCN ground reference PE）
Auxiliary Mains

Voltage

 220 V(±10%)/50 Hz
Auxiliary Mains

Current

 <10 A（continuous）
General Parameters
Measurement Display Accuracy Better than 1%
Trigger Mode Synchronized/ Asynchronized;

Auto/ Manual: can be triggered for single time
Operating Power Supply AC 110 V/220 V(±10%)，

50 Hz /60 Hz
Ambient Temperature 15℃-35℃
Humidity Range 45%-75%
Atmosphere Pressure Range 86 kPa-106 kPa
Coupling/

Decoupling Networks（External）

 Coupling/decoupling networks of single-phase or three-phase are optional.
Cabinet Dimension 19 Inches/ 35 U(600 mm x800 mm x1820 mm)

Downloads

Adobe PDF

Multiple Waveforms Surge Generator SG 3483 Series Datasheet

Language: English

Reviews

There are no reviews yet.

Be the first to review “Multiple Waveforms Surge Generator SG”

Your email address will not be published. Required fields are marked *

Related products

  • Surge Simulator

    Combination Wave Simulator CWS 120CT

    Model：CWS 120CT

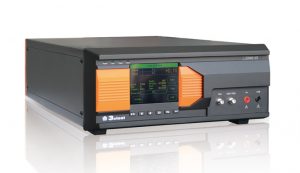

    CWS 120CT is a high-end testing equipment specially designed to simulate the phenomenon of low-voltage surge pulse interference.

    Model：CWS 120CT

    CWS 120CT is a high-end testing equipment specially designed t

    ...
    (0 reviews)
    Read more
  • Surge Simulator

    Combination Wave Lightning Surge

    Model：CWS 800CT

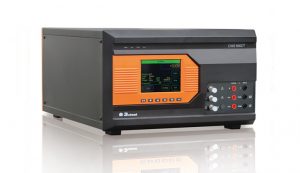

    CWS 800CT combination wave lightning surge simulator is a high-end test equipment specially designed for simulating surge pulse interference, which can generate high-voltage pulse waveforms of 1.2/50μs, 8/20μs, 10/700μs and 5/320μs.

    Model：CWS 800CT

    CWS 800CT combination wave lightning surge simulator is a high

    ...
    (0 reviews)
    Read more
  • Surge Simulator

    Impedance Box 500Ω SG-1.2/50-500

    Model：SG-1.2/50-500

    Impedance box 500Ω is used as a matched module for impedance of surge pulses to meet the test requirements of EUT impulse withstanding voltage testing.

    Model：SG-1.2/50-500

    Impedance box 500Ω is used as a matched module for impeda

    ...
    (0 reviews)
    Read more
  • Surge Simulator

    Communication surge immunity tester

    Model：CWS 2000C & CWS 2000T

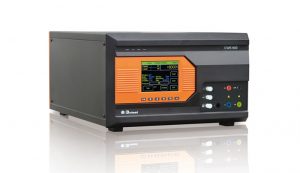

    CWS 2000C&CWS 2000T communication surge immunity tester is a high testing equipment specially designed to simulate surge pulse interference.
