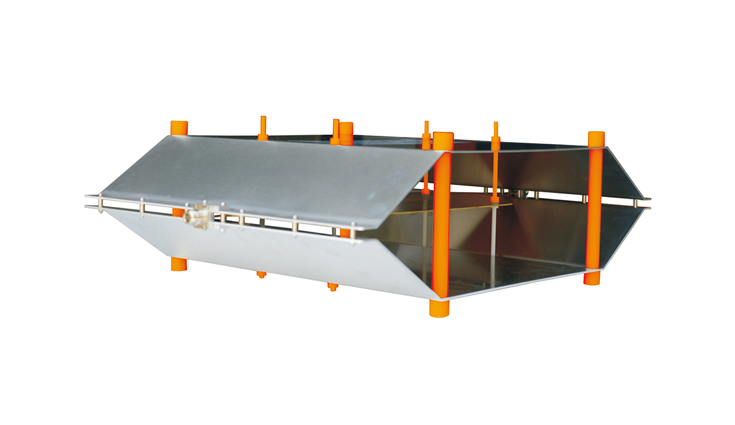

These open TEM cells are well suited for immunity testing of small automotive objects according to ISO 11452-3. The advantage of these TEM cells is that they are open and it is very easy to control the functions of the equipment under test.
| Technical parameters | |||
|---|---|---|---|
| Type | TEM 220 | TEM 500 | TEM 1000 |
| Frequency range | DC-220 MHz | DC-500 MHz | DC-1000 MHz |
| Height under plate | 364mm | 147mm | 73mm |
| Load impedance | 50 Ω | 50 Ω | 50 Ω |
| VSWR | <1.2 | <1.2 | <1.2 |
| Max. input power | 1500 W | 1000 W | 750 W |
| Maximum field | 800 V/m | 1500 V/m | 400 V/m |
| Field precision | ±5% | ±5% | ±5% |
| Input power interface | N type | N type | N type |
| Inner Dimension (LxWxH) | 1800×1600×730mm | 900×810×270mm | 540×450×148mm |
| Outer Dimensions (LxWxH) | 1900×1600×780mm | 970×810×320mm | 590×450×190mm |
The TBGTC1 open GTEM-cell adds the portfolio of low-cost open TEM-cells for EMC pre-compliance testing. Unlike TEM cells, which have limits at higher frequencies, GTEM cells may operate up to 6GHz.
2 years warranty
The TBGTC1 open GTEM-cell adds the portfolio of low-cost open TEM-cells for EMC pre-compliance testi
...
The M-version of the Tekbox TEM-cell, recommended for DUTs up to 180 x 180 x 70 mm and frequencies up to 1.15 GHz.
2 years warranty
The M-version of the Tekbox TEM-cell, recommended for DUTs up to 180 x 180 x 70 mm and frequencies u
...
Model：GTEM Cells
The GTEM Cells are designed for immunity tests for small size electrical and electronic devices.
Model：GTEM Cells
The GTEM Cells are designed for immunity tests for small size
...
The L-version of the Tekbox TEM-cell, recommended for DUTs up to 300 x 300 x 100 mm and frequencies up to 700 MHz.
2 years warranty
The L-version of the Tekbox TEM-cell, recommended for DUTs up to 300 x 300 x 100 mm and frequencies
...
