Description
Air core inductor 5uH is used for measurement of grounding self-inductive effect as per GMW 3172.
Features:
- Wide frequency range;

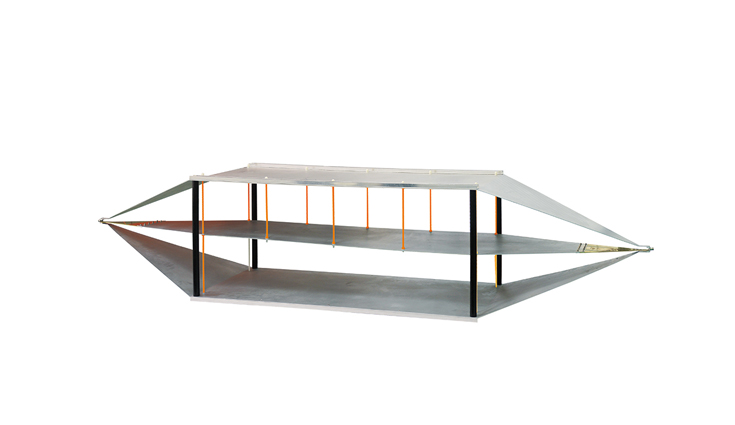

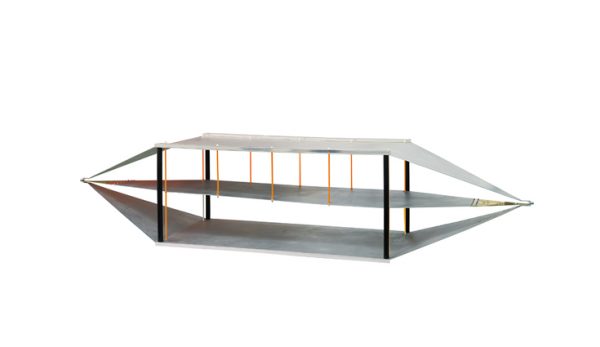

Open Transverse Electromagnetic Wave
Standard
- ISO 11452-3
- Mazda MES PW67602
Specifications
| Technical Parameters | |
|---|---|
| Frequency range | Max DC 1000 Hz |
| Septum height | 300 mm |
| Load resistance | 50 Ω |
| VSWR | < 2 |
| Max input power | 800 W |
| Max magnetic field strength | 500 V / m (±5%) |
| Input connector | N type |
| Dimension | 3,050 x 600 x 650 mm |
