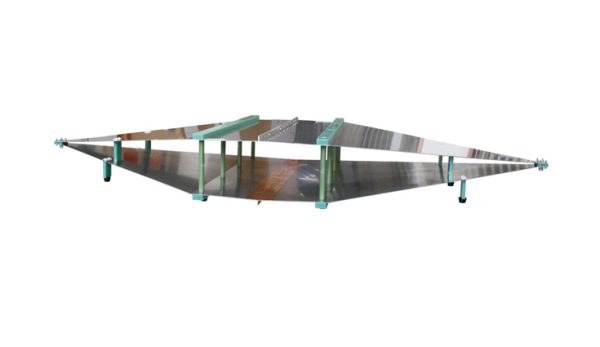

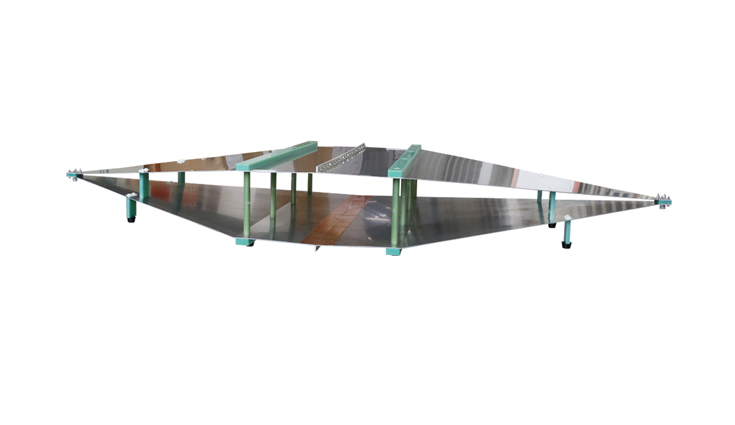

Based on the theory of transmission line waveguides, the characteristic impedance is 50 ohms, and electromagnetic waves propagate in the guided wave structure in the form of quasi TEM waves, generating a relatively uniform surface current on the electrode plate. Used for surface current probe calibration and calibration.

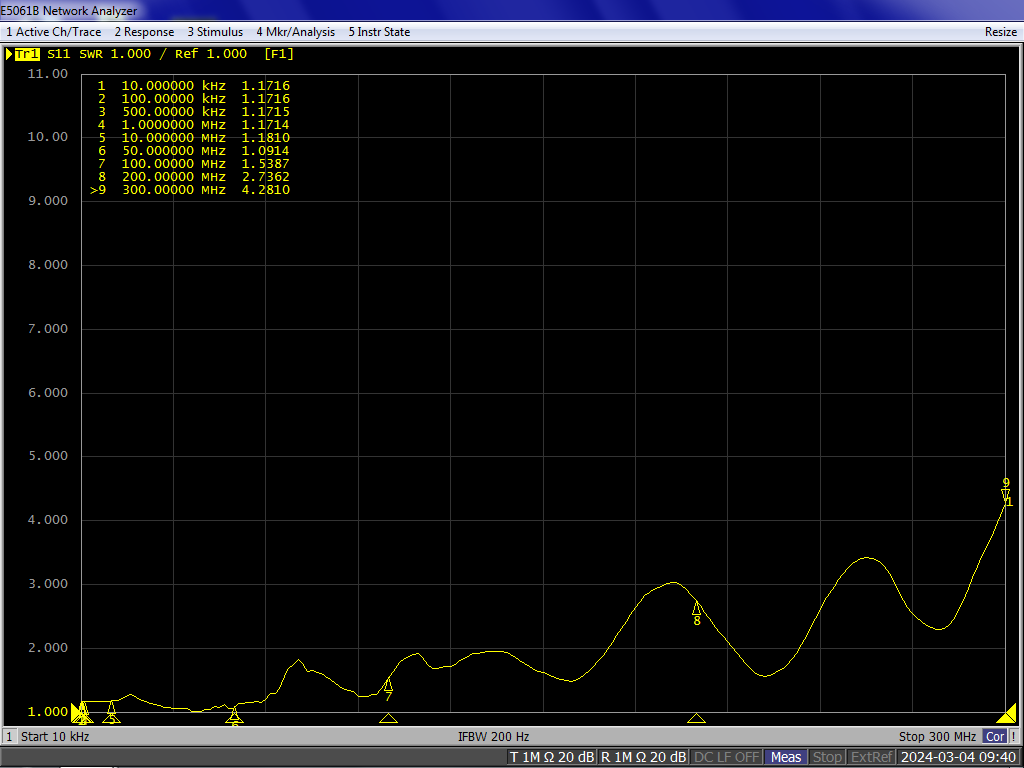

| Technical Parameters | |
|---|---|
| Frequency range | 0 Hz-300 MHz |
| Characteristic impedance | 50 Ω |
| Standing-wave ratio | ≤2（0 Hz-100 MHz）/≤5（100 MHz-500 MHz） |
| Workplace size | 500 mm×1000 mm×200 mm |
| Interface type | N-type |
| Outer Dimensions | 1400 mm (length) * 1000 mm (width) * 200 mm (height) |
| Weight | About 25 kg |
Model：CM 0302M
The CM 0302M is used for measuring alternating current and time domain pulse current in the frequency range from 5 Hz to 2 MHz.
Model：CM 0302M
The CM 0302M is used for measuring alternating current and time
...
Model：VSS 298
The spike voltage simulator VSS 298 is designed according to GJB 298 for the spike signal conduction immunity tests on power supply cables of aircrafts.
Model：VSS 298
The spike voltage simulator VSS 298 is designed according to GJB
...
Model：DOS-CS116

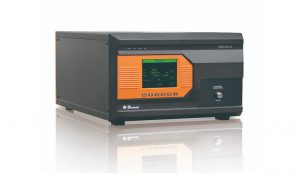

High Frequency Damped Sine Wave Generator DOS-CS116 is a high end generator which is designed to meet MIL-STD-461E/F/G CS116, GJB 151A-97 CS116.
Model：DOS-CS116
High Frequency Damped Sine Wave Generator DOS-CS116 is a high
...
Model：TWCM-500
Wideband current monitoring clamp TWCM-500 is used to measure 1 kHz ? 500 MHz alternating current and time-domain impulse current.
Model：TWCM-500
Wideband current monitoring clamp TWCM-500 is used to measure 1
...
