General parameters
|
|
Display
Screen
|
5.7-inch
TFT touch screen
|
|
Power
Supply for Battery Charger
|
AC
110 V / 220 V，(±10%)，50/60 Hz
|
|
Fuses
|
6 A
|
|
Maximum
Power Consumption
|
300 W
|
|
User
Storage Space
|
Infinite
(PC)
|
|
Communication
Methods
|
Ethernet
LAN、RJ45
|
|
External
Trigger Input
|
BNC,
5 V TTL
|
|
CRO Trigger
Output
|
BNC,
5 V TTL
|
|
Operation
Control input
|
BNC,
5 V TTL
|
|
External
Synchronous Input
|
45-65
Hz, 20-500 V between homonymous and heteronymous ends
|
|
Failure
Detection
|
When
it fails, the front panel LCD displays and interrupts the instrument’s
operation
|
|
Instrument
Working Status Indication
|
Front
panel LED indication, LCD display
|
|
Instrument
Grounding Connection Method
|
Using
a flat grounding wire
|
|
EUT Power
Supply Voltage Injection
|
5-core
industrial socket
|
|
Detection
Output Method
|
Standard
1-meter coaxial line
|
|

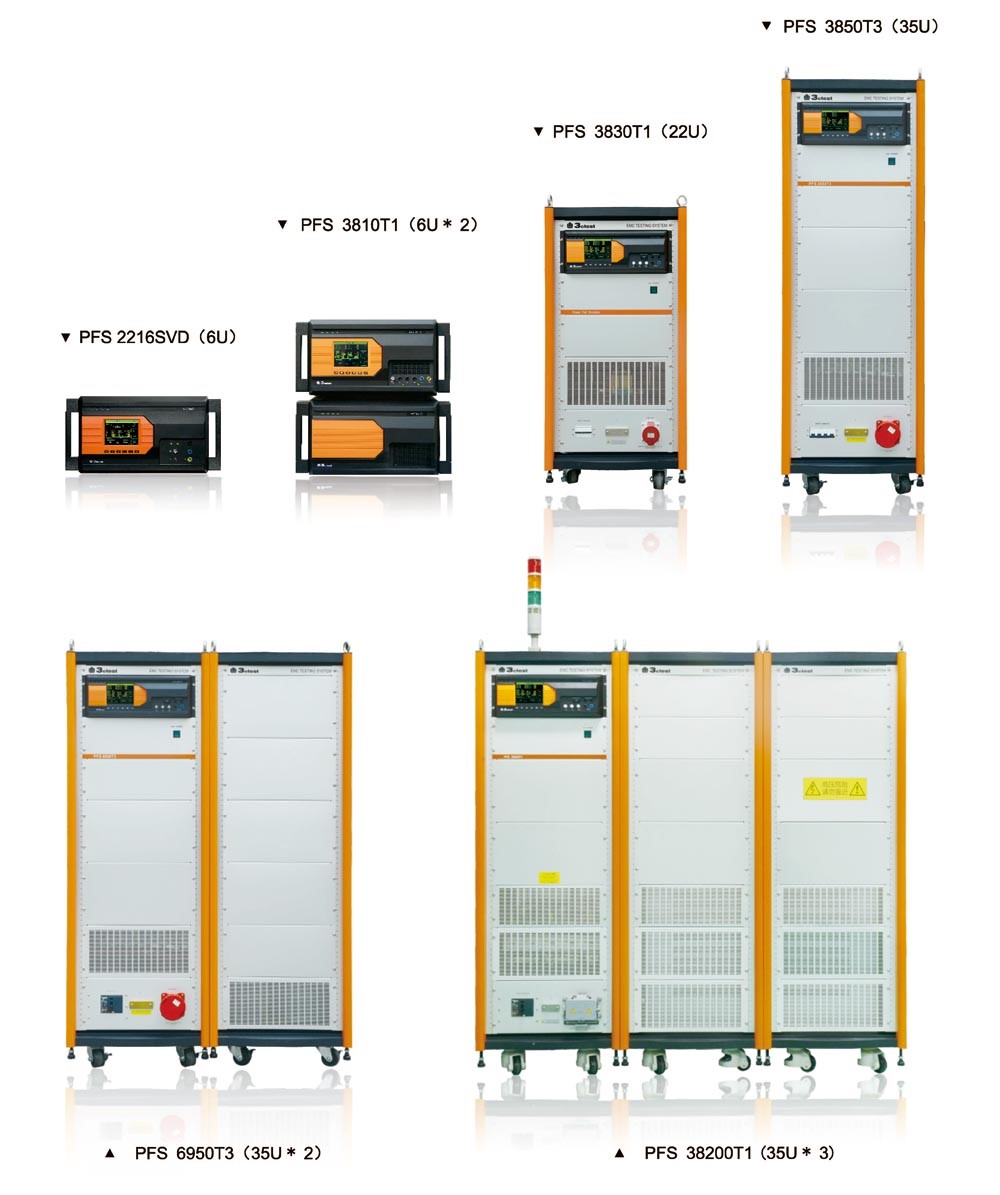

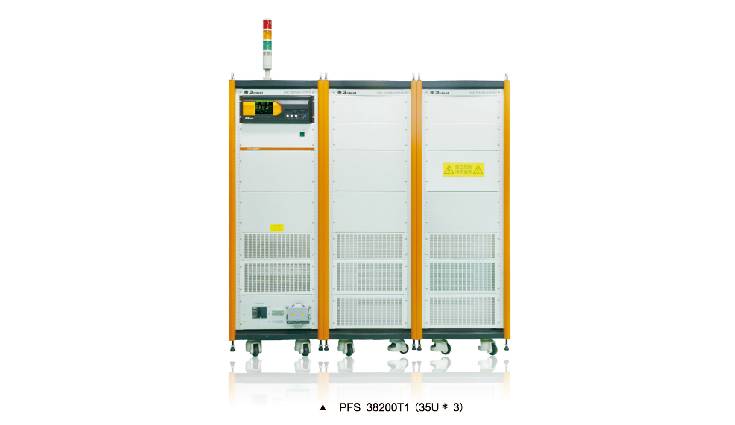

Dimension
|
19-inch
6U chassis or 19 inch/22U/35U cabinet
|
|
Weight
|
6U: approx
35kg 22U: approx 150kg
35U:
approx 380~467kg
|
|
Ambient
Temperature
|
15 ℃ – 35 ℃
|
|
Relative
Humidity
|
45%
– 75%
|
|
Atmospheric
Pressure
|
86
kPa – 106 kPa
|
|
Generator load capacity description
|
|
Generator
peak impact capability description
|
|
Rated
generator current
|
The
ability of the generator to withstand current shock
|
|
50 A
and below current
|
500 A
|
|
50.1
A to 100A current
|
1000
A
|
|
More
than 100 A current
|
Greater
than 1000 A
|
|
Generators
with rated current of 16 A and below comply with IEC 61000-4-11 load capacity
specification
|
|
Rated
generator current
|
Generator
load current capability
|
|
PFS
3810T1
PFS
3810T1V
|
12 A
AC/DC continuous current;
15 A
lasts 5 s;
25 A
lasts for 3 s;
|
|
PFS
3816T1
PFS
3816T1V
|
18 A
AC/DC continuous current;
23 A
lasts 5 s;
40 A
lasts for 3 s;
|
|
Power failure testing in accordance with IEC 61000-4-11&IEC 61000-4-34 standards
|
|
IEC/EN
61000-4-11, GB/T17626.11&IEC 61000-4-34, GB/T16626.34 Technical
parameters for single/three-phase AC power supply fault simulators with voltage
dips, short-term interruptions, and voltage changes
|
|
Maximum
Continuous Current of EUT
|

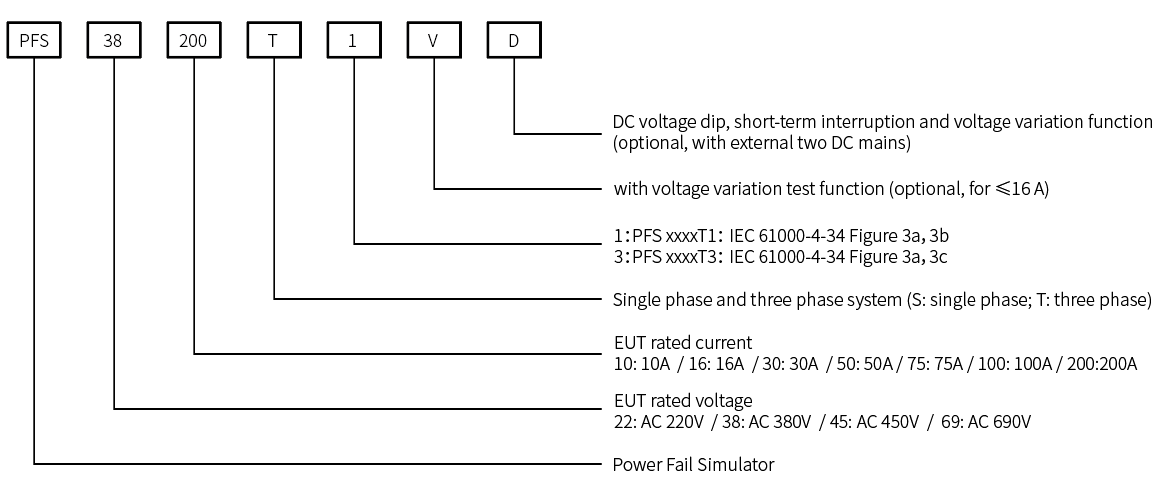

12 A (PFSxx10xxx series)
18 A (PFSxx16xxx series)
32 A (PFSxx30xxx series)
52 A (PFSxx50xxx series)
77
A (PFSxx75xxx series)
102 A (PFSxx100xxx series)
202 A (PFSxx200xxx series)
|
|
Resistance
to Impulse Current
|
50 A
and below products：500 A , Products above
50 A：1000 A
|
|
Protect
|
Built
in overcurrent, short circuit, overvoltage, overheating, surge, group pulse,
and electrostatic protection
Line
in and Line out ports can be selected with other external protection
accessories
|
|
Maximum
Input Voltage of EUT
|
Single-phase
250 V AC±5%，50/60 Hz±5% (300
V DC optional)
Three-phase:
PFS38xxxx
series：420 V AC，50/60 Hz±5%(300
V DC optional)
PFS45xxxx
series：480 V AC，50/60 Hz±5%(300
V DC optional)
PFS69xxxx
series：720 V AC，50/60 Hz±5%(300
V DC optional)
|
|
EUT Current
and Voltage Measurement
|
LCD
display
|
|
Interrupt
Level
|
0%
|
|
Voltage
Interruption Mode
|
Optional
voltage interruption for one phase, two phases, or three phases
|
|
Temporary
Voltage Drop
|
0%-100%
|
|
Voltage
Sag Method
|
Temporary
voltage drops between phase line and neutral line
Temporary
voltage drops between phase lines
PFSxxxxT1：GB/T17626.34 Figure3a、b/IEC61000-4-34: Figure3a、3b
PFSxxxxT3：GB/T17626.34 Figure3a、c/IEC61000-4-34: Figure3a、3c
|
|
Duration
of Temporary Suspension and Interruption
|
0.3-9999
cycles or 5 ms -99999 ms
(1
ms for models with suffix D)
|
|
Temporary
Lowering and Interruption Interval Time
|
10 ms
– 50000 ms
|
|
Temporary
Reduction and Interruption of Test Frequency
|
1 –
9999
|
|
Temporary
Descent, Interruption of Ascent, Descent Time
|
Generator
rated current of 75 A and below products: 1-5 μ s (standard resistance
verification)
Generator
rated current above 75 A products: 1-50 μ s (standard resistance
verification)
|
|
Voltage
Variation Level
(16A
and below optional)
|
0-100%
|
|
Voltage Change Reduction time
(16A and below optional)
|
500 ms to 9999 ms (50% -100%) or mutation
(same as temporary descent, interruption of ascent, descent time)
1000 ms to 9999 ms (0% -100%) or mutation
(same as temporary descent, interruption rise, descent time)
|
|
Voltage Change increase time
(16A and below optional)
|
500 ms – 9999 ms（50%-100%）
1000 ms – 9999 ms（0%-100%）
|
|
Duration of Voltage Change After Decrease
(16A and below optional)
|
10 ms – 99999 ms
|
|
Synchronization
|
0 ° -360 °, 1 ° step setting or random
mode
|
|
Trigger Method
|
Manual, automatic, external trigger input
|
