Power Frequency Magnetic Field Coil TCXS223

Model：TCXS223

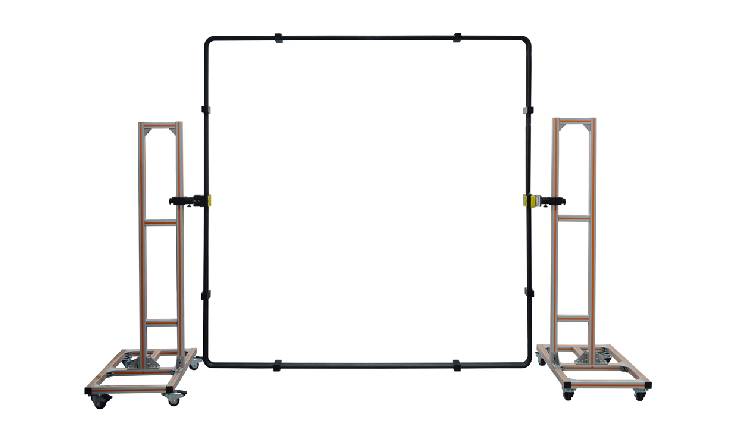

The Power frequency magnetic field coil TCXS223 is specially designed according to the characteristics and requirement of magnetic field immunity tests conducted on electrical and electronic products.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The Power frequency magnetic field coil TCXS223 is specially designed according to the characteristics and requirement of magnetic field immunity tests conducted on electrical and electronic products. It totally meets the requirement of IEC 61000-4-8, GB/T 17626.8, GB/T 17215:2002 and GB/T 15283: 1994. The power frequency magnetic field test is used to simulate the magnetic field environment of household, commercial, industrial, power plant, and medium or high voltage substation.

Features：

  • Magnetic field direction can be rotated 360° during test.
  • Stable magnetic field strength output.
  • Aluminum profile bracket structure design.

Standard

  • IEC 61000-4-8
  • GB/T 17626.8

Specifications

Technical Parameters
Magnetic Field Strength 1 A/m ~ 300 A/m
1.26 μT ~ 378 μT
Magnetic Field Direction 90° / 180°
Test Time ≤ 100 A/m: continuous for 8 h
100 A/m: less than 10 s
Coil Dimension 2000 mm (L) × 2000 mm (W), 3-turn
Ambient Temperature 15 ℃ ~ 35 ℃
Package Dimension 2440 mm (L) × 310 mm (W) × 2140 mm (H)
Weight Approx. 45 kg
