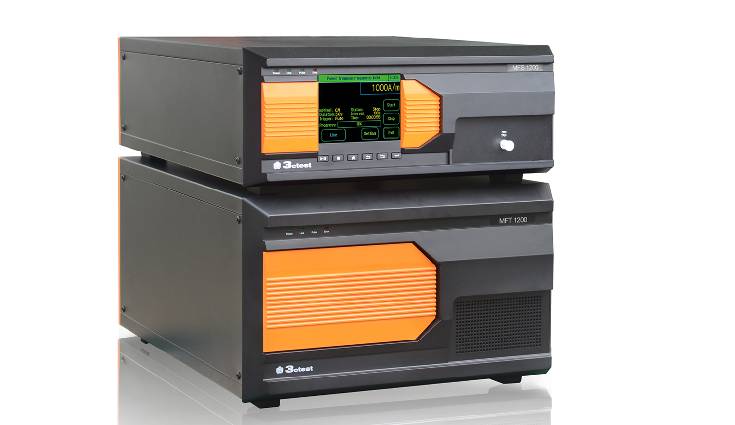

Power Frequency Magnetic Field Simulator MFS xxx Series

Model：MFS xxx Series

Power frequency magnetic field simulator MFS series is designed to conduct power frequency magnetic field immunity test of electrical and electronic products with high reliability.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Power frequency magnetic field simulator MFS series is designed to conduct power frequency magnetic field immunity test of electrical and electronic products with high reliability as per IEC/EN 61000-4-8 and GB/T17626.8. It can offer accurate reference for EUT during power frequency magnetic field immunity test. It is mainly to simulate the magnetic environment in residence, commercial and industrial district, power station, and low and high substation.

Features:

  • 5.7” color touch screen front panel
  • Fully in compliance with IEC 61000-4-8 test requirements
  • Electromagnetic relay protection with voltage/current higher than rated values
  • Over-temperature protection
  • Test sequencing via control software AutoLab
  • Ethernet RJ45 for PC remote control
  • Easy test report generation

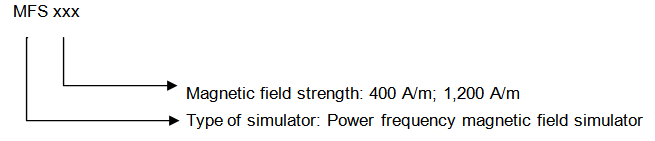

Naming Rules

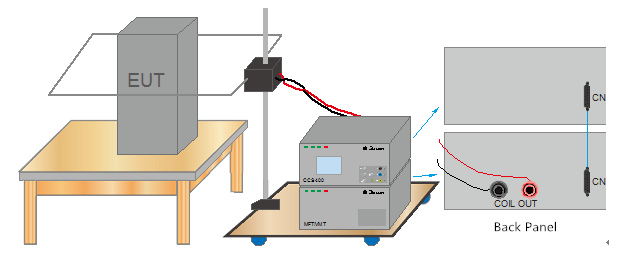

Equipment Connection Diagram

Standard

  • IEC 61000-4-8
  • GB/T 17626.8
  • EN 61000-4-8

Specifications

Technical Parameters
As per Standards IEC/EN 61000-4-8, GB/T 17626.8
Magnetic Field Strength MFS 400: 1 A/m – 100 A/m (continuous), 100 A/m – 400 A/m (1 s – 10 s, short-term) (with TCXS 111 single-turn 1,000 × 1,000 mm square coil);
MFS 1200: 1 A/m – 300 A/m (continuous), 300 A/m – 1,200 A/m (1 s – 10 s, short-term) (with TCXS 113 three-turn 1,000 × 1,000 mm square coil)
Output Accuracy Less than 1 dB (Minimal magnetic field strength such as 1 A/m shall be calibrated manually before test)
Current Waveform 50 Hz/60 Hz sinusoid
Current Distortion <5%
Pulse Interval 1 s – 9,999 s
Test Duration 1 s – 28,800 s
Triggering Mode Automatic, manual, or external signal triggering
Coil Size 1,000 × 1,000 mm or other
Coil Shape Square/Circular
General Parameters
Display Screen 5.7 inch TFT touch screen
Operating Power Supply 110V/220V, ±10%, 50/60Hz (AC 220V 50Hz by default)
Fuse 6 A
Max. Power Consumption 100 W
Memory Space Infinite (PC)
Communication Method Ethernet LAN, RJ45
Output Method Standard 1 m coaxial cable
Dimension 19 inch/6U/4U
Weight Approx. 35 Kg + 68 Kg
Operating Temperature 15–35 ℃
Operating Humidity 45%–75%
Operating Air Pressure 86 kPa–106 kPa

Downloads

Adobe PDF

Power Frequency Magnetic Field Simulator MFS xxx Series Series Datasheet

Language: English
