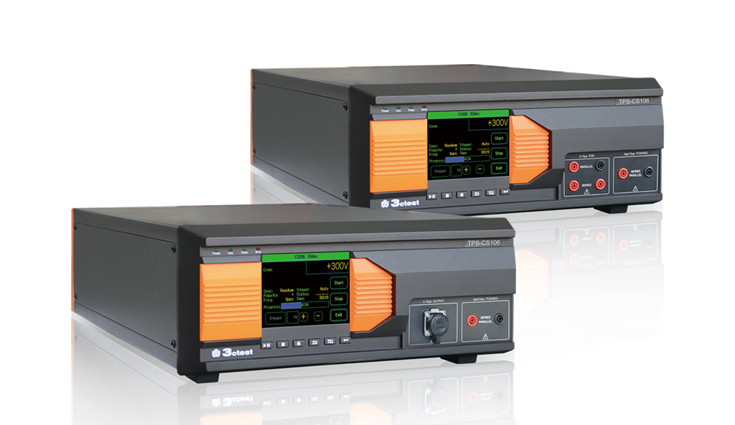

Power Leads Spike Pulse Generator TPS-CS106

Model：TPS-CS106

Power leads spike pulse generator TPS-CS106 is designed for CS106 test requirements specified in MIL-STD-461F, GJB 151A, GJB 152A and GJB 151B.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The TPS-CS106 is designed for CS106 test requirements specified in MIL-STD-461F, GJB 151A, GJB 152A and GJB 151B. It can apply pulses with repetition frequency 1 Hz～20 Hz onto EUT input power leads(not including grounds). Test duration time is up to 30 minutes, and pulse voltage linear adjustment from 0 V to 600 V can be realized. TPS-CS106 is designed on the 3rd generation intelligent control platform of our company with unique colorful touch screen interface and excellent human-machine function. It features easy operation, high system integration, intelligent control and saving test time, etc.

Features:

  • 5.7” colorful touch screen operation;
  • Meet the test requirement of CS106 in MIL-STD-461F, GJB 151A, GJB 152A and GJB 151B;
  • Automatically identify multiple failures;
  • Built-in 0.15 μs coupling transformer;
  • Max. EUT load current 300 A;

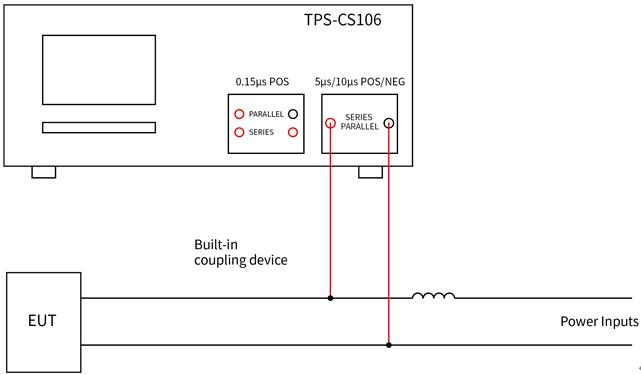

Test connection figure 1:      5/10us series test

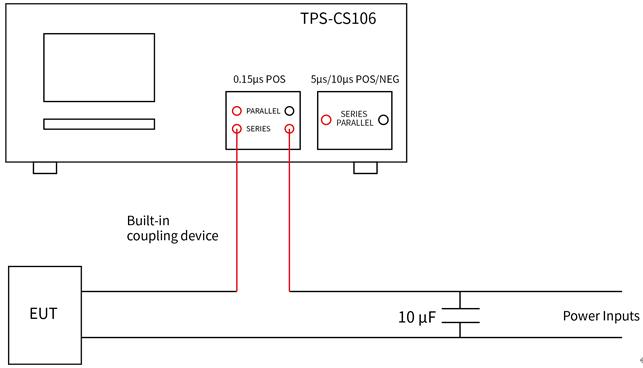

Test connection figure 2:     0.15us series test

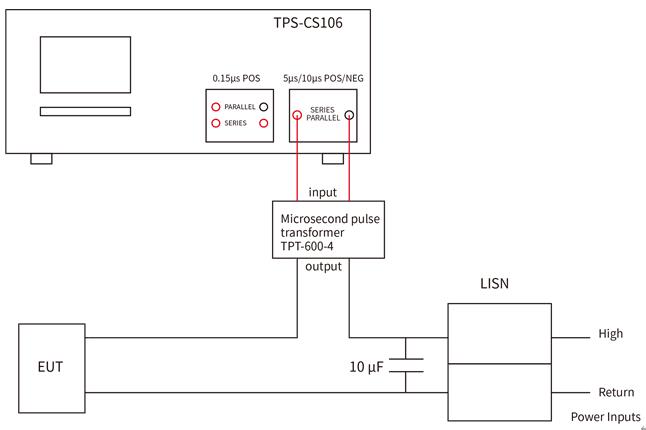

Test connection figure 3:      5/10us Parallel test

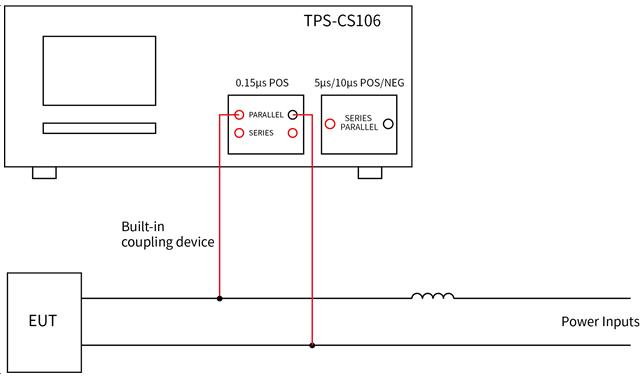

Test connection figure 4：  0.15us Parallel test

Standard

  • GJB 151B-2013
  • GJB151A-1997
  • GJB152A-1997
  • MIL-STD-461F

Specifications

Technical Parameters
Test Voltage Range 0 V ~ 600 V (liner adjustment）
Calibration Voltage 100 V ~ 600 V
GJB 151A-1997

GJB 152A-1997

Waveform parameters and impedance

 0.15 μs pulse (50% ~ 0%) ≤0.15 μs

(＜5 ohm)
5 μs pulse (50% ~ 0%) ≤5 μs

(＜2 ohm)
10 μs pulse (50% ~ 0%) ≤10 μs

(＜1 ohm)
MIL-STD-461F

GJB 151B

Waveform parameters and impedance

 rise time 1.5 μs±0.5 μs
fall time 3.5 μs±0.5 μs
duration time 5.0 μs（1±20%）
sag or undershoot amplitude ≤30% Vp
sag or undershoot time ＜20 μs
source impedance ≤2 Ω
Output Polarity +/- (only positive for 0.15 μs)
Trigger External, automatic and manual
Pulse repetition frequency 1~20 pulses per second
External Phase Sync 0°~360°, mains frequency 50 Hz~1000 Hz, available for async
Parallel Connection Built-in 5 μs/10 μs coupling transformer

External 0.15 μs coupling transformer
Series Connection External 5 μs/10 μs coupling transformer (32 A, 50 A, 100 A, 200 A & 300 A are available, higher current is customizable);

Built-in 0.15 μs coupling transformer (32 A, 50 A);

External 0.15 μs coupling transformer (100 A, 200 A, 300 A available, higher current is customizable);
Output Ports 4 mm plugs
Calibration Resistance External
General Parameters
Display Screen 5.7” TFT touch screen
Power Supply AC 220 V 50 Hz
Fuse 6 A
Max. Power Consumption 200 W
Dimension 19”/6U
Weight Approx.20 kg
Ambient Temperature 15 ℃~35 ℃
Relative Humidity 45% – 75%
Atmospheric Pressure 86 kPa – 106 kPa
