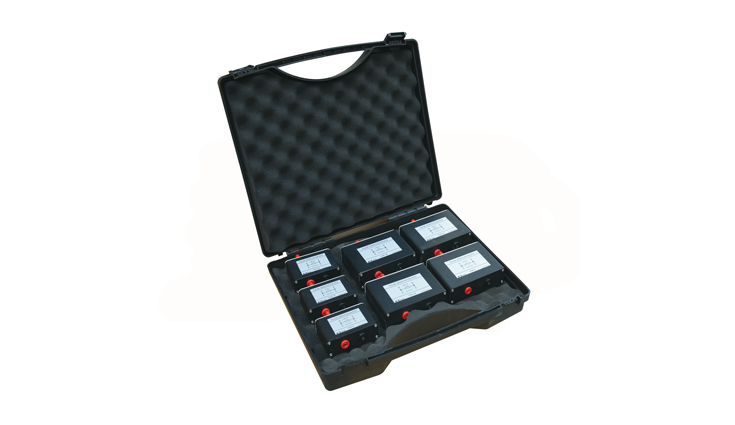

Pulse Verification Kit

Many pulses are defined in ISO 7637-2. When these pulses are verified, load impedance should conform to the standard requirement.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Many pulses are defined in ISO 7637-2. When these pulses are verified, load impedance should conform to the standard requirement. The repeatability of verification depends on many factors, including oscilloscope compensation and high-quality non-inductive load etc. The pulse verification kit supplied by 3ctest is totally meet the requirement of pulse verification in ISO 7637-2 and widely used in laboratory pulses verification.

Features：

  • High precision non-inductive resistor;
  •  Coaxial terminal output port;
  •  Test voltage up to DC 1000 V;

Standard

  • ISO 7637-2

Specifications

Model Impedance[Ω] Resolution [%] Power [W] Umax [Vpp]
PVK 05 0.5 — 50 800
PVK 1 1 — 50 800
PVK 2 2 1 50 800
PVK 4 4 1 50 800
PVK 10 10 1 10 800
PVK 20 20 1 10 800
PVK 30 30 1 10 800
PVK 50 50 1 10 800

Downloads

Adobe PDF

Pulse Verification Kit Datasheet

Language: English
