Radiating Loop TBR 1500

Model：TBR 1500

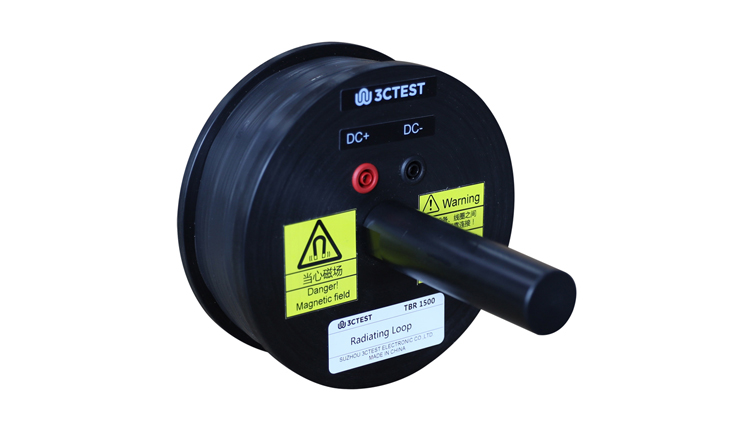

The TBR 1500 radiation ring can generate a strong DC magnetic field under the driving of a small current.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The TBR 1500 radiation ring can generate a strong DC magnetic field under the driving of a small current, meeting the testing requirements of ISO11452-8:2015 Road vehicles component test methods for electrical disturbances from narrowband radiated electrical energy Part 8: Immunity to magnetic fields standard. It has the characteristics of small size and convenient mobile testing and can also be used for other strong magnetic field immunity tests.

Features：

  •  Large dynamic range of magnetic field strength
  •  Accurate positioning of experimental distance
  •  Can be used for large-scale EUT zoning irradiation tests

Standard

  • ISO 11452-8
  • MIL-STD-461E/F/G
  • GJB151A/B RS101

Specifications

Technical Parameters
Radiant Ring Diameter 120 mm
Number Of Turns 225
Maximum Magnetic Field Strength 15000 A/m
Radiation Loop Factor 855
Maximum Driving Current 20 Amperes（DC）
Wiring Terminals 4mm banana socket
Size φ160×200 mm
Weight 3.58 kg

Downloads

Adobe PDF

Radiating Loop TBR 1500 Datasheet

Language: English
