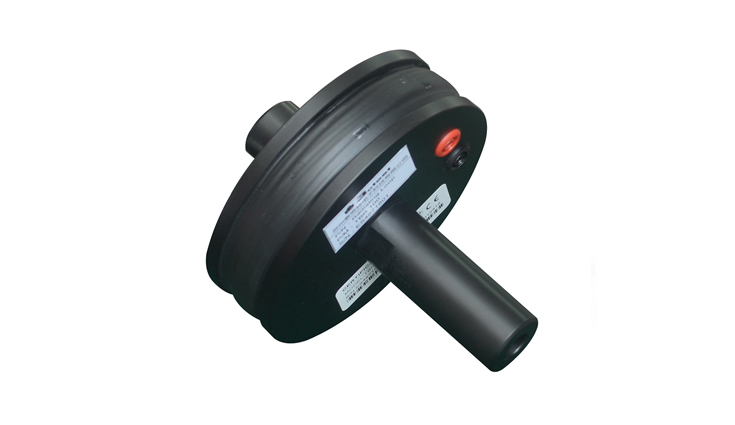

TBR 100 is used in magnetic field disturbance immunity tests together with high-resistance voltmeter for precise measuring of the magnetic field strength. it is placed at 50 mm distance from the EUT to generate specific magnetic field strength.
| Technical Data | |
|---|---|
| Frequency | Max DC 150 kHz |
| Magnetic Field Strength | ≤1000 A/m |
| Ring Diameter | 120 mm |
| Turns | 20 |
| Distance from the ring center to measuring surface | 50 mm |
| Max current (RMS) | 20 A |
| Connection | 4 mm banana plug |
| Wire Diameter | 2 mm copper (AWG 12) |
| Dimension (L x W x H) | Φ132 x 150 mm |
| Weight | 1 kg |
Model：TBR 1500
The TBR 1500 radiation ring can generate a strong DC magnetic field under the driving of a small current.
Model：TBR 1500
The TBR 1500 radiation ring can generate a strong DC magnetic f
...
Model：CN 200
CN 200 coupling transformer is easy to use, including two audio transformers and one configurable 0.5 Ω/250 W load resistor.
Model：CN 200
CN 200 coupling transformer is easy to use, including two audio t
...
Model：TBM 100
Magnetic field sensor TBM 100 is used in magnetic field disturbance immunity tests together with high-resistance voltmeter for precise measuring of the magnetic field strength.
Model：TBM 100
Magnetic field sensor TBM 100 is used in magnetic field disturba
...
Model：LFS 200
Low-frequency DC signal source LFS 200 can generate sine wave, to simulate ripple noise, in compliance with many relevant standards of automobile manufacturers.
Model：LFS 200
Low-frequency DC signal source LFS 200 can generate sine wave, t
...
