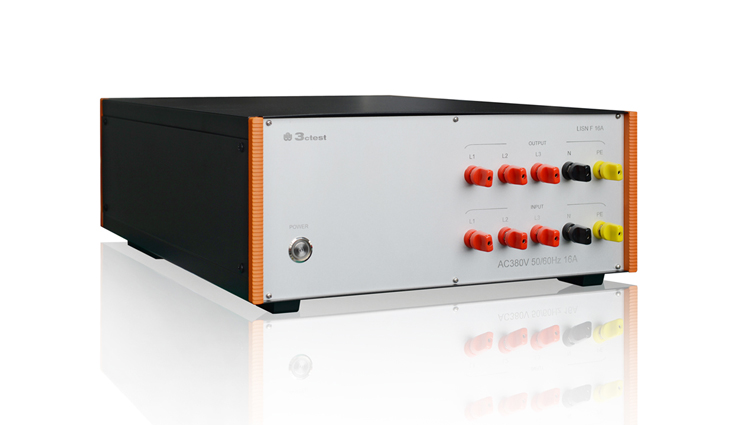

Reference Impedance LISN F 16A

Model：LISN F 16A

The LISN F 16A is designed according to GB/T 17625.2 and applicable to voltage fluctuation and flicker test impressed on three-phase power. Similar terminals are designed respectively on front and rear panel to make test connection easy.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The LISN F 16A is designed according to GB/T 17625.2 and applicable to voltage fluctuation and flicker test impressed on three-phase power. Similar terminals are designed respectively on front and rear panel to make test connection easy. Safe banana plug is adopted to guarantee users’ safety.

Features：

  • Totally meet the requirement specified in GB/T 17626.2;
  • Terminals on front and rear panel can be used independently to satisfy the connection requirement of different test location;
  • Banana plugs make test safe and reliable;

Standard

  • GB 17625.2-2007

Specifications

Technical Parameters
Impedance 0.24 Ω+jx0.15 Ω/50 Hz
0.16 Ω+jx0.1 Ω/50 Hz
Voltage AC 380 V (phase-to-phase)/ 50 Hz
Current 16 A
General Parameters
Power supply AC 110/220 V, ±10%, 50 Hz/60 Hz (±5%) (Default AC 220 V 50 Hz in mainland China)
Ambient Temperature 15 ℃ ~ 35℃
Dimension 4 U
Weight Approx. 17.28 kg

Downloads

Adobe PDF

Reference Impedance LISN F 16A Datasheet

Language: English
