Rigol DG1022A

Code: DG1022A

High quality 2 channel function / arbitrary waveform generator with 25 MHz bandwidth, 100 MSa/s and 4 kpts memory.

Now includes NABL Calibration Certificate.

3 years warranty

₹89,302.00 ₹83,721.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

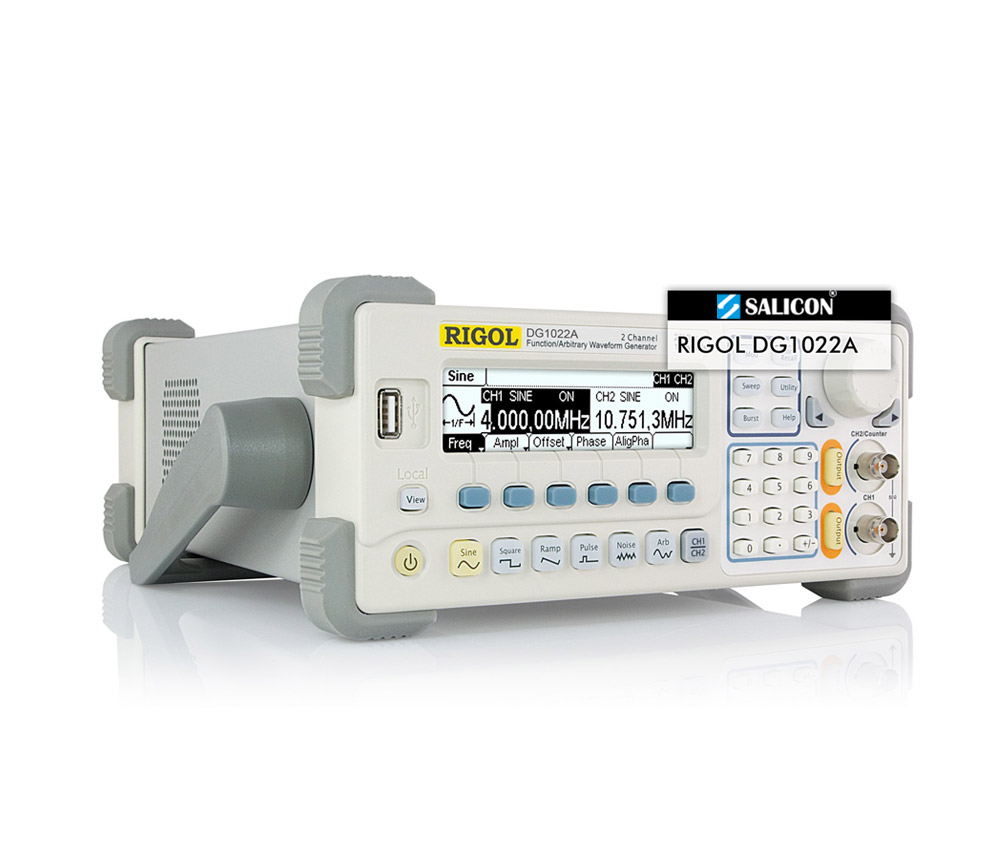

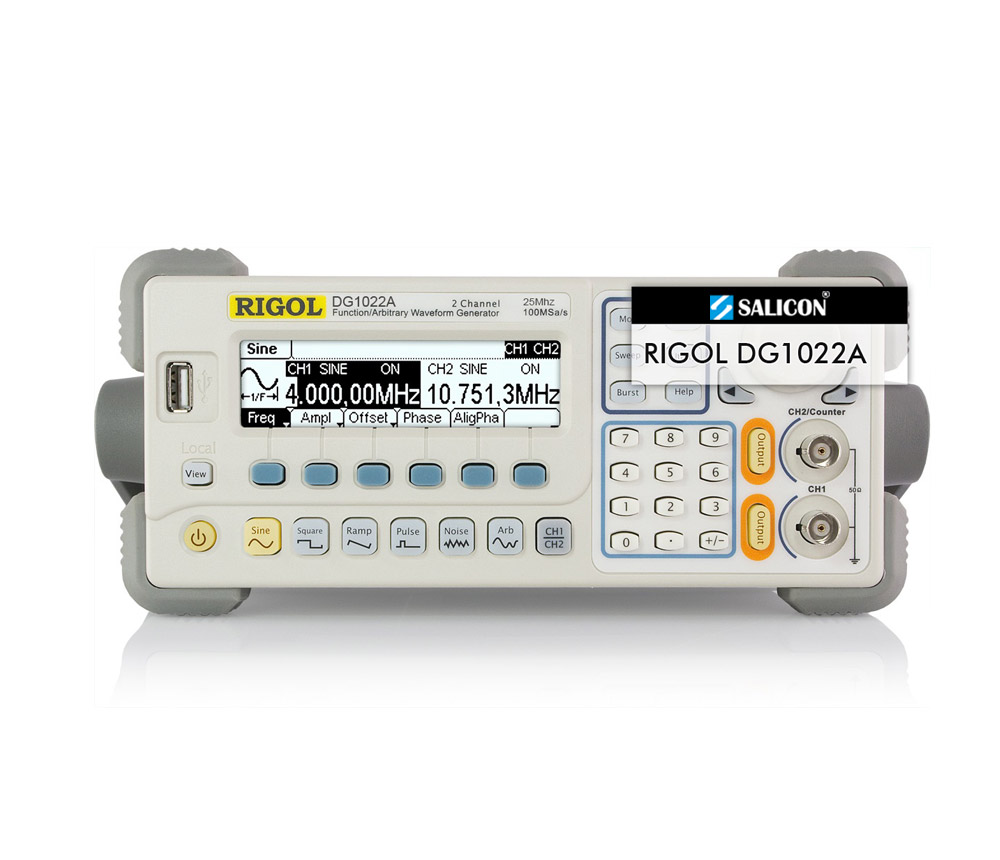

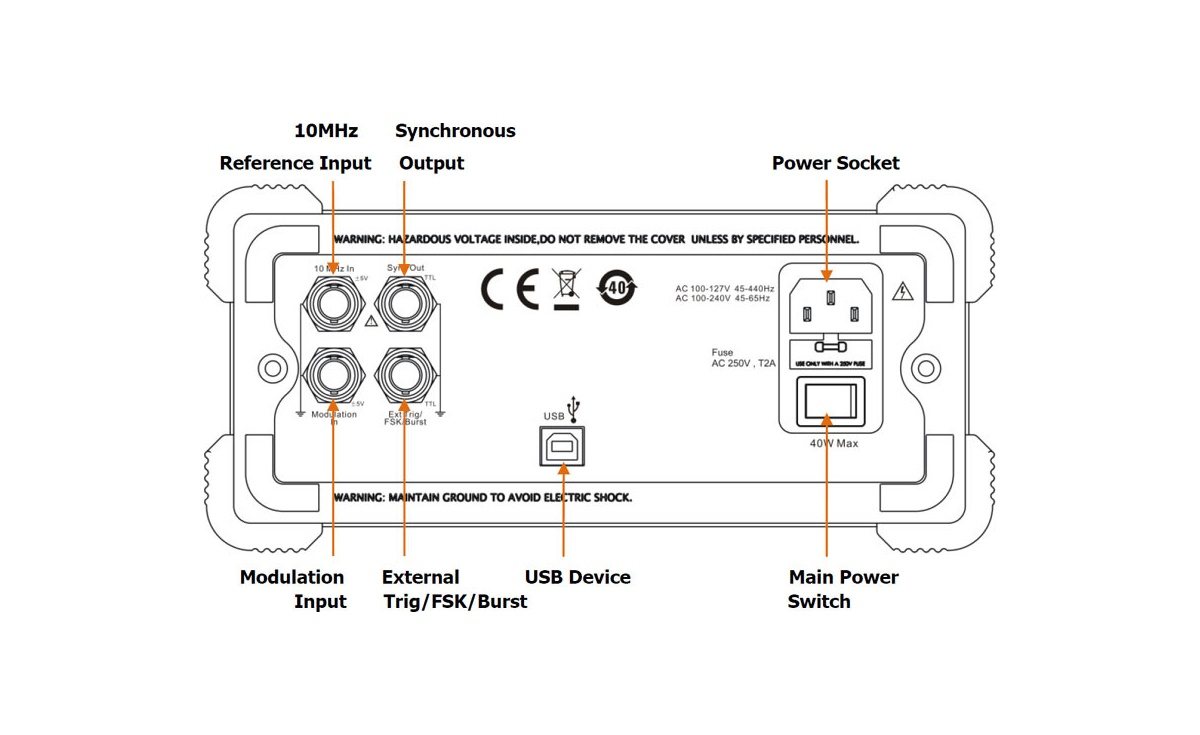

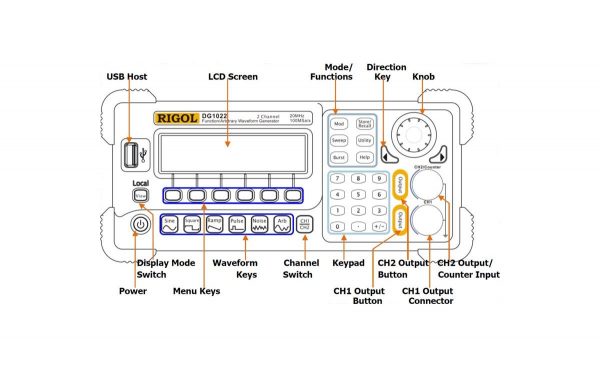

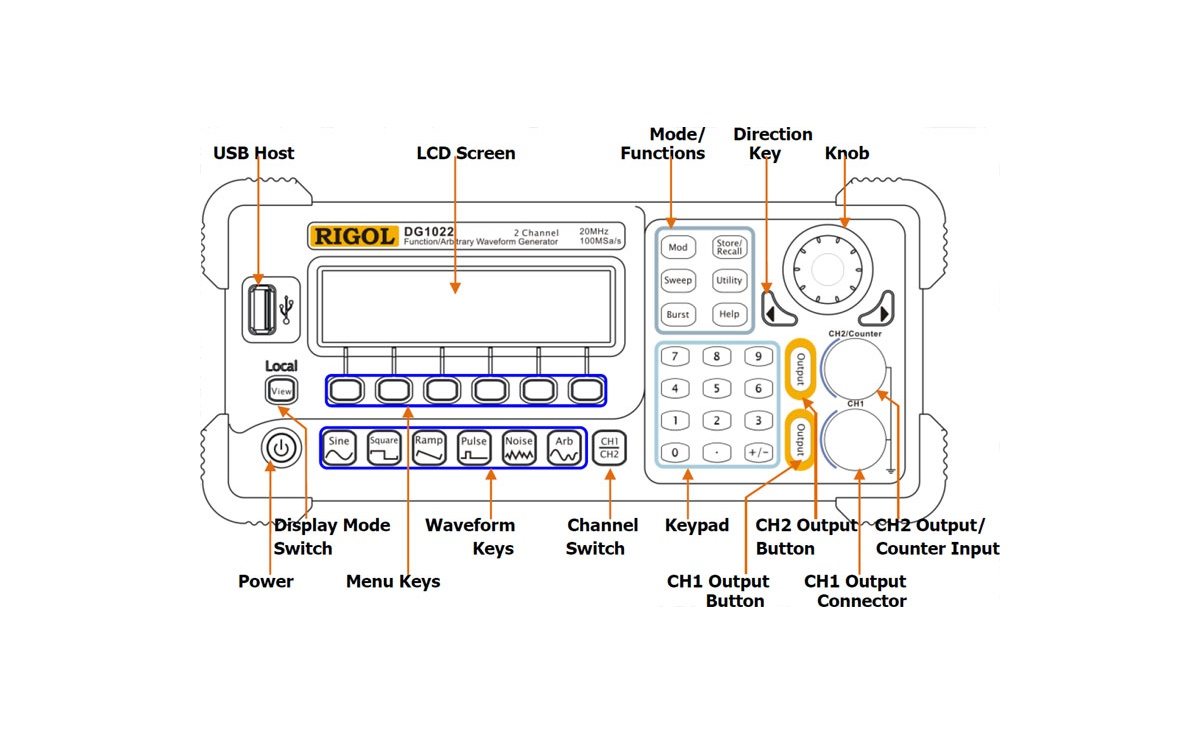

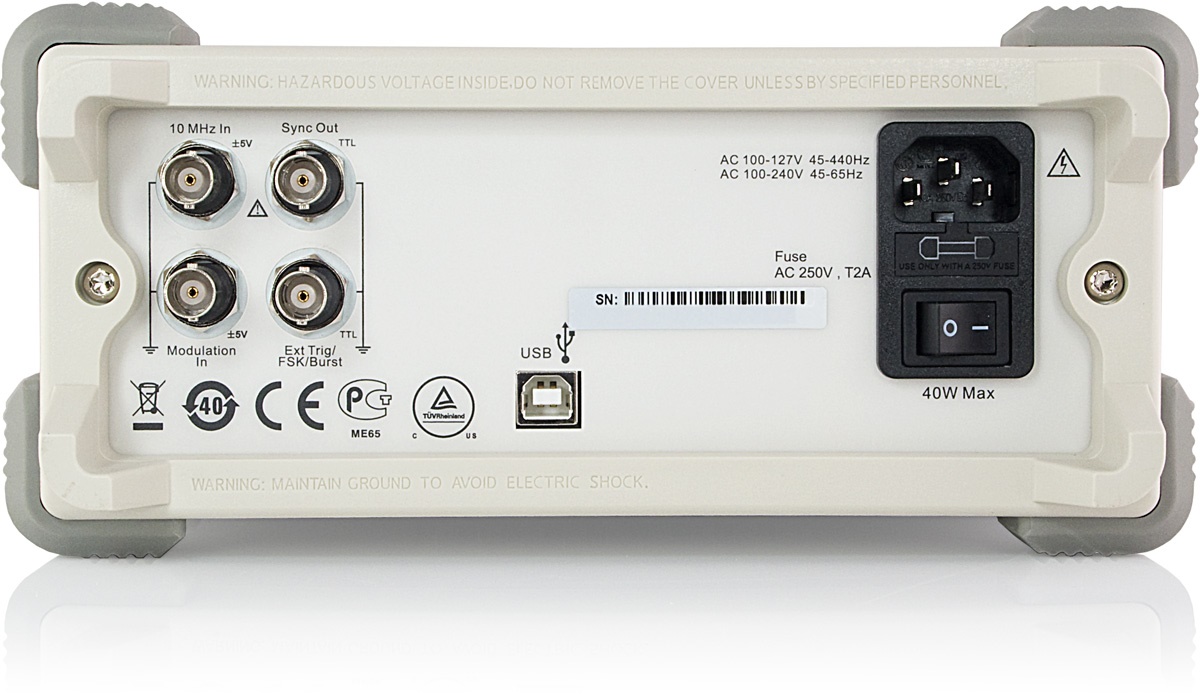

The Rigol DG1022A is a 2 channel Function / Arbitrary Waveform Generator to create high quality signals up to 25 MHz (Sine). Beside the two analog outputs, the device includes a 200 MHz frequency counter, an USB-Host- and an USB-device interface.

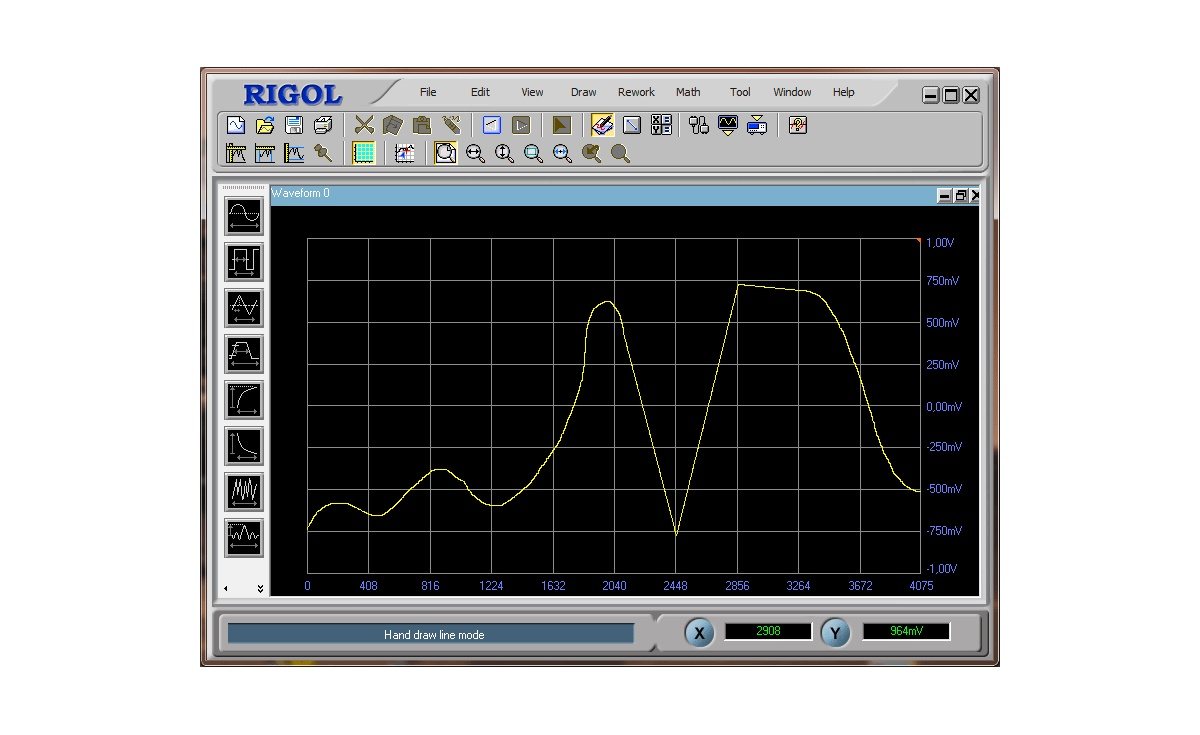

The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Accessories

  • ACCESSORIES

    Rigol Attenuator 40 dB

    BNC connectors, DC to 1 GHz, 50 Ohm/1 W

    BNC connectors, DC to 1 GHz, 50 Ohm/1 W

    ...
    (0 reviews)
    ₹5,853.00 ₹5,487.00 Add to cart
  • ACCESSORIES

    Rigol PA1011

    NF power amplifier for waveform-generators.

    NF power amplifier for waveform-generators.

    ...
    (0 reviews)
    ₹57,395.00 ₹53,808.00 Add to cart

Downloads

Datasheet

DG1022 Datasheet

File Size: 331.90 KiB

DG1022/A Datasheet

File Size: 213.03 KiB

Manual

Rigol DG1022(A) Manual

Language: English
Version: UGB06139-1210
File Size: 1.76 MiB

Rigol DG1022(A) Quick Guide

Language: English
Version: QGB06106-1110
File Size: 516.79 KiB

Rigol DG1022(A) SCPI Programming Guide

Language: English
Version: PGB06109-1110
File Size: 1.37 MiB

Rigol How To: Instrument Communication VISA / USB

Language: English
File Size: 435.80 KiB

Software

NI-VISA Runtime Engine 15.0

Version: 15.0
File Size: 83.96 MiB
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)

NI VISA Runtime

Rigol Ultrawave DG1022A Software

Version: 00.01.04
File Size: 83.40 MiB

Ultrawave Download

File Size: 13.18 MiB

Specifications

Function Function / Waveform Generator Rigol DG1022A
Channels 2
Signal Output Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise

CH1 only: AM, FM, PM, FSK, Sweep, Burst and Sync Output
Vertical Resolution 14 bit (Channel 1)

10 bit (Channel 2)
Amplitudes Channel 1:

≤ 20 MHz: 2 mVpp ~ 10 Vpp (50 Ω)

> 20 MHz: 2 mVpp ~ 5 Vpp (50 Ω)

4 mVpp ~ 20 Vpp (high impedance)

Channel 2:

2 mVpp ~ 3 Vpp (50 Ω)

4 mVpp ~ 6 Vpp (high impedance)
DC Offset Channel 1:

±5 V (50 Ω)

±10 V (high impedance)

Channel 2:

±1.5 V (50 Ω)

±3 V (high impedance)
Sample Rate 100 MSa/s
Frequency Range Sine 1 µHz – 25 MHz
Frequency Range Rectangle 1 µHz – 5 MHz
Frequency Range Pulse 500 µHz – 5 MHz
Frequency Range Ramp 1 µHz – 500 KHz
Frequency Range Arbitrary 1 µHz – 5 MHz
Frequency Range Noise 5 MHz (-3db)
Resolution 1 µHz
