Description

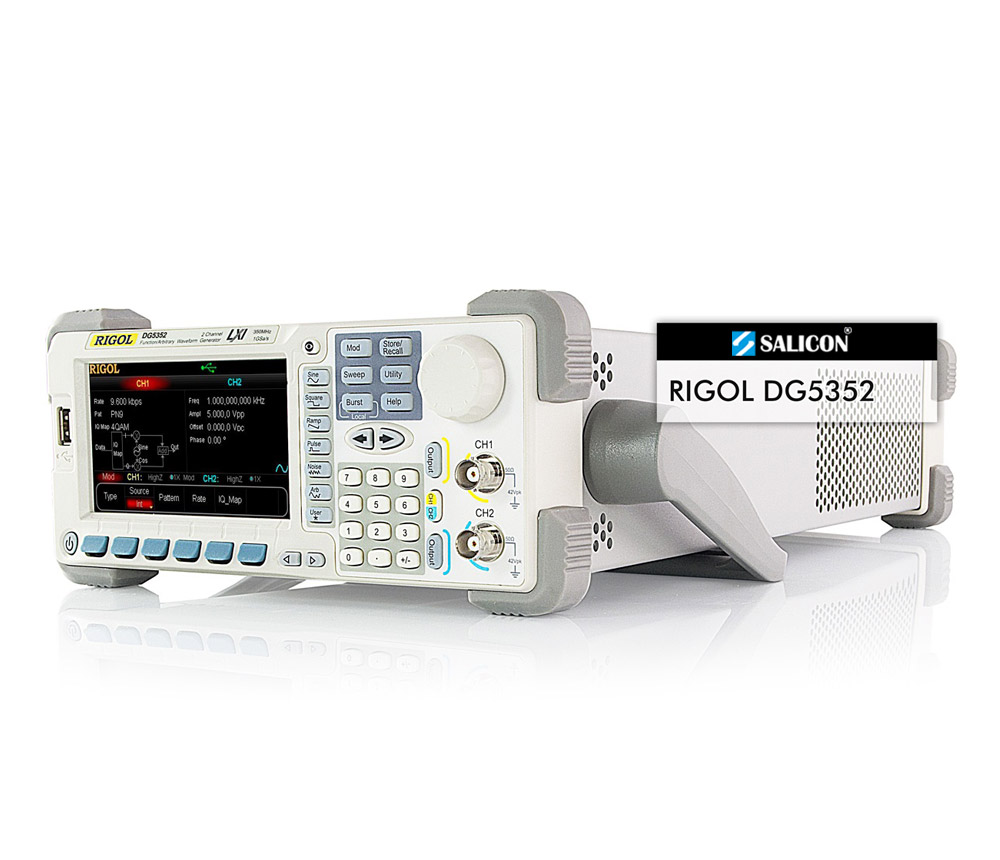

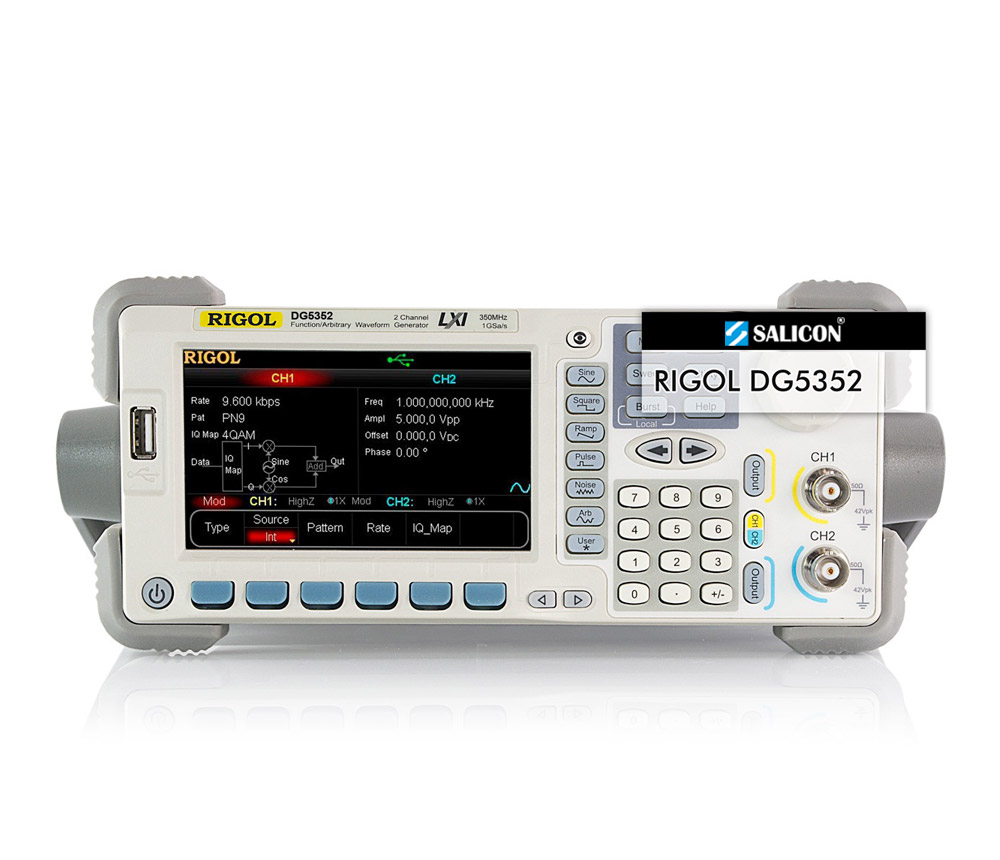

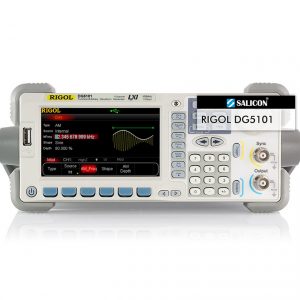

The Rigol DG5352 is a 2 channel Function / Arbitrary Waveform Generator to create high quality signals up to 350 MHz (Sine). Beside the analog output, the device includes an USB-Host- and an USB-device, a RS-232, LAN and a GPIB interface.
The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
| Model |

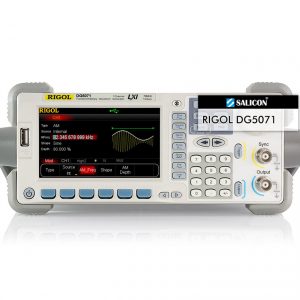

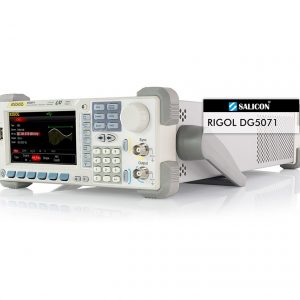

DG5071 |
DG5072 |

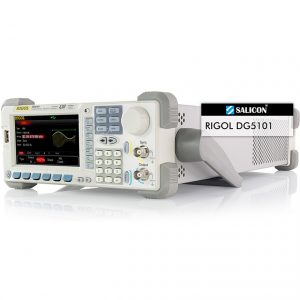

DG5101 |
DG5102 |
DG5251 |

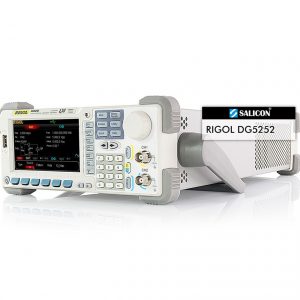

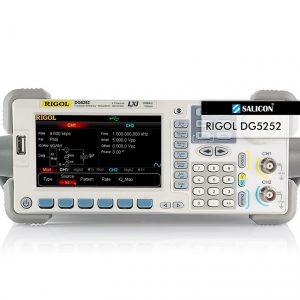

DG5252 |

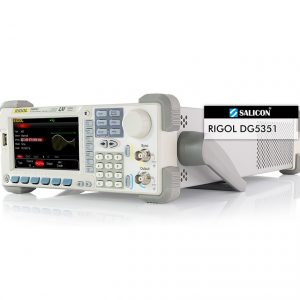

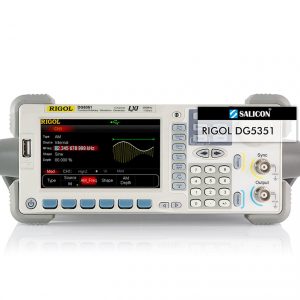

DG5351 |
DG5352 |
| Max. Frequency |
70 MHz |
70 MHz |
100 MHz |
100 MHz |
250 MHz |
250 MHz |
350 MHz |
350 MHz |
| Max. Sample rate |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
| Resolution |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
1 µHz |
| Channels |
1 |
2 |
1 |
2 |
1 |
2 |
1 |
2 |
Specifications
| Generator |
Function / Waveform Generator Rigol DG5352 |
| Display |
4.3″ TFT LCD with 16M true color |
| Resolution |
480 × 272 Pixel |
| Interfaces |

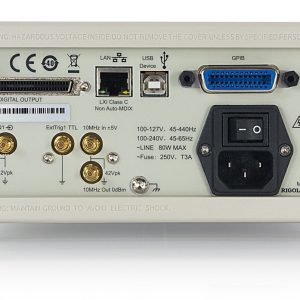

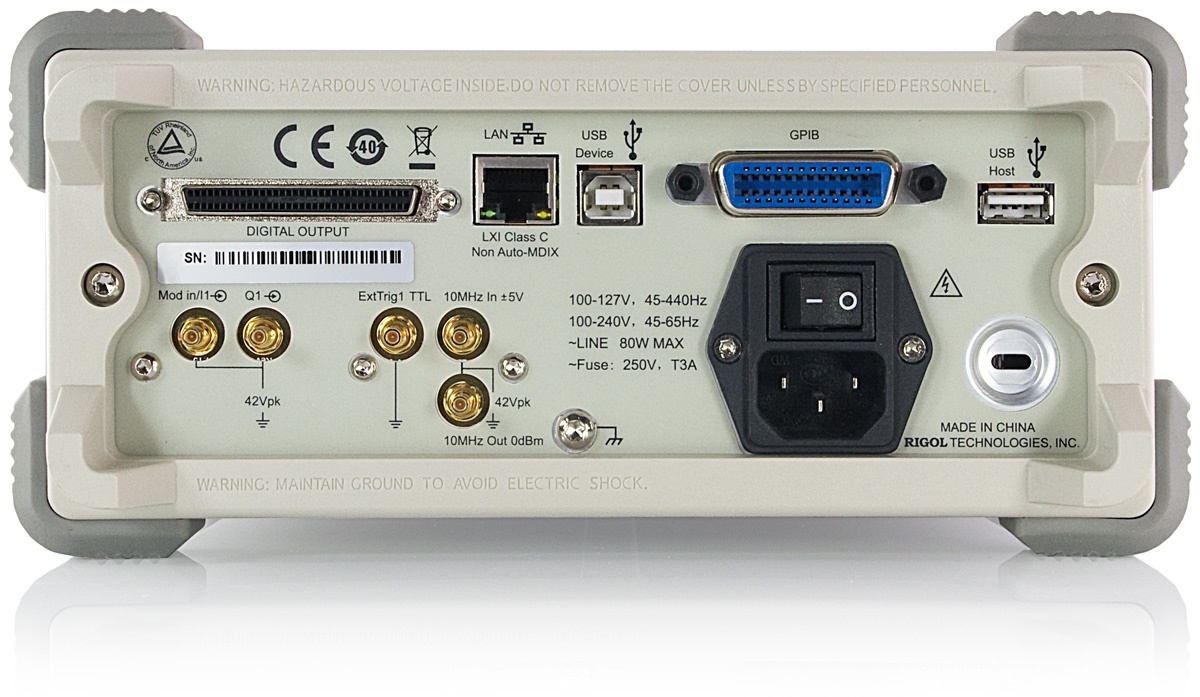

- USB-Host (for USB stick i.e. to save/load waveforms)
- USB for a PC connection
- LAN for network connection
- GPIB (IEE-488, General Purpose Interface Bus)
|

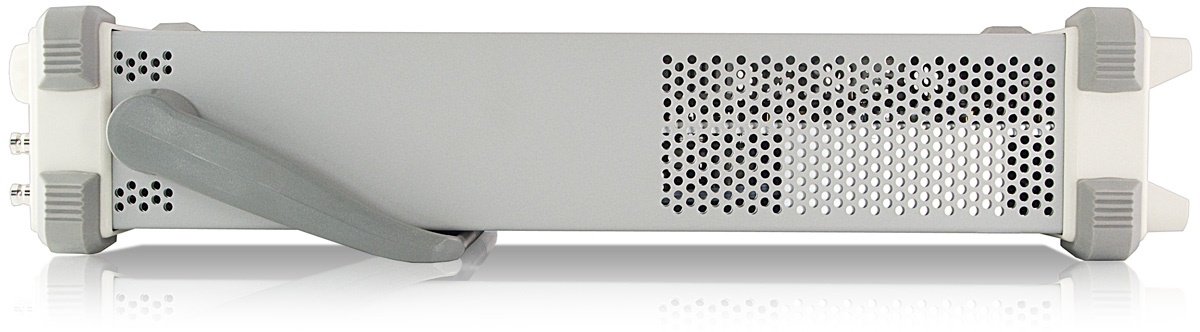

| Dimensions (W × H × D) |
263 mm × 107 mm × 505 mm
(10.35″ × 4.21″ × 19.88″) |
| Weight |
4.3 kg (9.48 lbs) |
| Supported operation systems |
Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit) |
The complete list of technical specifications can be found in chapter “Specification” of the datasheet.
| Function |
Function / Waveform Generator Rigol DG5352 |
| Channels |
2 |
| Signal Output |
Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise |
| Vertical Resolution |
14 bit |
| Amplitudes |
5 mVpp ~ 10 Vpp (50 Ω) |
| DC Offset |
±5 V (50 Ω) |
| Sample Rate |
1 GSa/s |
| Frequency Range Sine |
1 µHz – 350 MHz |
| Frequency Range Rectangle |
1 µHz – 120 MHz |
| Frequency Range Pulse |
1 µHz – 50 MHz |
| Frequency Range Ramp |
1 µHz – 5 MHz |
| Frequency Range Arbitrary |
1 µHz – 50 MHz |
| Frequency Range Noise |
250 MHz (-3db) |
| Resolution |
1 µHz |
