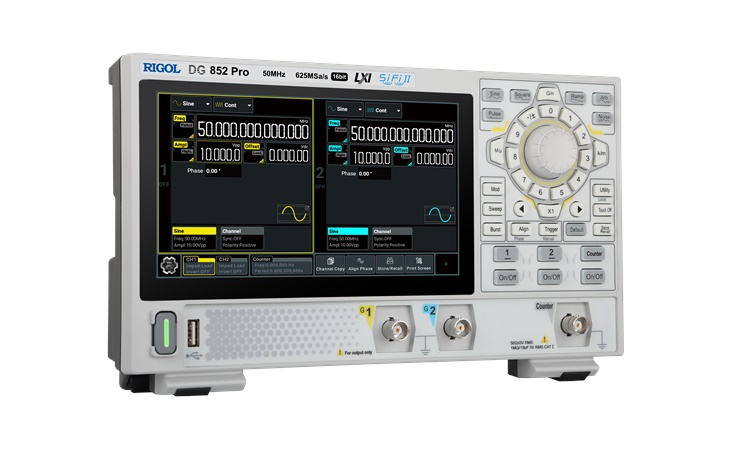

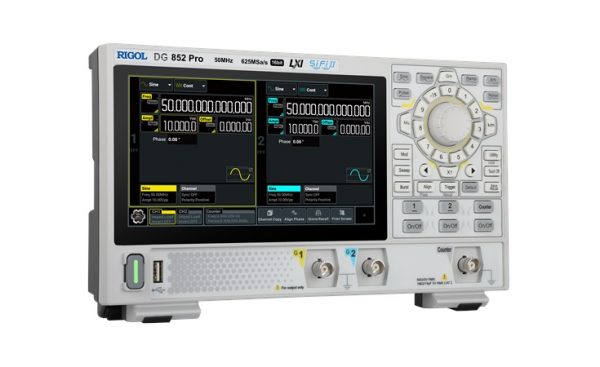

Rigol DG852 Pro

Code: DG852 Pro

2 channel function / arbitrary waveform generator with 1 μHz to 50 MHz bandwidth, 625 MSa/s samplerate, 16 Bit resolution, 2 Mpts memory depth (8 Mpts optional), amplitude range 1 mVpp to 10 Vpp (high impedance), 17,8 cm (7″) touchdisplay.

Now includes NABL Calibration Certificate.

3 years warranty

73,012.00 66,375.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

DG800 Pro series Function/Arbitrary Waveform Generator provides up to 625 MSa/s sample rate and 2 Mpts/CH memory depth (standard). It is a cost-effective function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.

The 7″ touch screen allows a clear view on measurement results. Its provides USB and LAN interfaces (standard) as well as the Web Control function for you to control the instrument directly, bringing smoother interaction.

It is equipped with a Type-C interface for power charge.

In addition, it has a compact size and supports the attachment to a bracket, saving valuable bench space for engineers.

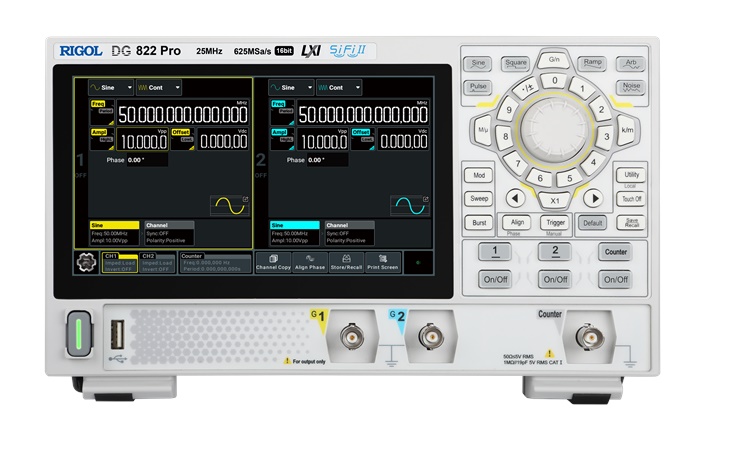

Model DG821 Pro DG822 Pro DG852 Pro
Max. Frequency 25 MHz 25 MHz 50 MHz
Resolution 1 µHz 1 µHz 1 µHz
Sample Rate 625 MSa/s 625 MSa/s 625 MSa/s
Vertical Resolution 16 bits 16 bits 16 bits
Waveform Memory Depth 2 Mpts (standard), 8 Mpts (optional) 2 Mpts (standard), 8 Mpts (optional) 2 Mpts (standard), 8 Mpts (optional)
Max Amplitude 5 Vpp < 10 MHz 5 Vpp < 10 MHz 5 Vpp < 10 MHz
Frequency Counter up to 500 MHz up to 500 MHz up to 500 MHz
Channels 1 2 2

You will find the specifications of the Rigol DG800 Pro series here.
