Description

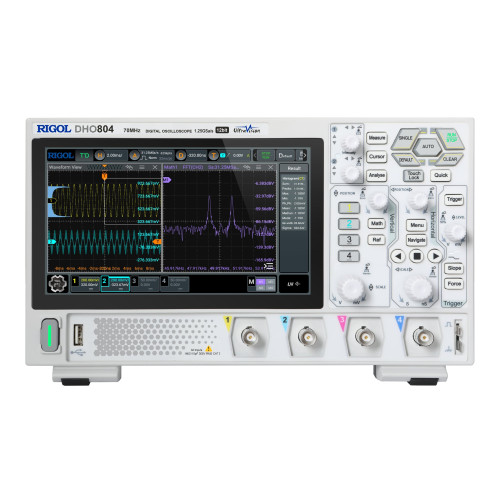

RIGOL DHO804 is a 12-bit high-resolution digital oscilloscope with 70 MHz bandwidth, 1.25GSa/s sample rate and 4 analog channels.
RIGOL DHO800 series features:
– Ultra-low noise floor, purer signal, never miss the small signals
– Up to 12 bits resolution and 4096 vertical digitizing levels (16 times the quantization level of 8 bit, convenient for small signal testing) for all the models of this series
– 1% DC gain accuracy
– Max. analog bandwidth of 70 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model
– Max. real-time sample rate of 1.25 GSa/s
– Max. memory depth of 25 Mpts
– Vertical sensitivity range: 500 μV/div to 10 V/div
– Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
– Digital phosphor display with real-time 256-level intensity grading
– Waveform search and navigation function allows you to debug the signal anomalies faster
– 7″ (1024×600 pixel) capacitive multi-touch screen
– Brand new Flex Knob brings user-friendly experience
– USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
– Type-C power supply interface (12V / 4A, 48W max. when connected to various interfaces, USB storage device and active probes) which requires only a mobile power supply, making field testing possible with a power bank
– Novel and delicate industrial design, easy to operate
– Unique online upgrade
– Supports standard monitor stand installation, which effectively saves desktop space and makes your workbench more spacious
– Dimensions: 265.35 mm (W) x 161.75 mm (H) x 77.38 mm (D)
– Weight (package excluded): 1.78 kg
– Supports RS232/UART, I2C and SPI bus triggers and decodes
| Model | DHO802 | DHO804 | DHO812 | DHO814 | DHO914 | DHO914S | DHO924 | DHO924S |
| Bandwidth | 70 MHz | 100 MHz | 125 MHz | 250 MHz | ||||
| Rise Time | ≤5 ns | ≤3.5 ns | ≤2.8 ns | ≤1.4 ns | ||||
| Channels | 2 Analog + EXT | 4 Analog | 2 Analog + EXT | 4 Analog | 4 Analog + 16 Digital (PLA2216 logic probe optional) | |||
| AWG | No | No | No | No | No | Yes | No | Yes |
The DHO800 series is RIGOL’s new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise.
The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.
Standard Accessories:
1 x European Power Adaptor
1 x Banana-Plug Ground Connecting Cable
2 x PVP3150 150MHz Passive Probe
