Rigol DHO924S 12bit DSO 250MHz, 4ch. with AWG

Description

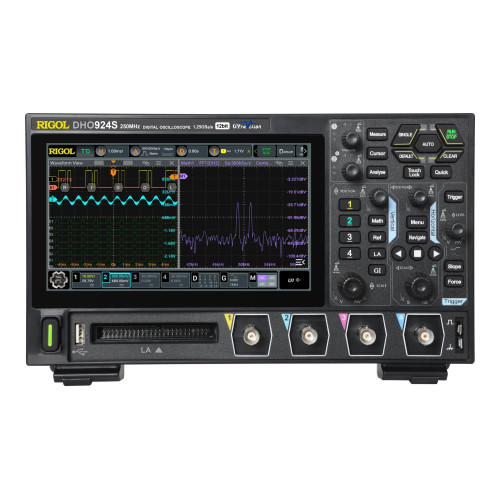

RIGOL DHO924S is a 12-bit high-resolution digital oscilloscope with 250 MHz bandwidth, 1.25GSa/s sample rate, 4 analog channels, a port for 16 digital channels (PLA2216 logic probe optional) and an Arbitrary Waveform Generator (AWG).

RIGOL DHO900 series features:
– Ultra-low noise floor, purer signal, never miss the small signals
– Up to 12 bits resolution and 4096 vertical digitizing levels (16 times the quantization level of 8 bit, convenient for small signal testing) for all the models of this series
– 1% DC gain accuracy
– Max. analog bandwidth of 250 MHz, 4 analog channels
– 16 digital channels (std.), PLA2216 logic probe required to be purchased if needed
– Max. real-time sample rate of 1.25 GSa/s
– Max. memory depth of 50 Mpts
– Vertical sensitivity range: 200 μV/div to 10 V/div
– Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
– Digital phosphor display with real-time 256-level intensity grading
– Integrates the AWG function (standard only for S models), bode plot analysis (standard only for S models) to deal with the loop response analysis of switching power supplies, histogram, digital signal analysis, and so on
– Waveform search and navigation function allows you to debug the signal anomalies faster
– 7″ (1024×600 pixel) capacitive multi-touch screen
– Brand new Flex Knob brings user-friendly experience

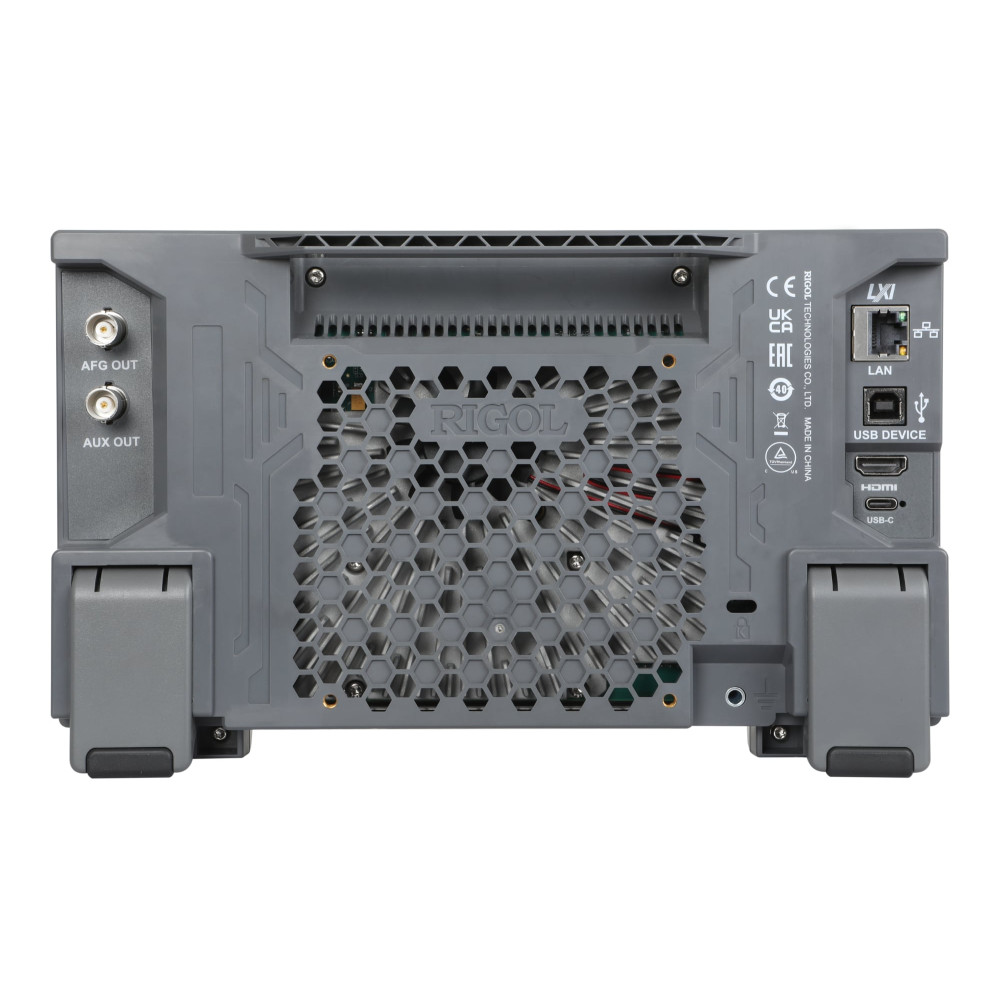

– USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
– Type-C power supply interface (12V / 4A, 48W max. when connected to various interfaces, USB storage device and active probes) which requires only a mobile power supply, making field testing possible with a power bank
– Novel and delicate industrial design, easy to operate
– Unique online upgrade
– Supports standard monitor stand installation, which effectively saves desktop space and makes your workbench more spacious
– Dimensions: 265.35 mm (W) x 161.75 mm (H) x 77.38 mm (D)
– Weight (package excluded): 1.78 kg
– Supports RS232/UART, I2C, SPI, CAN and LIN bus triggers and decodes

The DHO900 series is RIGOL’s new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.
The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the research and development, education, and scientific research fields.

Standard Accessories:
1 x European Power Adaptor
1 x Banana-Plug Ground Connecting Cable
4 x PVP2350 350MHz Passive Probe

Optional Accessories:
PLA2216 Logic Analyzer Probe
