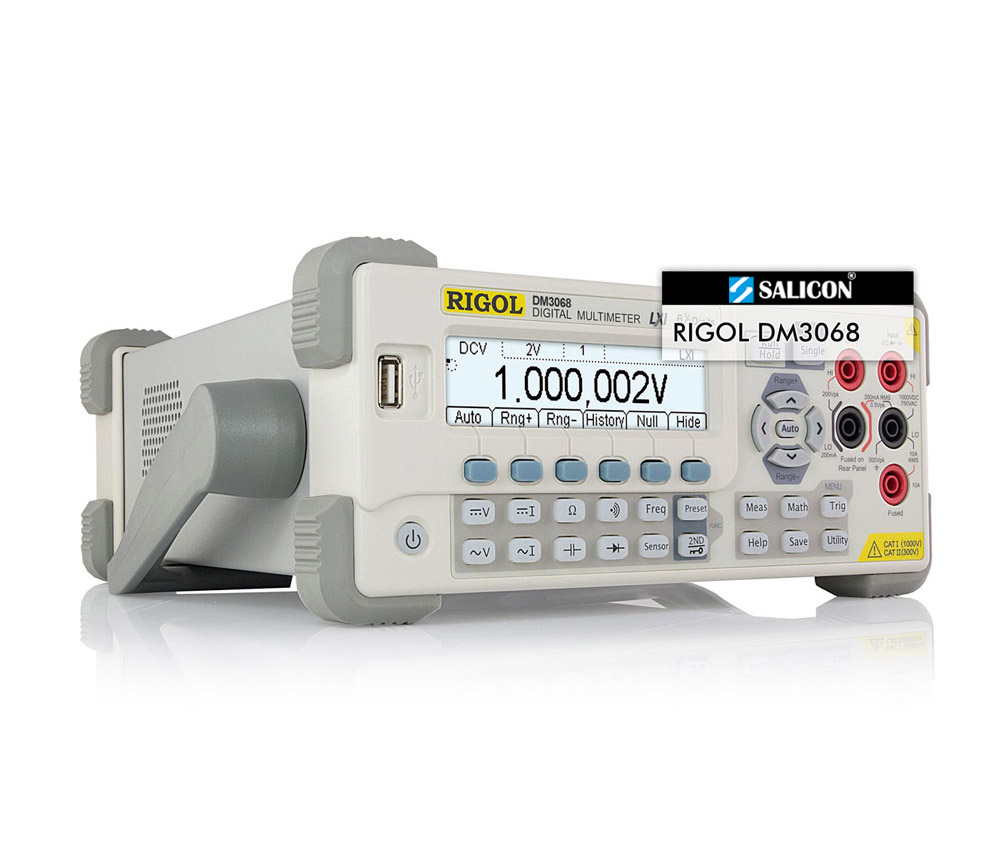

Rigol DM3068 Digital Multimeter

Code: DM3068

6½ digit true RMS precision table multimeter to measure voltages, currents, resistances, capacitances and frequencies.
Now includes NABL Calibration Certificate.
3 years warranty

₹117,811.00 ₹110,448.00

1 in stock (can be backordered)

1 in stock (can be backordered)

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The Rigol DM3068 is a high quality digital benchtop multimeter from the DM3000 series with a very high sampling rate of up to max. 10 kSa/s.

The Rigol multimeter comes with very well designed and easy to use controls which also offer comprehensive ease-of-use functions for all measurement tasks. The menu structure is very intuitive to use. The device helps you obtain precise measurement results in a wide range of applications.

The LCD with its 256×64 pixels is highly legible and provides a good overview of the many individual functions. It has a maximum resolution of 6½ digits (maximum display value 2.400.000).



Model DM3058E DM3058 DM3068
max. Display 5½ Digits 5½ Digits 6½ Digits
max. Reading 240.000 240.000 2.400.000
max. Sampling Rate 120 Sa/s 120 Sa/s 10 kSa/s
Memory Depth 10 groups of 2000 readings 10 groups of 2000 readings 10 groups of 5000 readings
LAN (LXI) / GPIB Interface  X Standard Standard

Special Features

Filesystem and USB Stick Support

You can save measurement results and settings to a USB stick via the integrated USB host port. The device also features 10 internal memory slots for settings.

High Resolution

This model can display values up to a maximum of 2.400.000. This allows even larger measurement values to be displayed with several digits after the decimal point.

Dual Display
For some measurements, a 2nd value can be measured and displayed simultaneously. However, this only applies to valid combinations such as AC voltage and frequency measurement.

Online Help

Every function and every button is explained briefly in the online help. This help can be activated with the Help button or by simply holding a different button.

Sensor Recording

You can use the multimeter to adapt a variety of sensors and to display the corresponding values.

Trend View

Trend development over several minutes can be captured directly, a temperature trend in this example.

Specifications

Measurement Range Accuracy (24h) Resolution
DC Voltage (DCV) 200.0000 mV
2.000000 V
20.00000 V
200.0000 V
1000.000 V		 0.0020%+40dig
0.0015%+10dig
0.0020%+8dig
0.0020%+12dig
0.0020%+6dig		 100 nV
1 µV
10 µV
100 µV
1 mV
AC Voltage (ACV)
3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 20 kHz
20 kHz – 50 kHz
50 kHz – 100 kHz
100 kHz – 300 kHz		 200.0000 mV 1.00%+400dig
0.35%+400dig
0.04%+400dig
0.10%+800dig
0.55%+1600dig
4.00%+10000dig		 100 nV
3 Hz – 5 Hz
5Hz – 10 Hz
10Hz – 20 kHz
20kHz – 50 kHz
50kHz – 100 kHz
100kHz – 300 kHz		 2.000000 V 1.00%+400dig
0.35%+400dig
0.04%+400dig
0.10%+800dig
0.55%+1600dig
4.00%+10000dig		 1 µV
3 Hz – 5 Hz
5Hz – 10 Hz
10Hz – 20 kHz
20kHz – 50 kHz
50kHz – 100 kHz
100kHz – 300 kHz		 20.00000 V 1.00%+600dig
0.35%+600dig
0.04%+800dig
0.10%+1000dig
0.55%+1600dig
4.00%+10000dig		 10 µV
3 Hz – 5 Hz
5Hz – 10 Hz
10Hz – 20 kHz
20kHz – 50 kHz
50kHz – 100 kHz
100kHz – 300 kHz		 200.0000 V 1.00%+400dig
0.35%+400dig
0.04%+400dig
0.10%+800dig
0.55%+1600dig
4.00%+10000dig		 100 µV
3 Hz – 5 Hz
5Hz – 10 Hz
10Hz – 20 kHz
20kHz – 50 kHz
50kHz – 100 kHz
100kHz – 300 kHz		 750.000 V 1.00%+150dig
0.35%+150dig
0.04%+150dig
0.10%+300dig
0.55%+600dig
4.00%+3750dig		 1 mV
DC Current (DCA) 200.0000 µA
2.000000 mA
20.00000 mA
200.0000 mA
2.000000 A
10.00000 A		 0.010%+24dig
0.007%+6dig
0.007%+24dig
0.010%+4dig
0.050%+40dig
0.100%+100dig		 100 pA
1 nA
10 nA
100 nA
1 µA
10 µA
AC Current (ACA)
3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 5 kHz
5 kHz – 10 kHz		 200.0000 µA 1.10%+1200dig
0.35%+1200dig
0.15%+1200dig
0.35%+14000dig		 100 pA
3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 5 kHz
5 kHz – 10 kHz		 2.000000 mA 1.00%+800dig
0.30%+800dig
0.12%+800dig
0.20%+5000dig		 1 nA
3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 5 kHz
5 kHz – 10 kHz		 20.00000 mA 1.10%+1200dig
0.35%+1200dig
0.15%+1200dig
0.35%+14000dig		 10 nA
3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 5 kHz
5 kHz – 10 kHz		 200.0000 mA 1.00%+800dig
0.30%+800dig
0.10%+800dig
0.20%+5000dig		 100 nA
3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 5 kHz
5 kHz – 10 kHz		 2.000000 A 1.10%+1200dig
0.35%+1200dig
0.15%+1200dig
0.35%+14000dig		 1 µA
3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 5 kHz		 10.00000 A 1.10%+800dig
0.35%+800dig
0.15%+800dig		 10 µA
Resistance 200.0000 Ω
2.000000 kΩ
20.00000 kΩ
200.0000 kΩ
1.000000 MΩ
10.00000 MΩ		 0.003%+60dig
0.002%+10dig
0.002%+10dig
0.002%+10dig
0.002%+10dig
0.015%+10dig		 100 µΩ
1 mΩ
10 mΩ
100 mΩ
1 Ω
10 Ω
Capacitance 2.000 nF
20.00 nF
200.0 nF
2.000 µF
20.00 µF
200.0 µF
2.000 mF
20.00 mF
100.0 mF		 2.0%+5dig
1.0%+6dig
1.0%+6dig
1.0%+6dig
1.0%+6dig
1.0%+6dig
1.0%+6dig
1.0%+6dig
2.0%+2dig		 1 pF
10 pF
100 pF
1 nF
10 nF
100 nF
1 µF
10 µF
100 µF
Frequencies 3 Hz – 5 Hz
5 Hz – 10 Hz
10 Hz – 40 Hz
40 Hz – 300 kHz
300 kHz – 1 MHz		 0.07%
0.04%
0.02%
0.005%
0.005%
Function Rigol DM3068 Digital Multimeter
Auto Range
Manual Range
True RMS (TRMS)
Diode test
Transistor test
Continuity test  (fast reaction time with 300 Sa/s!)
Battery test
Low battery indication n/a (mains connection only)
Relatively measuring
Data hold
Auto power-off
Overload protection
Shockproof Protection
Backlight
Max. Reading 2.400.000 (6½ digits)
LCD 90 mm × 25 mm (256x64Pixel)
Sampling rate 10 kSa/s
Memory Depth (volatile) 512k readings (History)
Memory Depth (non volatile)

 10 groups of 5000 readings
5 groups of 5000 readings (Sensordata)

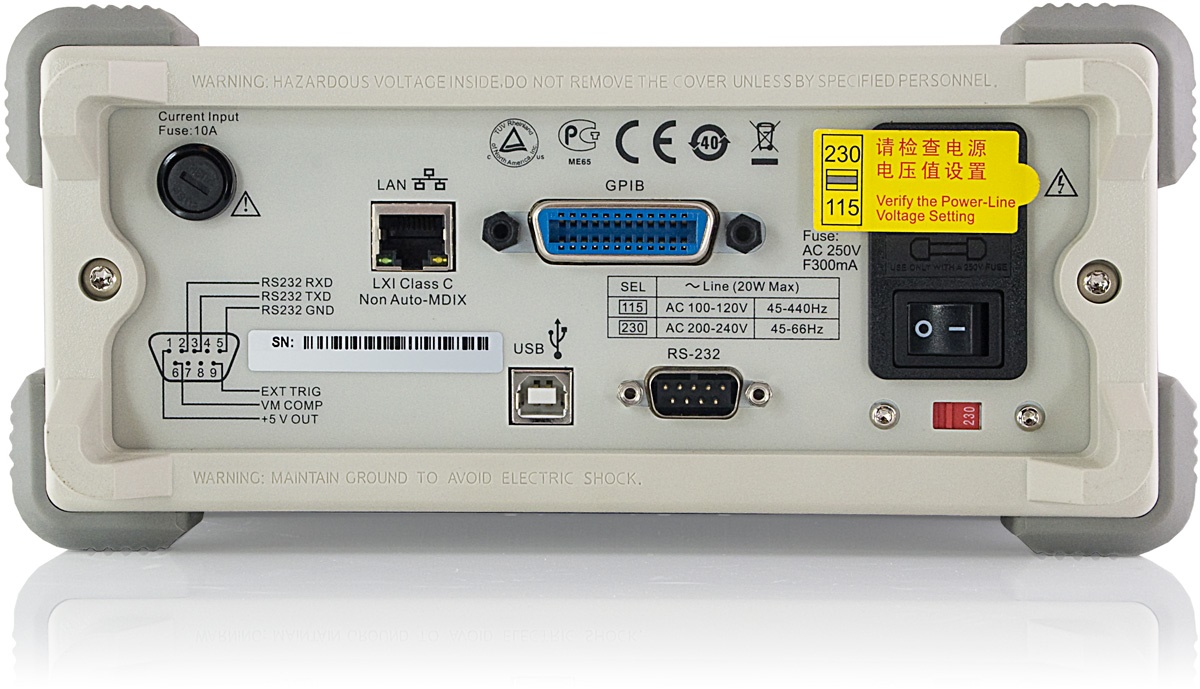

Connections RS-232, USB Device, USB Host, Ext.Trig.,
VM Comp, 10/100MBit LAN, GPIB
Details Rigol DM3068 Digital Multimeter
Power supply 230 V / 50 Hz / 110 V / 60 Hz mains connection
Safety standard CAT II/600 V
Dimensions 290.5 mm × 231.6 mm × 107.0 mm
(11.44″ × 9.12″ × 4.21″)
Weight without accessories / packaging 2500 g
(5.512 lbs)
Weight with accessories / packaging 4465 g
(9.844 lbs)
Warranty 3 years
