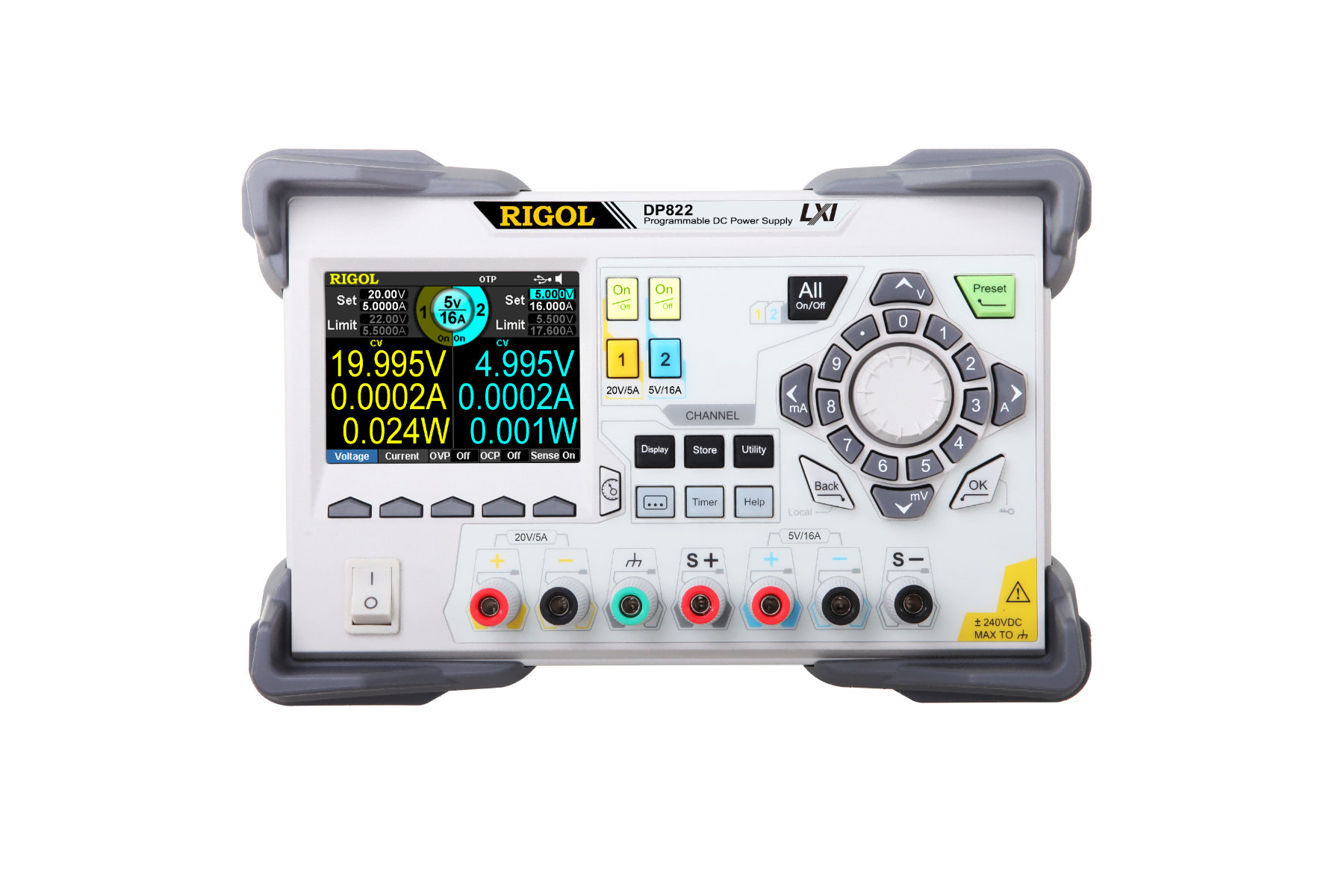

Rigol DP822A

Code: DP822A

High quality programmable DC power supply with two output channels (+20 V / 5 A, + 5 V / 16 A, DC, max 180 W).

Rigol Power Promotion!
Get a 20% discount on the Rigol DP800A power supplies!
(Valid until 31.12.2022)

3 years warranty



₹119,133.00 ₹108,147.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The Rigol DP822A belongs to the Rigol DP800 series and has 2 channels. The first channel can supply a voltage of 0-20V and a current of 0-5A. The second channel can provide a voltage of 0-5V and a current of 0-16A. The lab power supply has USB Host/USB Device, LAN, RS232 and Digital I/O interfaces. These Rigol lab power supplies are good value for money. They are very accurate and have a power up to 180W. The lab power supplies are equipped with a clear display where the built-in voltage, current and power measurements are displayed. The power supplies can also be programmed with the supplied software using a PC.

Models

Model DP822 DP822A
Power 180W 180W
Resolution 10 mV / 10 mA 1 mV / 1 mA
USB Host, USB Device
yes
yes
LAN, RS232, digital I/O –
yes
Colour screen –
yes

We can also supply other models from the DP800 series. If you are interested do not hesitate to contact us.

Specifications

Channels 2
Power 180W
Voltage CH1: 0-20V
CH2: 0-5V
Current CH1: 0-5A
CH2: 0-16A
Resolution 1mV/1mA
Connectivity USB host/device
Display 3.5″ TFT
Dimensions 239 x 157 x 418 mm
Weight 10.5 kg

Accessories

The DP822 comes standard with:

  • Power cord
  • USB cable
  • Spare fuses
  • Short circuit equipment

Special Features

Clearly Arranged Display

All important data such as voltage, current, power, and limit values can easily be displayed on the display with a diagonal size of 8.9 cm (3.5″) and a resolution of 320×240 pixels.

Output Monitoring

The monitor can monitor the current output state of the instrument. When the user-defined monitor condition is met, the instrument executes the corresponding operation according to the setting in “Stop Mode”, like showing a warning, shut off the output or produce a beep sound.

Display Signal Curves

Changes in the measurement values and settings can be presented very well and in real time using the integrated signal curve display. This makes it possible to detect things like current draw peaks, for example when the current limit is adjusted.

Programmable Timer

The voltage and current settings can be changed automatically with a timer control. Up to 100 settings can be stored for this purpose, and then activated one after another for variable intervals (specified in seconds).

Output Analysis

The analyzer can analyze the file recorded and provides the analysis results, including the number of groups, median, mode as well as the average, VAR, range, minimum, maximum and mean deviation of the voltage, current or power of different channel.

Trigger Output

The rear panel of DP800A provides a digital I/O interface (as shown below) which supports trigger input and trigger output. The 4 data lines are mutually independent and can be used as trigger input line or trigger output line separately.

Excellent connectivity and remote control via SCPI / LabView

The Rigol DP821 can be controlled remotely with SCPI commands through a variety of interfaces. The following interfaces are available:

USB
LAN
GPIB (optional)

Control of the device can be integrated into your own applications, or by using LabView via these interfaces.

Accessories

Downloads

Datasheet

Rigol DP800(A) Datasheet

Language: English
File Size: 2.74 MiB
Release Date: 27.12.2018

Driver

DP800 IVI Driver Download

File Size: 488.10 KiB
Release Date: 27.12.2018

Manual

Rigol DP800(A) Manual

Language: English
Version: UGH04109-1110
File Size: 2.09 MiB
Release Date: 01.06.2016

Rigol DP800(A) Quickguide

Language: English
Version: QGH03104-1110
File Size: 1.81 MiB
Release Date: 01.08.2013

Rigol DP800(A) SCPI Programming Guide

Language: English
Version: PGH03108-1110
File Size: 3.80 MiB
Release Date: 01.12.2015

Rigol How To: Instrument Communication VISA / USB

Language: English
File Size: 435.80 KiB
Release Date: 04.08.2010

Rigol Software Installation and Use

Language: English
File Size: 551.36 KiB
Release Date: 10.04.2014

Rigol: Active Loads and the DP800 and DP1000 Series (Application Note)

Language: English
File Size: 411.29 KiB
Release Date: 19.12.2013

Software

NI-VISA Runtime Engine 15.0

Version: 15.0
File Size: 83.96 MiB
Release Date: 08.03.2015
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)

Rigol DP811A Software

Release Date: 27.12.2018

Rigol DP831 Software

Release Date: 27.12.2018

Rigol Ultra Sigma Software Download

Language: English
Version: 00.01.06.01
File Size: 521.91 MiB
Release Date: 30.10.2015
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Ultrapower Download

File Size: 3.15 MiB
Release Date: 27.12.2018

Specifications

Specifications

Channels 2
Power 180W
Voltage CH1: 0-20V
CH2: 0-5V
Current CH1: 0-5A
CH2: 0-16A
Resolution 1mV/1mA
Connectivity USB host/device
Display 3.5″ TFT
Dimensions 239 x 157 x 418 mm
Weight 10.5 kg
